NG125L/D 25-4 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18860 NG125L/D 25-4 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18860
- EAN / GTIN
- 3303430188605
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Power loss
- 2.7 W
- Built-in depth
- 47 mm
- Release characteristic
- D
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 25 A
- Rated voltage
- 415 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430188605
- SAP 1000028768
- Code 8210074
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Trip unit TM16D, ComPacT NSX100, 4 poles 4D (neutral fully protected), thermal magnetic protections, 16A rating C104TM016
Schneider Electric
NG125L/B 80-1 Modular Power Switch
18749
Schneider Electric
Cable 2XHE10, 3M, 0.32
TSXCDP303
Schneider Electric
Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 25A, 220V DC low consumption coil, snap-in terminals LC1D25AML
Schneider Electric

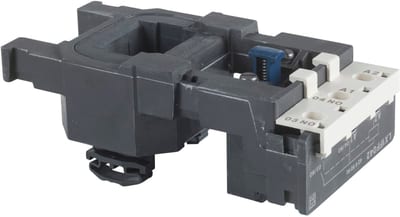

Schneider Electric TeSys F - contactor coil - LX1FF - 24 V AC 50 Hz LX1FF024
Schneider Electric

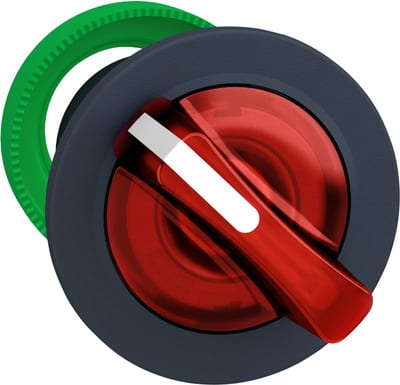

Selector switch flush for LED 2 pos red (ZB5FK1443)
Schneider Electric
Schneider Electric SMX 316L stainless monobloc enclosure, H2000XW1000XD400MM, Scotch Brite® finish. NSYSMX201040H
Schneider Electric

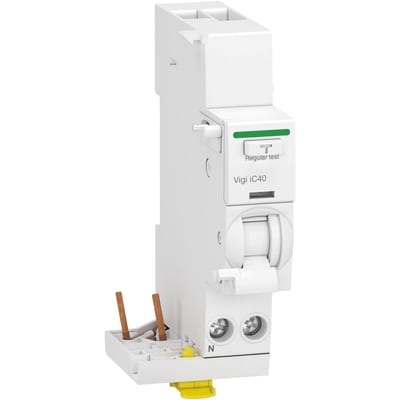

Schneider Electric Add-on residual current device, ACTI9 Vigi IC40, 1P+N, 25A, A type, instantaneous, 300MA, 230VAC A9Y81625
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18860?
- 18860 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18860.
- What is the HS code for 18860?
- The customs tariff (HS) code for 18860 is 8536.20.
- Who manufactures 18860?
- 18860 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18860?
- Yes — the 18860 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18860?
- The minimum order quantity is 1.
- Is 18860 available?
- Yes — 18860 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
