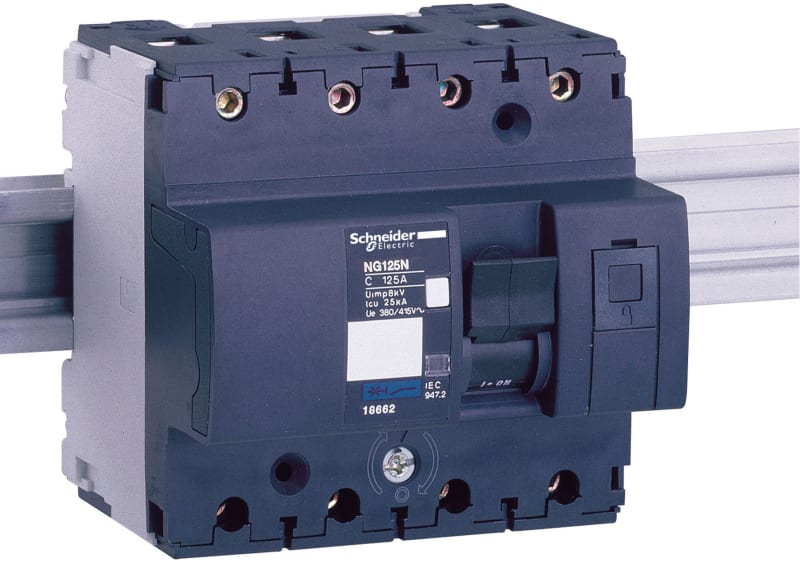

NG125L/C 40-4 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18815 NG125L/C 40-4 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18815
- EAN / GTIN
- 3303430188155
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Power loss
- 3.8 W
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 40 A
- Rated voltage
- 415 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430188155
- SAP 1000017110
- Code 8488492
Product Documentation
More from Schneider Electric
Schneider Electric

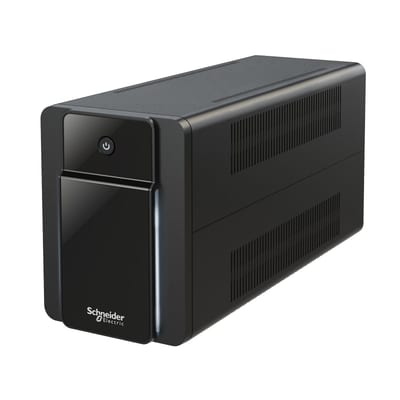

Schneider Electric SE Back-UPS, 750VA, Tower, 230V, 4 x IEC C13 outlets, AVR BXS750MI
Schneider Electric

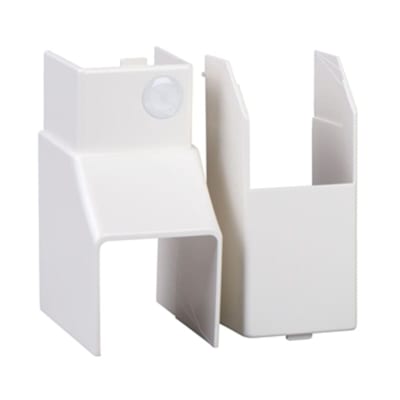

Schneider Electric Inner Corner Tir+ IH 80/60 White
5427075
Schneider Electric

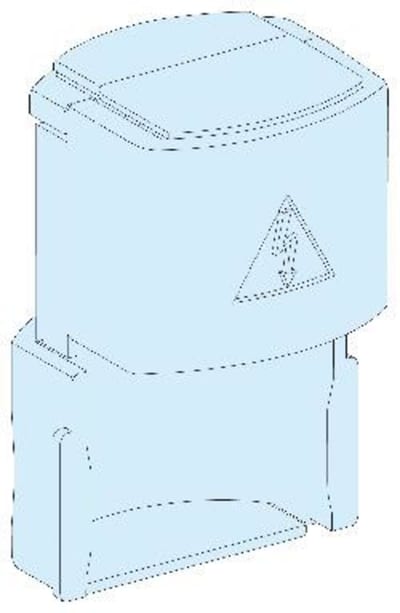

Cover Linergy FM PRISMASET-4
LVS01202
Schneider Electric

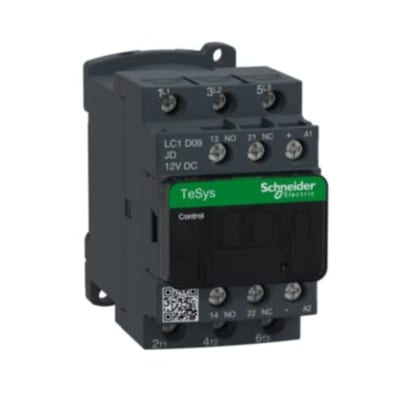

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, ≤440V, 9A, 12V DC coil, screw clamp terminals LC1D09JD
Schneider Electric

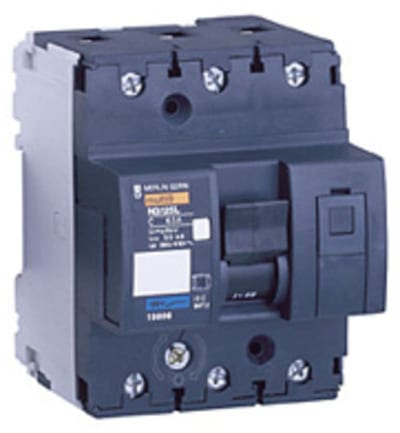

NG125L/B 63-3 Modular Power Switch
18766
Schneider Electric

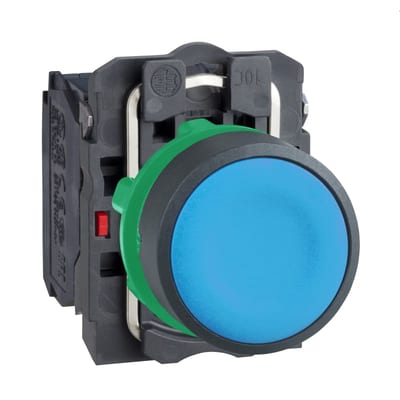

Schneider Electric Push button, Harmony XB5, blue flush complete pushbutton 22mm spring return 1NO+1NC unmarked XB5AA65
