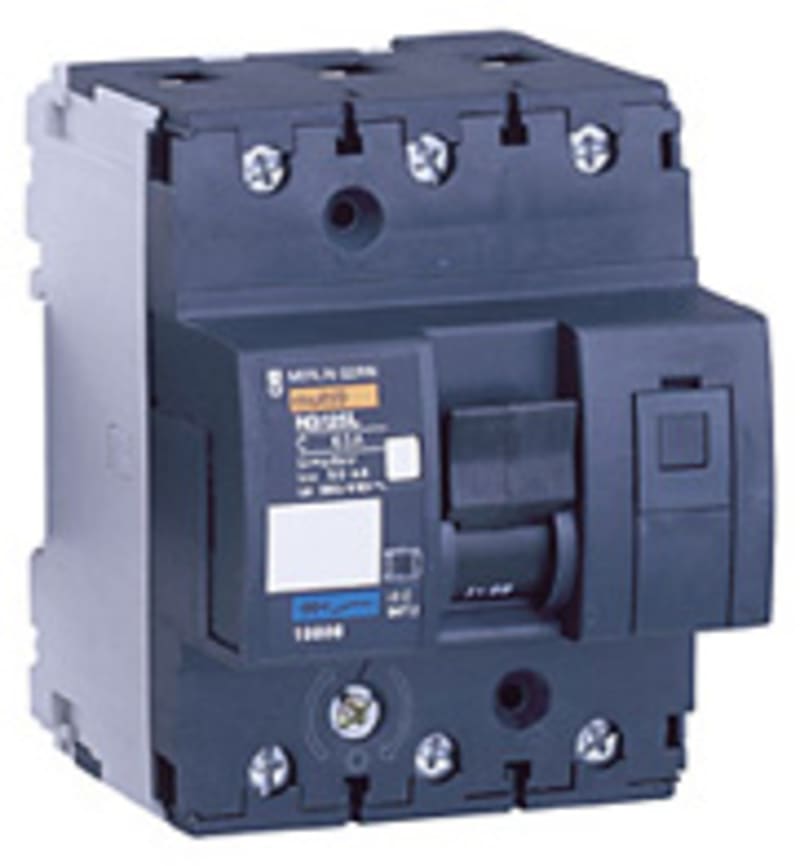

NG125L/B 63-3 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18766 NG125L/B 63-3 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18766
- EAN / GTIN
- 3303430187660
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Power loss
- 4 W
- Built-in depth
- 47 mm
- Release characteristic
- B
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 63 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187660
- SAP 1000082036
- Code 8828485
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Push button, Harmony XB5, blue flush complete pushbutton 22mm spring return 1NO+1NC unmarked XB5AA65
Schneider Electric
Adr. module 2 in/out EME216-IN
FFS06720316
Schneider Electric
Schneider Electric MN undervoltage release, standard, Masterpact MTZ2/3 drawout, 200/250 VAC 50/60 Hz, 200/250 VDC LV848504
Schneider Electric
Schneider Electric Remote control eXLhoist standard, 6 motion push buttons, 2 auxiliary push buttons, display ZART8D
Schneider Electric
EMC Additional Filter IP20 160A
VW3A4707
Schneider Electric
Schneider Electric Floor standing enclosure polyester vers.PLA completely sealed 500X1000X320 IP65 NSYPLA5103G
Schneider Electric
Schneider Electric Motor circuit breaker,TeSys Deca frame 2,3P,20-25A,thermal magnetic,push button,spring terminals GV2ME223
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100S AC/DC, 70KA/415VAC, 2 poles, TMD trip unit 40A C10S2TM040
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18766?
- 18766 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18766.
- What is the HS code for 18766?
- The customs tariff (HS) code for 18766 is 8536.20.
- Who manufactures 18766?
- 18766 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18766?
- Yes — the 18766 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18766?
- The minimum order quantity is 1.
- Is 18766 available?
- Yes — 18766 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
