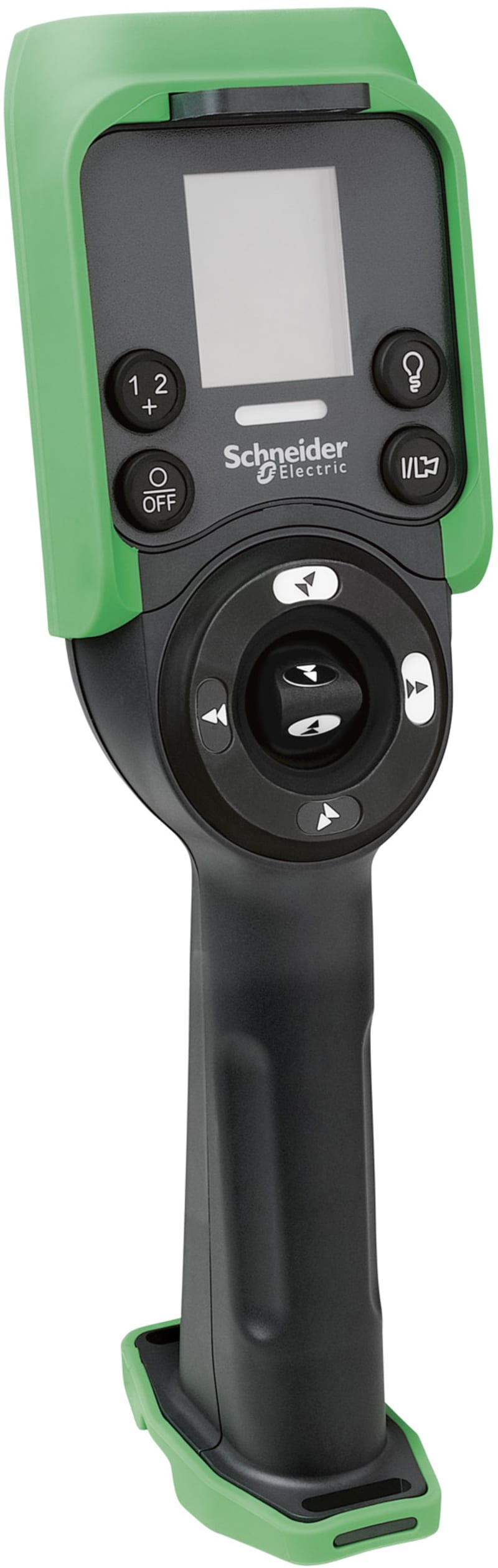

Schneider Electric Remote control eXLhoist standard, 6 motion push buttons, 2 auxiliary push buttons, display ZART8D
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZART8D REMOTE DISP, 2 AUX, PUSHBUTTON.
Technical Specifications
- Manufacturer part number (MPN)
- ZART8D
- EAN / GTIN
- 3606480610363
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Range of product
- Harmony eXLhoist
- Product or component type
- Hand-held remote control
- Device short name
- ZART
- Control button type
- 6 configurable motion push-button; 2 configurable auxiliary push-button
- Material
- Enclosure: PC (polycarbonate); Enclosure: PBT (polybutylene terephthalate); Cover: PP (polypropylene); Protective cover: EPDM rubber
- Function available
- Accelerometer function; Vibrator function
- Display type
- LCD display 34 x 42 mm
- operating distance
- 50 m
- Mechanical robustness
- Free fall resistance 4.5 m conforming to IEC 60068-2-27
- Communication network type
- Wireless: bluetooth low energy
- Transmission frequency
- 2.4 GHz
- Maximum sensing distance
- 100 m in free field
- Response time
- < 300 ms at full duplex
- Charging time
- 900 s
- Autonomy
- 30 h
- Mechanical durability
- 5000000 cycles
- service life
- 5 year(s)
- Width
- 100 mm
- Height
- 340 mm
- Depth
- 90 mm
- Product weight
- 0.65 kg
- Radio agreement
- ANATEL; ICASA; SRRC; FCC; ARIB; RSS
- IP degree of protection
- IP65
- NEMA degree of protection
- NEMA 4
- Ambient air temperature for operation
- -20…60 °C
- Ambient air temperature for storage
- -20…45 °C
- Operating altitude
- 0...2000 m
- Storage altitude
- 0…3000 m
- Vibration resistance
- 0.075 mm conforming to IEC 60068-2-6 (f = 10…55 Hz)
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Relative humidity
- 0…95 % at -20…60 °C operating
- Product certifications
- CE; UL; JIS; EAC; C-Tick; CSA; KC
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 4
- Country of origin
- FR
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8526.92
Cross References
- EAN 3606480610363
- SAP 1000648341
- Code 8196462
Product Documentation
