NG125L/C 10-3 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

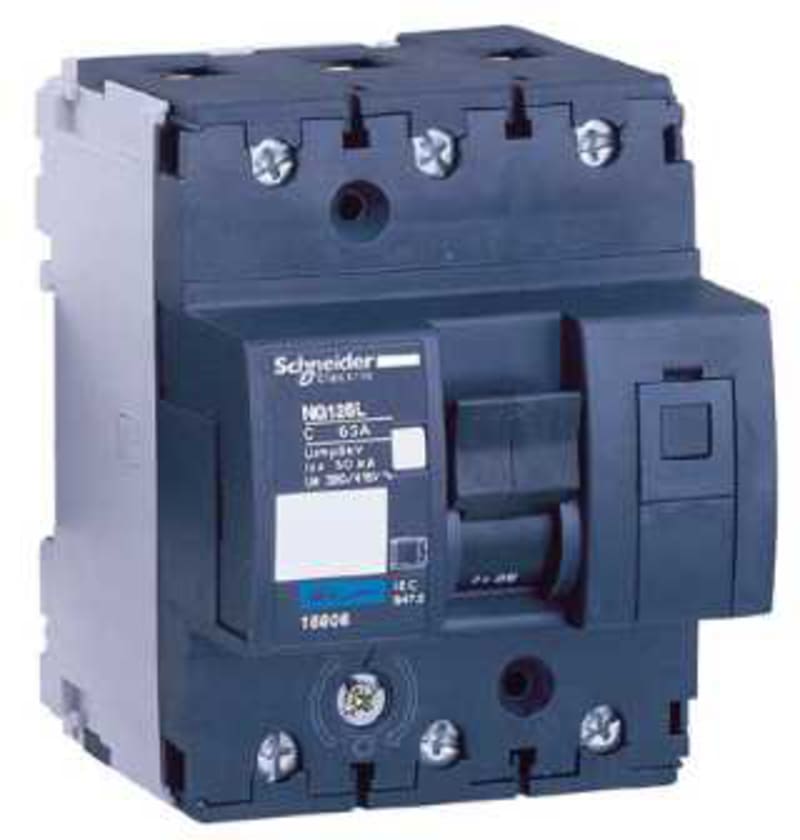

Schneider Electric 18799 NG125L/C 10-3 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18799
- EAN / GTIN
- 3303430187998
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Power loss
- 1.7 W
- Built-in depth
- 47 mm
- Release characteristic
- C
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 10 A
- Rated voltage
- 415 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187998
- SAP 1000058979
- Code 8544899
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric shunt trip (spring) MX - 24 V AC 50/60Hz - 24 V DC LV426841
Schneider Electric
Schneider Electric TransferPacT Active Automatic, 320A, 400V, 3P, LCD, frame 630A TA63D3L3204TPE
Schneider Electric
Schneider Electric Illuminated SWITCH-5 Function keys with multi-color LEDs backlit HMIZRA1
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100M AC/DC, 40KA/240VAC, 1 pole, TMD trip unit 20A C10M1TM020
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 4 poles, MicroLogic 6.2E trip unit 100A C25V46E100
Schneider Electric

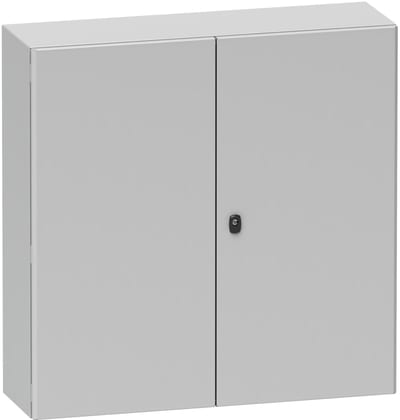

WALL-Mount Cabinet S3D without PL 12X10X3 (NSYS3D121030D)
Schneider Electric

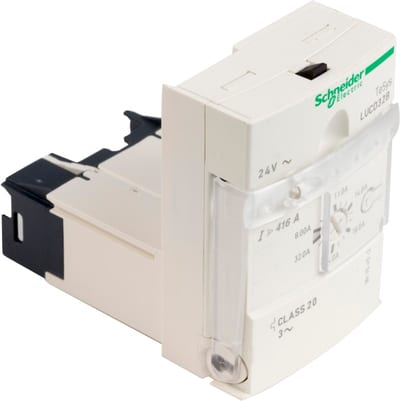

Schneider Electric Advanced control unit, TeSys U, 8-32A, 3P motors, protection & diagnostic, class 20, coil 24V AC LUCD32B
Schneider Electric

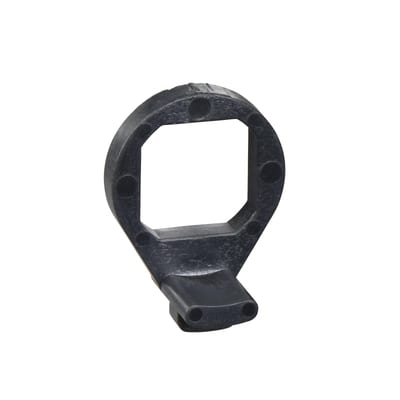

2 Ronis 2 keys + kit MTZ2/3 spare
