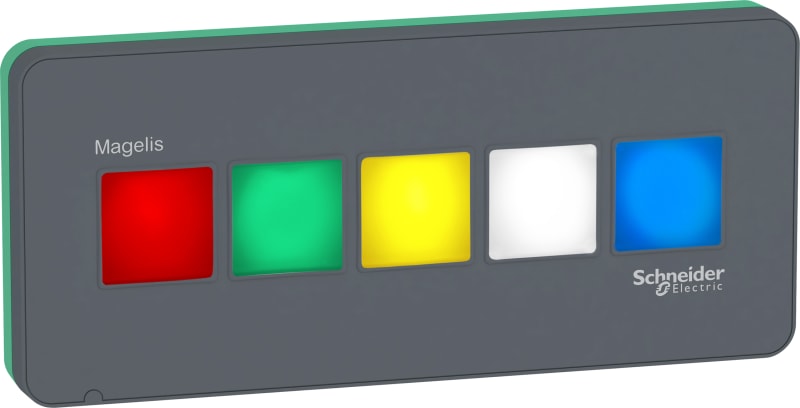

Schneider Electric Illuminated SWITCH-5 Function keys with multi-color LEDs backlit HMIZRA1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric HMIZRA1 Push-button. module for HMI. USB, 1m.
Technical Specifications
- Manufacturer part number (MPN)
- HMIZRA1
- EAN / GTIN
- 3595864167152
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony HMIZ
- Product or component type
- Illuminated USB switch
- Product compatibility
- XBTGC - controller panel; XBTGT2... - advanced touch panel; HMISTO - touch panel; HMISCU - touch panel; XBTGT6... - advanced touch panel; HMIGTW - advanced touch panel; XBTGK - graphic display; XBTGT4... - advanced touch panel; XBTGT5... - advanced touch panel; XBTGT7... - advanced touch panel; HMISTU - touch panel; HMIGTO - advanced touch panel; HMIPSP - S-Panel PC; HMIPSO - S-Panel PC; HMIBMU - Modular Box PC; HMIBMP - Modular Box PC; HMIBMO - Modular Box PC; HMIBMI - Modular Box PC
- Device application
- Food and beverage; Industrial machines
- Provided equipment
- 1 x user manual; 1 x USB type B cable clamp; 1 x fixing nut; 1 x tightening wrench; 1 x anti-rotation tee; 1 x gasket; 1 x insert label; 1 x USB cable type A/B (with 1 m
- Software designation
- Vijeo Designer version >= V6.1 SP2
- Connector type
- USB type B
- Control type
- 5 push-buttons with multi-colour backlit LED
- Colour of cover
- Front dark grey cover
- [Us] rated supply voltage
- 5 V DC, connector type: USB 2.0
- Supply voltage limits
- 4.75…5.25 V DC
- Power consumption in W
- 2 W
- Shock resistance
- 147 m/s² for 3 chocks in each direction X, Y and Z conforming to IEC 61131-2
- Electromagnetic compatibility
- Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2; Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4; Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) conforming to IEC 61000-4-4
- Mounting location
- Flat surface
- Quantity per set
- 1 piece
- Height
- 54 mm
- Width
- 122 mm
- Depth
- 28 mm
- Product weight
- 0.11 kg
- Ambient air temperature for storage
- -20…60 °C
- Relative humidity
- 10…90 % at 0…55 °C non-condensing
- Pollution degree
- 2
- Environmental characteristic
- Corrosive gas free
- Operating altitude
- <= 2000 m
- Vibration resistance
- 3.5 mm (f= 5…9 Hz) conforming to IEC 61131-2
- IP degree of protection
- IP65 (front panel (in enclosure))
- NEMA degree of protection
- NEMA 4X for indoor installation installation; NEMA 13 for enclosed outdoor installation
- Standards
- CSA C22.2 No 142; UL 508; CSA C22.2 No 213; EN 61000-6-4; ANSI/ISA 12.12.01; EN 61000-6-2; EMC 2004/108/EC
- Product certifications
- GOST; UL/cUL listed; C-Tick; CE
- Level or class
- Class I Division 2 Groups A/B/C/D
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 32
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3595864167152
- SAP 1000347645
- Code 81288287
