NG125L/B 16-4 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

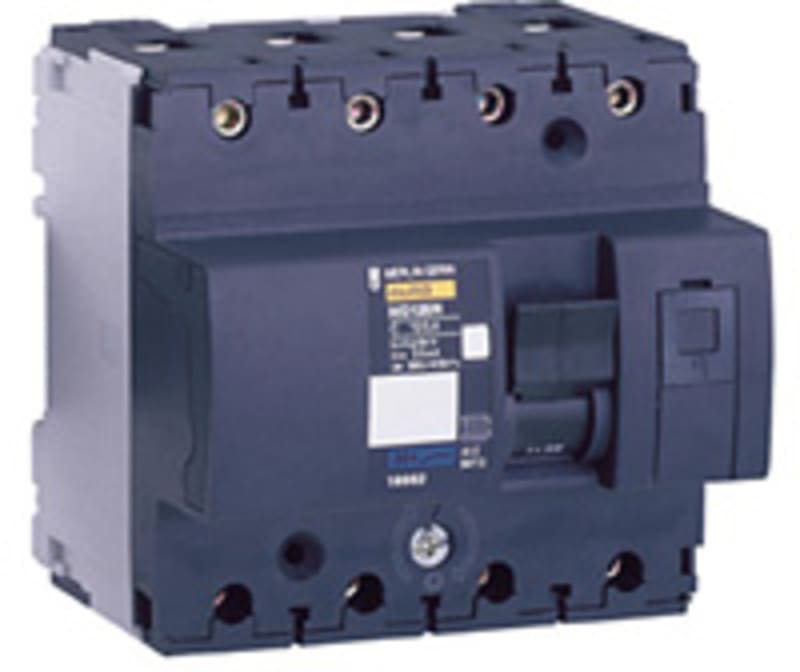

Schneider Electric 18769 NG125L/B 16-4 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18769
- EAN / GTIN
- 3303430187691
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Power loss
- 2.4 W
- Built-in depth
- 47 mm
- Release characteristic
- B
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 16 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187691
- SAP 1000058140
- Code 8543567
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric VW3A9112 IP31 Cable Entry Box for Altivar Drives
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX630R, 200KA/415VAC, 4 poles, MicroLogic 6.3E trip unit 630A C63R46E630
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63H, 70KA/415VAC, 3 poles, TMD trip unit 63A, EverLink lugs C11H3TM063L
Schneider Electric

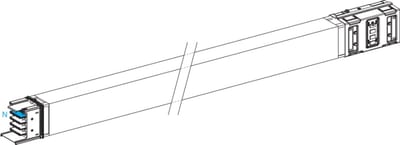

Schneider Electric Horizontal transport length, Canalis KSA800, aluminium, 800A, fixed length 3M, 3L+N+PE, white RAL9001 KSA800ET430
Schneider Electric

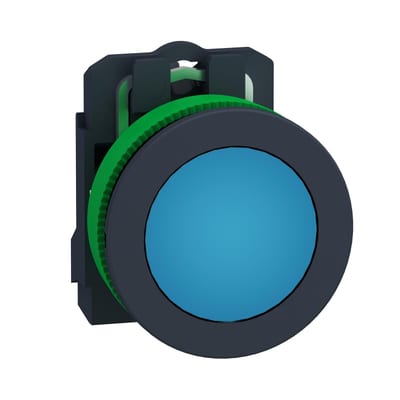

Schneider Electric Pilot light, Harmony XB5, grey plastic, blue flush mounted, 30mm, universal LED, plain lens, 230...240V AC XB5FVM6
Schneider Electric

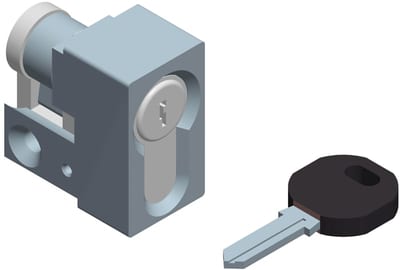

Schneider Electric Cylindrical barrel reinforced keylock NSYINKR2
Schneider Electric

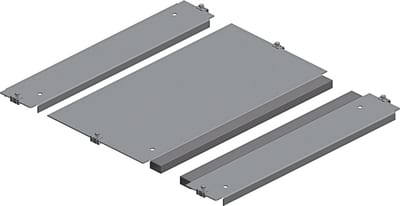

Gland Plate 700X800 SF
NSYEC781
Schneider Electric

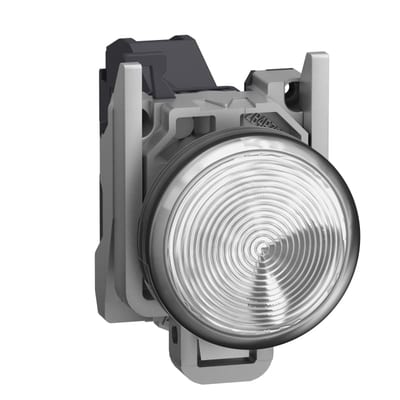

Schneider Electric Complete pilot light, Harmony XB4 - ATEX D, white, integral LED, 24...254V XB4BVBM1GEX
