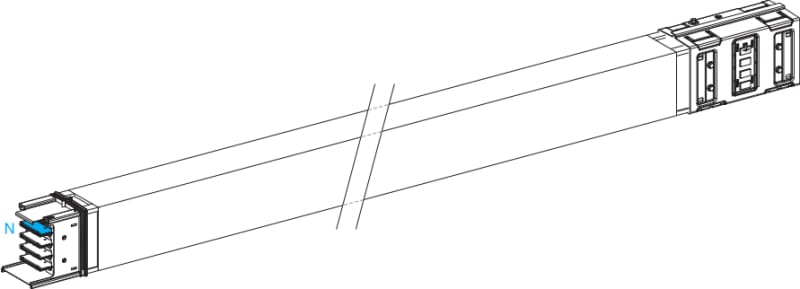

Schneider Electric Horizontal transport length, Canalis KSA800, aluminium, 800A, fixed length 3M, 3L+N+PE, white RAL9001 KSA800ET430
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSA800ET430 busway 800A 3M, no tap-off outlet.
Technical Specifications
- Manufacturer part number (MPN)
- KSA800ET430
- EAN / GTIN
- 3606480005565
- Sales unit
- pcs
- Rated current
- 800 A
- Range
- Canalis
- Device short name
- KSA
- Offer type
- Advanced
- Product or component type
- Busbar trunking
- Busbar description
- Horizontal transport length
- Product compatibility
- Canalis KSA busbar trunking 500…1000 A
- Conductors material
- Aluminium
- Busbar trunking polarity
- 3L + N + PE
- Number of tap-off outlets
- 0
- [Ie] rated operational current
- 800 A at 35 °C
- IP degree of protection
- IP55 conforming to IEC 60529
- mounting mode
- By screws
- Dimension type
- Fix
- Length
- 3 m
- Colour
- White (RAL 9001)
- Number of poles
- 4
- Neutral position
- Up
- Mounting position
- Horizontal
- [Ue] rated operational voltage
- 230...690 V
- Network frequency
- 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ui] rated insulation voltage
- 690 V
- [Icw] rated short-time withstand current
- 37.4 kA
- [Ipk] rated peak withstand current
- 78.7 kA
- Electrical connection
- Lubricated sliding contact
- Width
- 113 mm
- Height
- 146 mm
- Pro
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480005565
- SAP 1200721789
- Code 83832394
Product Documentation
