NG125L/B 10-3 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

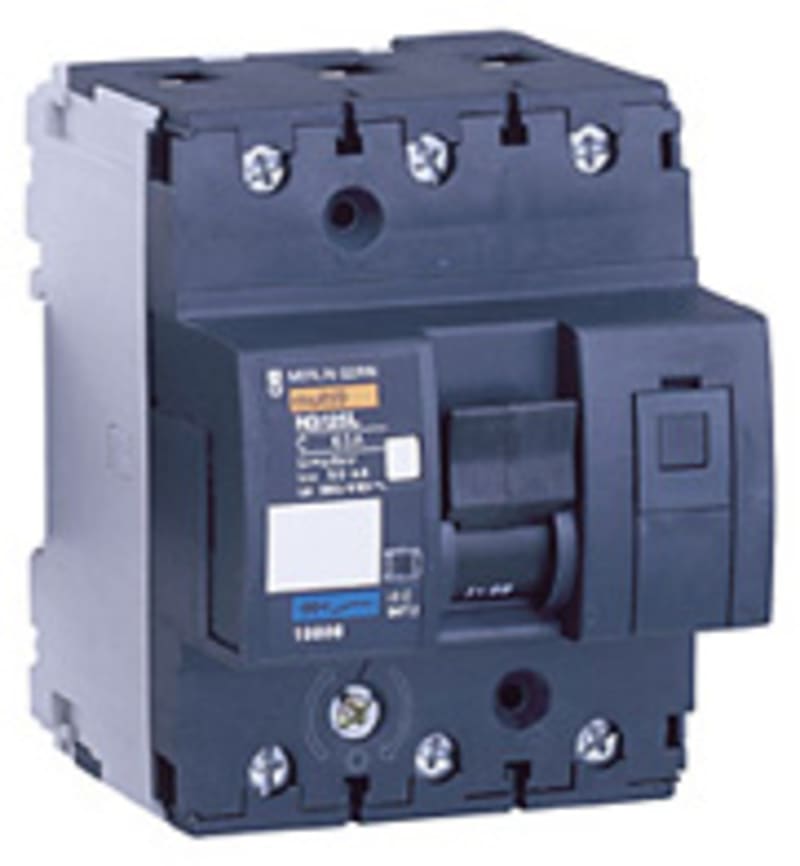

Schneider Electric 18759 NG125L/B 10-3 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18759
- EAN / GTIN
- 3303430187592
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Power loss
- 1.7 W
- Built-in depth
- 47 mm
- Release characteristic
- B
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 10 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 1–35 mm²
- Connectable conductor cross section solid-core
- 1.5–50 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430187592
- SAP 1000000442
- Code 815161
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800N, 50KA at 415VAC, 800A, 4P, drawout, manually operated, without control unit C080N4WM
Schneider Electric
Schneider Electric flush mounted selector switch head key 8D1 3 pos stay put ZB5FG5D
Schneider Electric

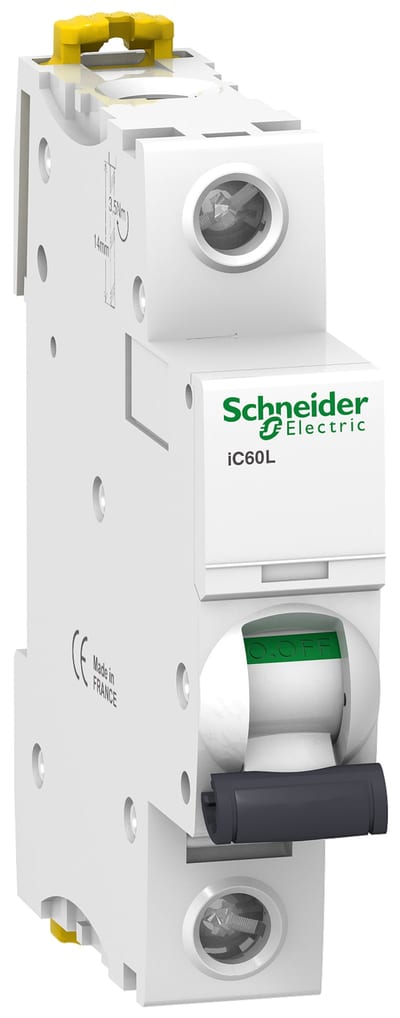

Schneider Electric A9F92110 ACTI9 IC60L Miniature Circuit Breaker 1P 10 A, Curve Z
Schneider Electric
Schneider Electric APC Replacement Battery Cartridge #3 with 2 Year Warranty RBC3
Schneider Electric
Schneider Electric ZA2BG2 Key Selector Switch Head, 2 Positions, Withdrawal Left
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400HB2, 100KA/690VAC, 3 poles, MicroLogic 6.3E trip unit 400A C40W36E400
Schneider Electric
Schneider Electric Retractable handle lock with 8 triangular insert NSYTET8PL
Schneider Electric
Schneider Electric External current sensor, MasterPact MTZ2, earth fault protection, sensor rating 400A-2000A, spare part LV834035SP
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18759?
- 18759 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18759.
- What is the HS code for 18759?
- The customs tariff (HS) code for 18759 is 8536.20.
- Who manufactures 18759?
- 18759 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18759?
- Yes — the 18759 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18759?
- The minimum order quantity is 1.
- Is 18759 available?
- Yes — 18759 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
