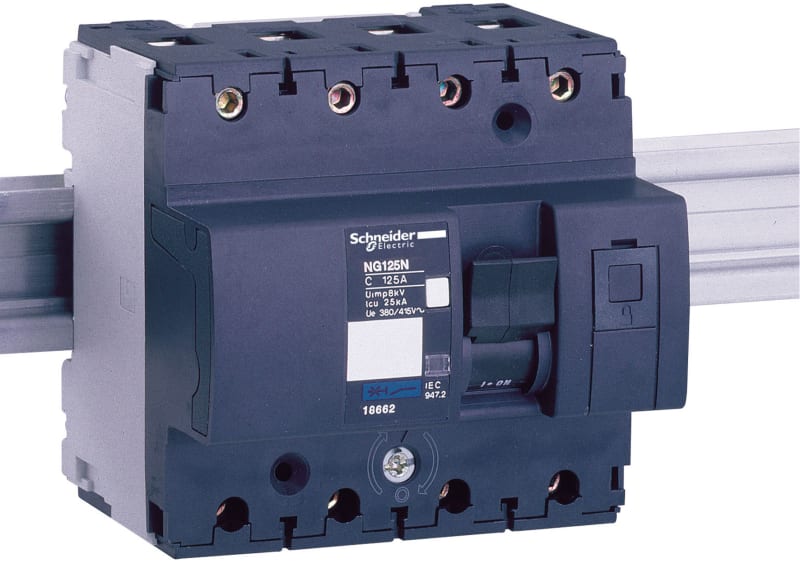

NG125N/D 80-4 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18672 NG125N/D 80-4 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18672
- EAN / GTIN
- 3303430186724
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Power loss
- 5.6 W
- Built-in depth
- 47 mm
- Release characteristic
- D
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 80 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 10–50 mm²
- Connectable conductor cross section solid-core
- 16–70 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430186724
- SAP 1000326710
- Code 8878103
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Harmony XB5, Push button flush mounted, plastic, projecting, red, 30mm, spring return, unmarked, 1NC XB5FL42
Schneider Electric
RH21P 220/240V AC 0,03/0,3A
56263
Schneider Electric

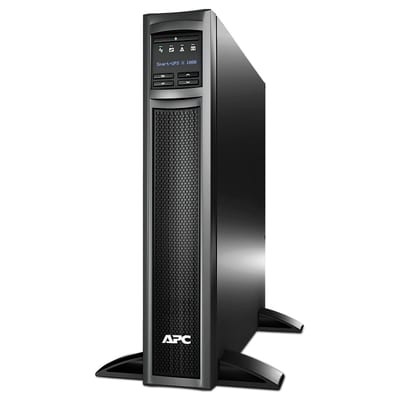

Schneider Electric APC Smart-UPS X, Line Interactive, 1000VA, Rack/tower convertible 2U, 230V, 8X C13 IEC, SmartSlot, Extended runtime SMX1000I
Schneider Electric

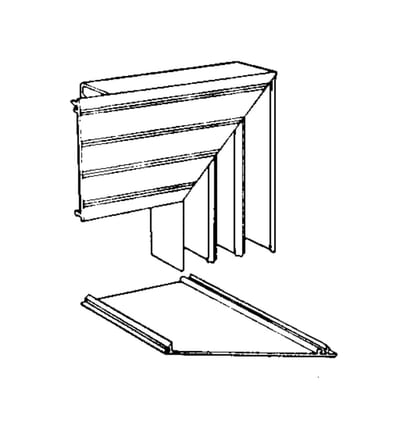

L-Piece FED 5630AN LS
5440300
Schneider Electric

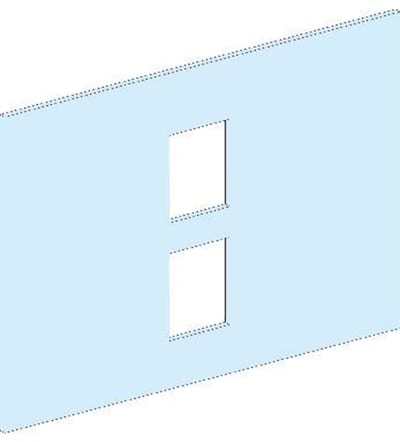

Front plate NSX630 Aut.Omk. PrismaSeT P
LVS03656
Schneider Electric

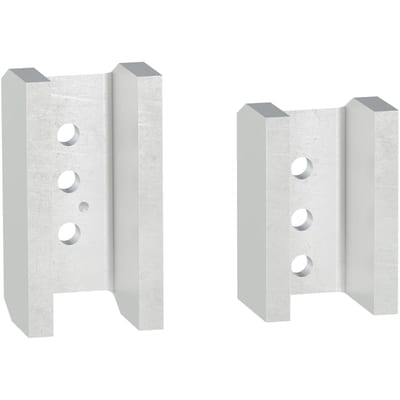

Schneider Electric RACKING TERMINAL MTZ2 32 H1/H2/HA drawout - spare part LV847912SP
Schneider Electric

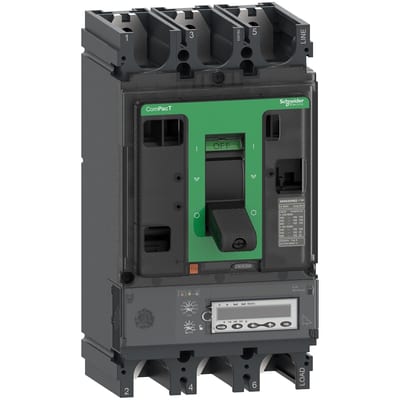

Schneider Electric Circuit breaker, ComPacT NSX400HB1, 75KA/690VAC, 3 poles, MicroLogic 6.3E-M trip unit 320A C40V36M320
Schneider Electric

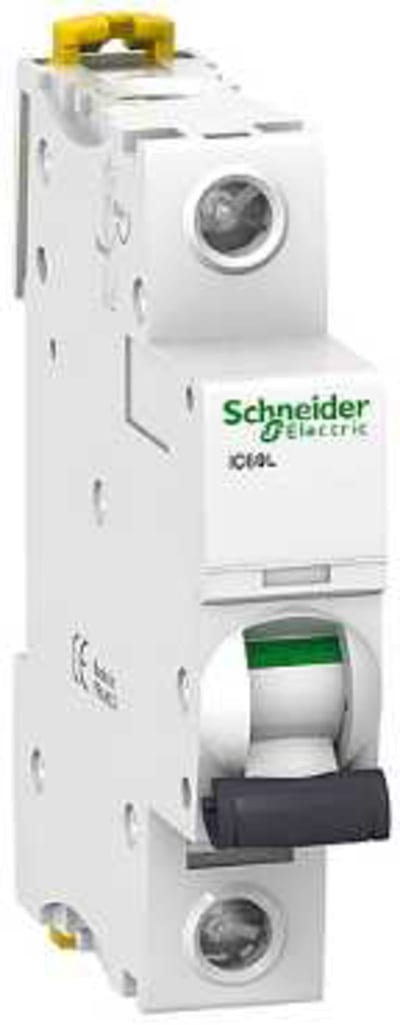

Schneider Electric A9F94102 ACTI9 IC60L Miniature Circuit Breaker 1P 2 A, Curve C
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18672?
- 18672 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18672.
- What is the HS code for 18672?
- The customs tariff (HS) code for 18672 is 8536.20.
- Who manufactures 18672?
- 18672 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18672?
- Yes — the 18672 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18672?
- The minimum order quantity is 1.
- Is 18672 available?
- Yes — 18672 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
