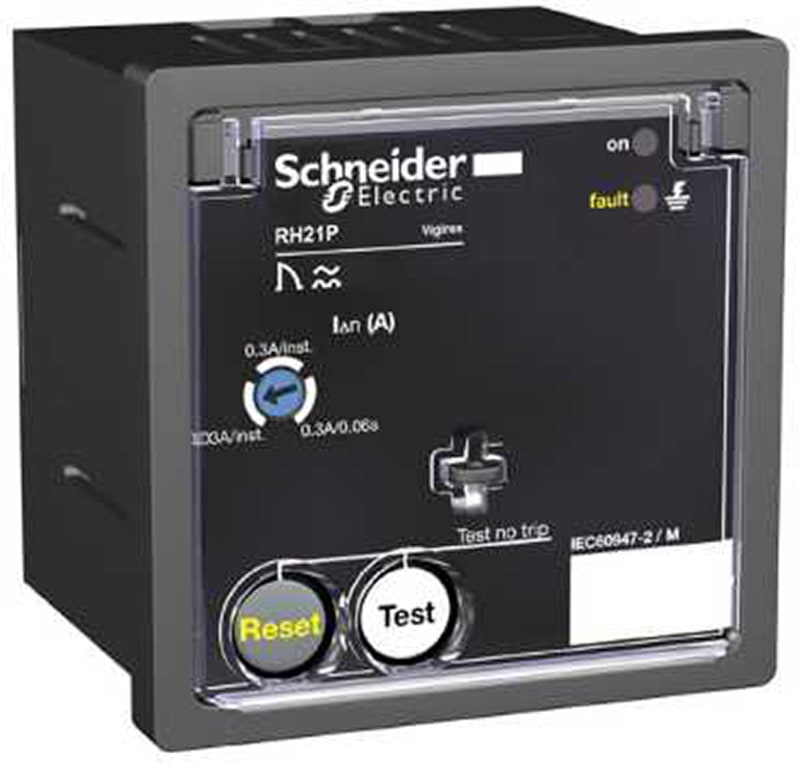

RH21P 220/240V AC 0,03/0,3A
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 56263 Rh21P 220/240V Ac 0,03/0,3A.
Technical Specifications
- Manufacturer part number (MPN)
- 56263
- EAN / GTIN
- 3303430562634
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 220/240 V
- Operating voltage AC 50 Hz
- 220–240 V
- Operating voltage AC 60 Hz
- 220–240 V
- External power supply required
- Yes
- Supply voltage AC 50 Hz
- 220–240 V
- Supply voltage AC 60 Hz
- 220–240 V
- Current measuring range
- 0.015–60 mA
- Rated switch current
- 8 A
- Rated operating frequency
- 50–400 Hz
- Voltage measuring range
- 0–1000 V
- Voltage type (operating voltage)
- AC
- Type of electric connection
- Clip connection
- Rated control supply voltage AC 50 Hz
- 220–240 V
- Rated control supply voltage AC 60 Hz
- 220–240 V
- Voltage type for actuating
- AC
- With detachable clamps
- No
- Function
- For AC-current system
- Rated voltage
- 220–240 V
- Rated frequency
- 50–400 Hz
- Response value amperage 1
- 30 mA
- Response value amperage 2
- 300 mA
- Min. adjustable delay-on energization time
- 0 s
- Max. permitted delay-on energization time
- 0.15 s
- Indication of difference current
- No
- Error registration possible
- No
- Number of contacts as normally open contact
- 1
- Number of contacts as change-over contact
- 1
- Width
- 72 mm
- Height
- 72 mm
- Depth
- 78 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.49
Cross References
- EAN 3303430562634
- SAP 1000036156
- Code 8729329
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC Smart-UPS X, Line Interactive, 1000VA, Rack/tower convertible 2U, 230V, 8X C13 IEC, SmartSlot, Extended runtime SMX1000I
Schneider Electric
L-Piece FED 5630AN LS
5440300
Schneider Electric
Front plate NSX630 Aut.Omk. PrismaSeT P
LVS03656
Schneider Electric
Schneider Electric RACKING TERMINAL MTZ2 32 H1/H2/HA drawout - spare part LV847912SP
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX400HB1, 75KA/690VAC, 3 poles, MicroLogic 6.3E-M trip unit 320A C40V36M320
Schneider Electric
Schneider Electric A9F94102 ACTI9 IC60L Miniature Circuit Breaker 1P 2 A, Curve C
Schneider Electric

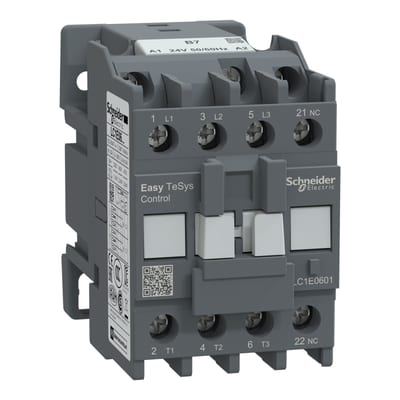

Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,6A,24V AC coil,50/60Hz,1NC auxiliary contact LC1E0601B7
Schneider Electric

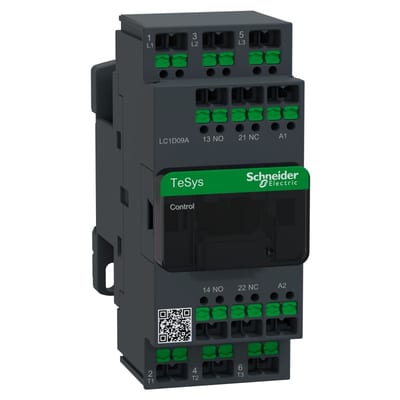

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V 9A, 12V AC coil, snap-in terminals LC1D09AJ7
