NG125N/D 80-3 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description

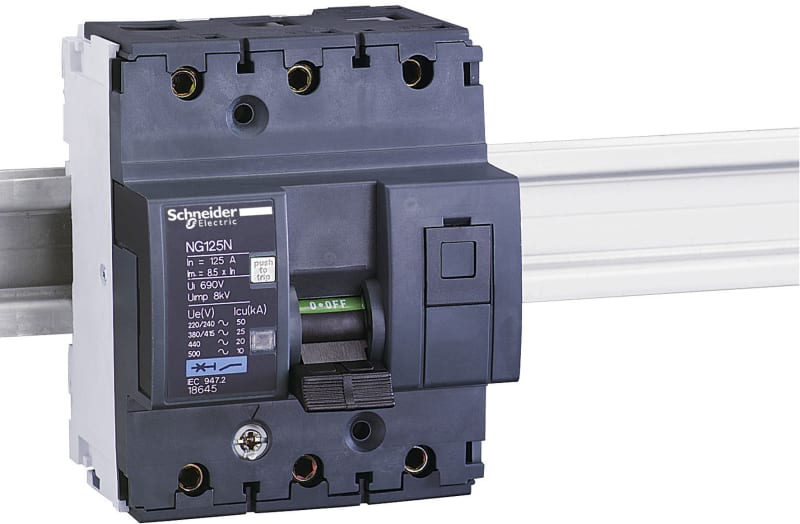

Schneider Electric 18669 NG125N/D 80-3 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18669
- EAN / GTIN
- 3303430186694
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Power loss
- 5.6 W
- Built-in depth
- 47 mm
- Release characteristic
- D
- Number of poles (total)
- 3
- Number of protected poles
- 3
- Rated current
- 80 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- No
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 4.5
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 10–50 mm²
- Connectable conductor cross section solid-core
- 16–70 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430186694
- SAP 1000019716
- Code 8491932
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric ClimaSys forced vent. IP54, 300M3/h, 115V, with outlet grille and filter G2 NSYCVF300M115PF
Schneider Electric
Cablepl. 7035 FOR750X320 PLA
NSYECPLAZ73G
Schneider Electric
Marker ark, 6 mm² (NSYTRABPV8)
Schneider Electric
Schneider Electric Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19 AP7553
Schneider Electric
Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,32A,24V AC coil,50/60Hz,1NC auxiliary contact LC1E3201B7
Schneider Electric
Schneider Electric Preventa module CAT.4 features 6*XPSUAF 24VAC/dc spring XPSUDN13AC
Schneider Electric
Schneider Electric Switch disconnector basic frame, ComPacT NS1600 type NA, 3P, withdrawable, manually operated, 1600A C160S3WM
Schneider Electric
Schneider Electric transfer switch, TransferPacT automatic, 100A, 400V, 4P, rotary, frame 100A TA10D4S1004TPE
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 18669?
- 18669 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is 18669.
- What is the HS code for 18669?
- The customs tariff (HS) code for 18669 is 8536.20.
- Who manufactures 18669?
- 18669 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for 18669?
- Yes — the 18669 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 18669?
- The minimum order quantity is 1.
- Is 18669 available?
- Yes — 18669 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
