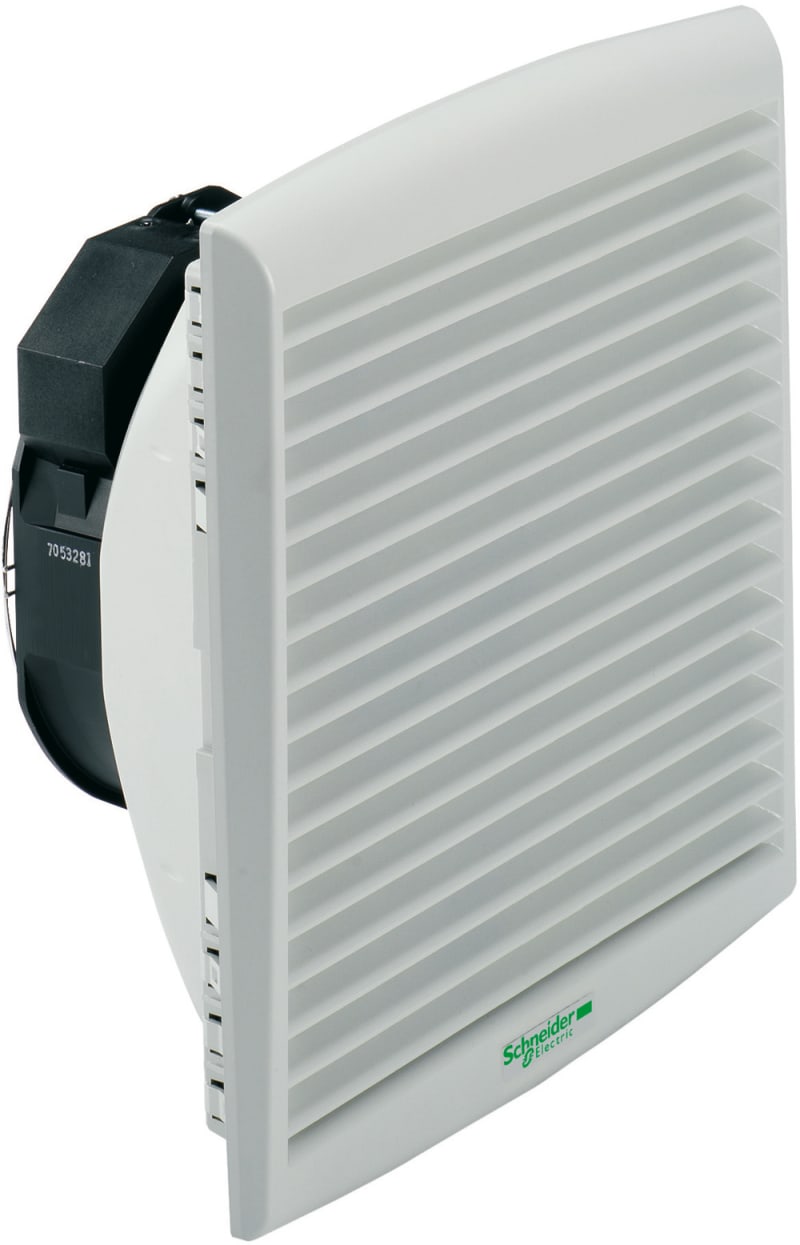

Schneider Electric ClimaSys forced vent. IP54, 300M3/h, 115V, with outlet grille and filter G2 NSYCVF300M115PF
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF300M115PF Fan 300M3/H 115V IP 54, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF300M115PF
- EAN / GTIN
- 3606480151293
- Sales unit
- pcs
- Voltage
- 115 V
- IP rating
- IP54
- Flow rate
- 300 m³/h
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan
- Type of filter
- Standard
- [Us] rated supply voltage
- 75...126 V
- Input voltage
- 115 V 50/60 Hz
- Certification
- CSA
- Absorbed power
- 36 W 50 Hz; 36 W 60 Hz
- [In] rated current
- 0.35 A 50 Hz; 0.32 A 60 Hz
- Noise level < at
- 53…57 dB
- Bearing type
- Ball
- Height
- External: 268 mm
- Width
- External: 248 mm
- Depth
- External : 116 mm
- Cut-out dimensions
- 223 x 223 mm
- Product weight
- 1.3 kg
- Material
- Outlet grille: injected thermoplastic (ASA PC)
- Colour
- Outlet grille: grey (RAL 7035)
- Ambient air temperature for operation
- -10…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Maximum pressure
- 158 Pa flow rate 0 m³/h
- Connections - terminals
- Faston connector
- IP degree of protection
- IP54
- Device composition
- 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 filter: front of axial motor; 1 outlet grille: front; 1 cut-out template; 1 power cord
- Condition of use
- Flow rates depends on the work point, see ProClima software; Surrounding environment must be relatively clean; Outside temperature must be 5 °C lower than inside temperature; Filter must be cleaned and replaced regularly; Overfrequent filter replacement should be avoided
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Snap mounting
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP54
- With protective cover
- Yes
- With filter
- Yes
- Rated power
- 36 W
- Roof fan
- No
- Built as slide-in fan
- Yes
- Volume flow, freeblowing
- 300 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 56 dB(A)
- Operating voltage AC 50 Hz
- 115 V
- Operating voltage AC 60 Hz
- 115 V
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151293
- SAP 1000089055
- Code 8913393
Product Documentation
More from Schneider Electric
Schneider Electric
Cablepl. 7035 FOR750X320 PLA
NSYECPLAZ73G
Schneider Electric
Marker ark, 6 mm² (NSYTRABPV8)
Schneider Electric
Schneider Electric Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19 AP7553
Schneider Electric
Schneider Electric Contactor,Easy TeSys Control,LC1E,3P(3NO),AC-3/AC-3E,≤440V,32A,24V AC coil,50/60Hz,1NC auxiliary contact LC1E3201B7
Schneider Electric
Schneider Electric Preventa module CAT.4 features 6*XPSUAF 24VAC/dc spring XPSUDN13AC
Schneider Electric

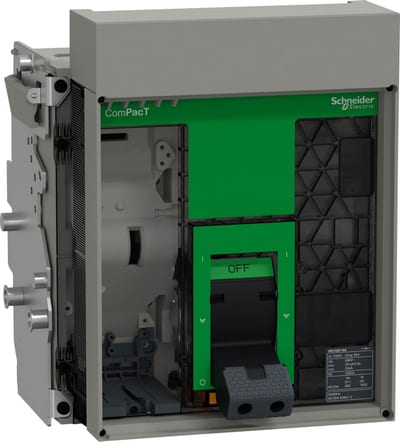

Schneider Electric Switch disconnector basic frame, ComPacT NS1600 type NA, 3P, withdrawable, manually operated, 1600A C160S3WM
Schneider Electric
Schneider Electric transfer switch, TransferPacT automatic, 100A, 400V, 4P, rotary, frame 100A TA10D4S1004TPE
Schneider Electric

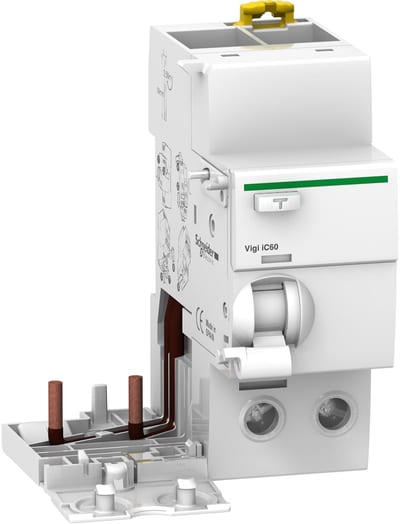

Schneider Electric Vigi IC60 - earth leakage add-on block - 2P - 63A - 300MA - SI type - selective A9V65263
