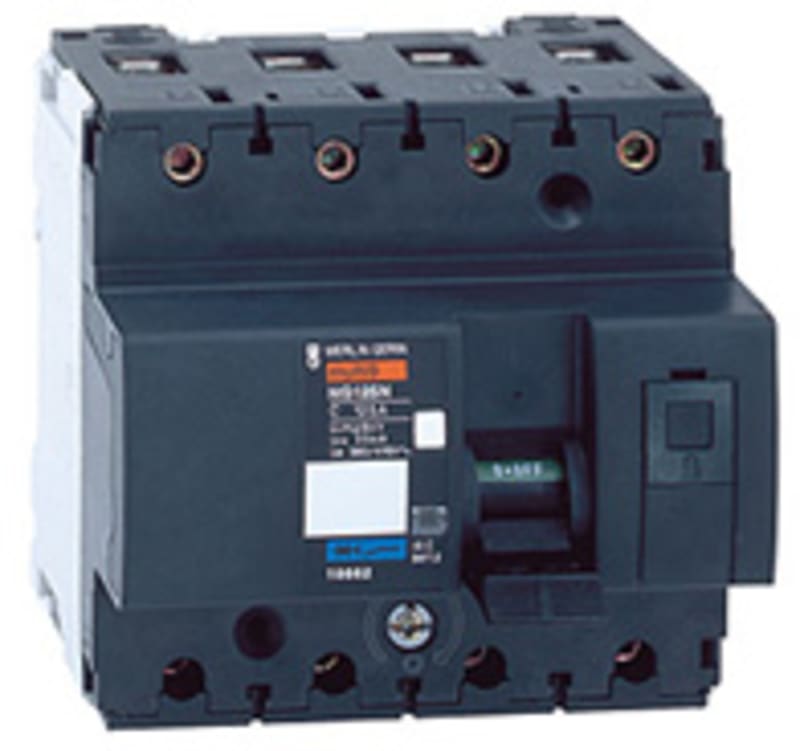

NG125N/B 80-4 Modular Power Switch
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 18666 NG125N/B 80-4 Modular power switch
Technical Specifications
- Manufacturer part number (MPN)
- 18666
- EAN / GTIN
- 3303430186663
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Power loss
- 5.6 W
- Built-in depth
- 47 mm
- Release characteristic
- B
- Number of poles (total)
- 4
- Number of protected poles
- 4
- Rated current
- 80 A
- Rated voltage
- 400 V
- Rated insulation voltage Ui
- 690 V
- Rated impulse withstand voltage Uimp
- 8 kV
- Frequency
- 50–60 Hz
- Concurrently switching neutral conductor
- Yes
- Overvoltage category
- 4
- Pollution degree
- 3
- Additional equipment possible
- Yes
- Width in number of modular spacings
- 6
- Degree of protection (IP)
- IP20
- Ambient temperature during operating
- -30–70 °C
- Connectable conductor cross section multi-wired
- 10–50 mm²
- Connectable conductor cross section solid-core
- 16–70 mm²
- Explosion-proof
- No
- Flush-mounted installation
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.20
Cross References
- EAN 3303430186663
- SAP 1000048378
- Code 8724322
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Straight length, Canalis KBA, 40 A, 1 circuit L+N+PE, 3 tap-off units, 3 m, white KBA40ED2303W
Schneider Electric
Backplate IP55 width 300mm PrismaSeT P
LVS08743
Schneider Electric

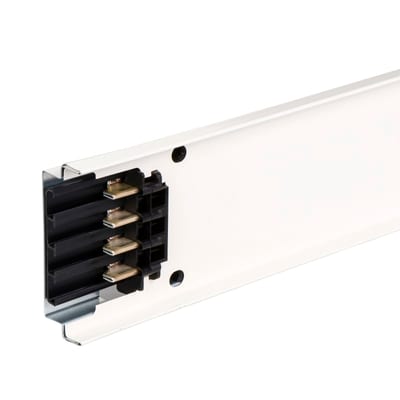

RAIL 63A 3M 1 Outlet
KNA63ED4301
Schneider Electric

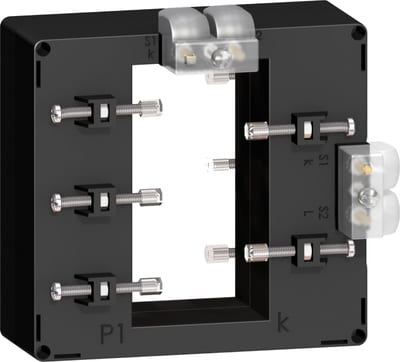

Current Transformer 1500/5 Rail 54X102
METSECT5DE150
Schneider Electric

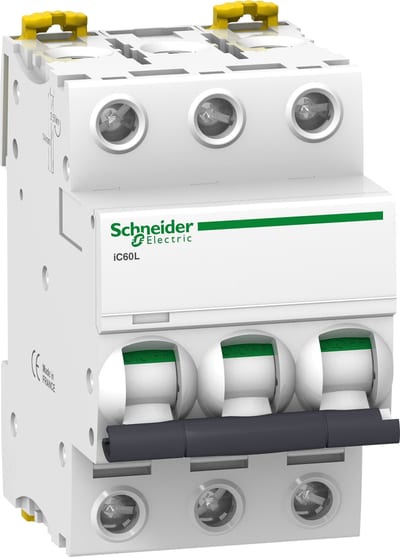

Schneider Electric A9F95332 ACTI9 IC60L Miniature Circuit Breaker 3P 32 A, Curve K
