Backplate IP55 width 300mm PrismaSeT P
Pricing
Request a quote
We reply within 24 hours
Product Description

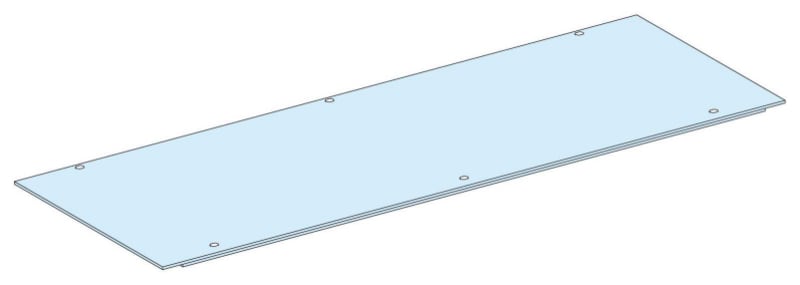

Schneider Electric LVS08743 Backplate IP55 width 300mm with brackets-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08743
- EAN / GTIN
- 3606481877796
- Sales unit
- pcs
- IP rating
- IP55
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Rear panel
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Cubicle duct - width 300 mm
- Kit composition
- side panel
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 300 mm
- Height
- 2000 mm
- Product weight
- 9.64 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 for enclosure
- IK degree of protection
- IK10
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Warranty (in months)
- 18
- Suitable as side panel
- No
- Suitable as rear panel
- Yes
- Suitable for enclosure building width
- 300 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 40
- With lock
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877796
- SAP 1200547354
- Code 82880506
