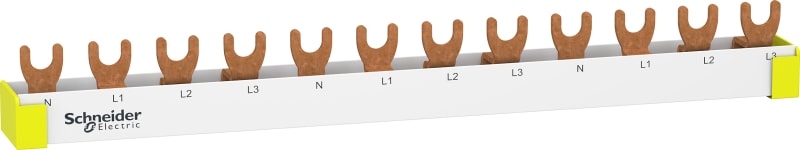

Schneider Electric RESI9 - comb busbar - 3L+N - 18 mm pitch - 12 modules - 63 A R9XFH412

Schneider Electric R9XFH412 Resi9 gaffel busbar for iC60 RCBO - 4 pole - NL1L2L3… - 63A - 12 modules.

Manufacturer part number (MPN)

R9XFH412

EAN / GTIN

3606480515941

HS code

8536.90

Sales unit

pcs

Package quantity

5 pcs

Rated current

63 A

Number of poles

4P

Range

Resi9

Product or component type

Comb busbar

mounting mode

Horizontal

Accessory / separate part category

Connection accessory

Lines description

3L + N

Length in 18 mm modules

12

Standards

EN/IEC 61439-1

Product certifications

CE

Number of ways

3 ways N + 3 L

Distribution type

N L1 L2 L3

Poles configuration for 1 way

1 x 3P + N; 1 x 4P

Connection pitch

18 mm

Connector type

Fork

Distance between way

72 mm

Marking

N L1 L2 L3

Insulation

Insulated

Device presentation

Cuttable

[Ie] rated operational current

63 A at 40 °C

[Ue] rated operational voltage

230 V AC Ph/N; 400 V AC Ph/Ph

[Ui] rated insulation voltage

500 V AC

Mounting location

Bottom on biconnect

9 mm pitches

24

Width

220 mm

Colour

White (RAL 9003)

Range compatibility

Acti9 K60; Resi9 miniature circuit-breaker; Resi9 residual current breaker with overcurrent protection (RCBO); Resi9 residual current circuit breaker (RCCB); Resi9 switch

Fire resistance

960 °C ( 30 s ) conforming to IEC 60695-2-1

Pollution degree

3

Warranty (in months)

18

HS Code

8536.90

• EAN 3606480515941
• SAP 1000758562
• Code 8515446
