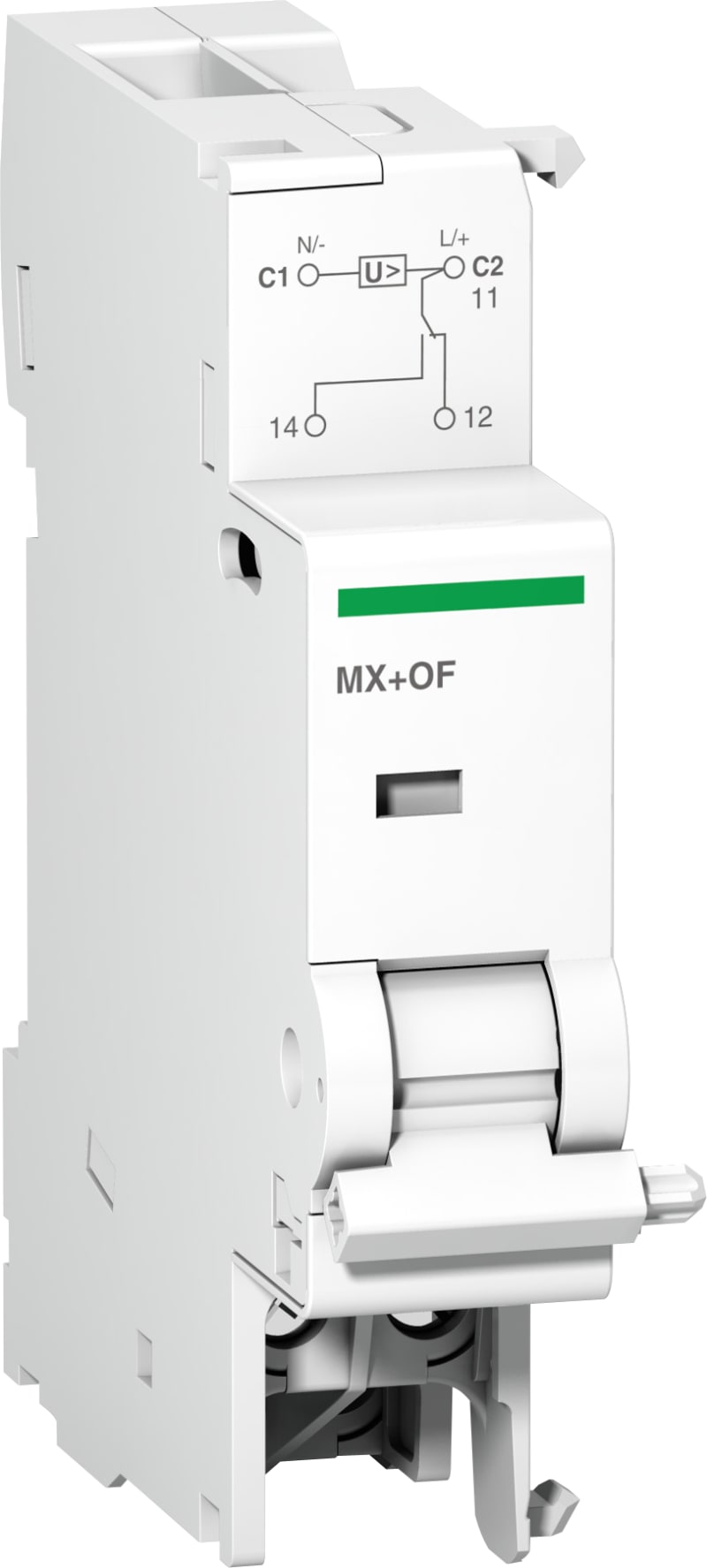

Schneider Electric MX Shunt Trip MX plus 1 OF 220-415VAC dc A9N26946

Schneider Electric A9N26946 Shunt-trip release MX+OF 220/415V AC.

Manufacturer part number (MPN)

A9N26946

EAN / GTIN

3606480382956

Sales unit

pcs

Package quantity

8 pcs

Voltage

220/415 V

range of product

Acti9

Product or component type

Shunt trip release with OC contact

Device short name

MX + OF

Signal contacts composition

1 C/O

[In] rated current

3 A at 415 V, AC; 6 A at <= 240 V, AC

[Uc] control circuit voltage

110...415 V AC 50/60 Hz; 110...130 V DC

9 mm pitches

2

Range compatibility

Acti9 iDPN; Acti9 C120; Acti9 C40; Acti9 C60H-DC; Acti9 C60NA-DC; Acti9 C60PV-DC; Acti9 DPN Vigi; Acti9 DT40; Acti9 DT60; Acti9 ID C40; Acti9 IDc; Acti9 ITG40; Acti9 ID; Acti9 DPN

Local signalling

Action indicator

mounting mode

Fixed

Mounting support

35 mm symmetrical DIN rail

Comb busbar and distribution block compatibility

Top: YES

Height

82.5 mm

Width

18 mm

Depth

73.5 mm

Product weight

65 g

Colour

White

Connections - terminals

Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible; Screw clamp terminal (bottom) - 2 cable(s) 1.5 mm² - flexible with ferrule; Screw clamp terminal (bottom) - 1 cable(s) 0.5…2.5 mm² - rigid

Wire stripping length

9 mm for bottom connection

Tightening torque

1 N.m bottom

Standards

EN/IEC 60947-2

Product certifications

ASTA; ASEFA; LCIE; KEMA

Tropicalisation

2 conforming to EN/IEC 60947-2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…50 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

8

Number of Units in Package 3

72

Country of origin

BE

Warranty (in months)

18

Function

Shunt release (for power circuit breaker)

Voltage type

AC

Rated voltage

415 V

Installed at the factory

No

Width in number of modular spacings

1

Rated switch current

3 A

Device fitting

Miniature circuit breaker (MCB)

Additional equipment

Shunt release (for power circuit breaker)

Voltage type for actuating

AC

Number of contacts as change-over contact

1

With auto test for earth leakage function

No

Suitable for max. number of poles main contact unit (total)

4

Suitable for max. current main contact unit

125 A

HS Code

8536.30

• EAN 3606480382956
• SAP 1000343826
• Code 81006581
