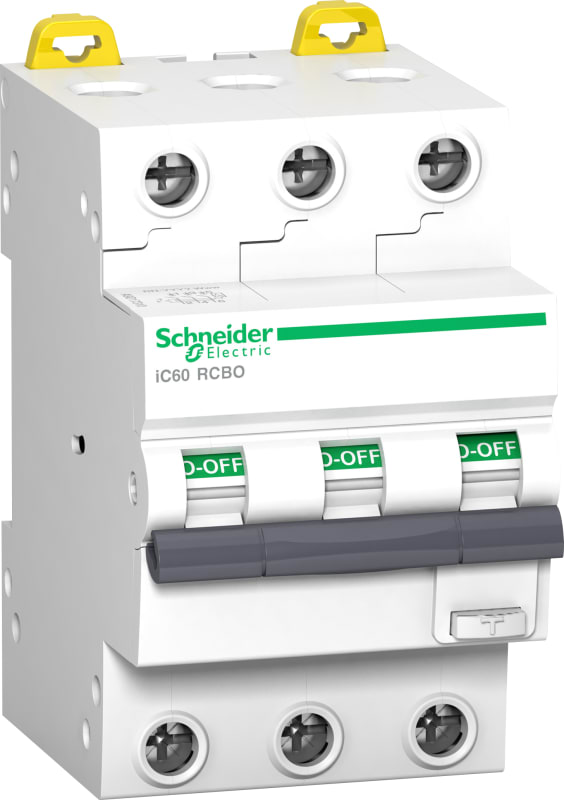

Schneider Electric ACTI9 IC60 RCBO - 3P - 32 A - C Curve - 10000A/15KA - 30 mA - A type A9D17332

Schneider Electric A9D17332 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Residual current circuit breaker with overcurrent Acti9 IC60 RCBO 3P 32A 30MA C 10kA A.

Manufacturer part number (MPN)

A9D17332

EAN / GTIN

3606481157973

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Voltage

230 V

Range

Acti9

Product name

Acti9 iC60 RCBO

Product or component type

Residual current breaker with overcurrent protection (RCBO)

Device short name

iC60 RCBO

Device application

Distribution

Poles description

3P

Number of protected poles

3

[In] rated current

32 A

Network type

AC

Network frequency

50 Hz

Trip unit technology

Thermal-magnetic

Curve code

C

Earth-leakage sensitivity

30 mA

Suitability for isolation

No conforming to IEC 60947-1

Quality labels

NF; KEMA-KEUR; VDE; IMQ

Device location in system

Outgoer

[Ue] rated operational voltage

220...240 V AC 50 Hz

Magnetic tripping limit

5...10 x In

Residual current tripping technology

Voltage independent

Earth-leakage protection time delay

Instantaneous

Earth-leakage protection class

Type A

Breaking capacity

10000 A Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1; 15 kA Icu at 220...240 V AC 50 Hz conforming to EN/IEC 60947-2

[Ics] rated service breaking capacity

7500 A 75 % x Icn at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1; 7.5 kA 50 % x Icu at 220...240 V AC 50 Hz conforming to EN/IEC 60947-2

Rated breaking and making capacity

Idm 6000 A at 220...240 V AC 50 Hz conforming to EN/IEC 61009-2-1

Limitation class

1 conforming to EN/IEC 61009-2-1

[Ui] rated insulation voltage

500 V AC 50 Hz

[Uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Contact position indicator

No

Control type

Toggle

Local signalling

ON, OFF, fault trip

mounting mode

Clip-on

Mounting support

DIN rail

Comb busbar and distribution block compatibility

Top or bottom: YES; Bottom: biconnect

Connection pitch

9 mm between poles

9 mm pitches

6

Height

86 mm

Width

54 mm

Depth

78 mm

Product weight

334 g

Colour

White

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

Tunnel type terminal top or bottom 1…35 mm² rigid; Tunnel type terminal top or bottom 1…25 mm² flexible; Tunnel type terminal top or bottom 1…25 mm² flexible with ferrule

Wire stripping length

12 mm for top or bottom connection

Tightening torque

2 N.m

Earth-leakage protection

Integrated

Standards

EN/IEC 61009-1; EN/IEC 61009-2-1

IP degree of protection

IP40 (distribution enclosure) conforming to IEC 60529; IP20 conforming to IEC 60529

Overvoltage category

III conforming to IEC 60364

Electromagnetic compatibility

8/20 µs impulse withstand, 250 A conforming to EN/IEC 61009-2-1

Tropicalisation

2

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…70 °C

Country of origin

PT

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481157973
• SAP 1200022186
• Code 81406284
