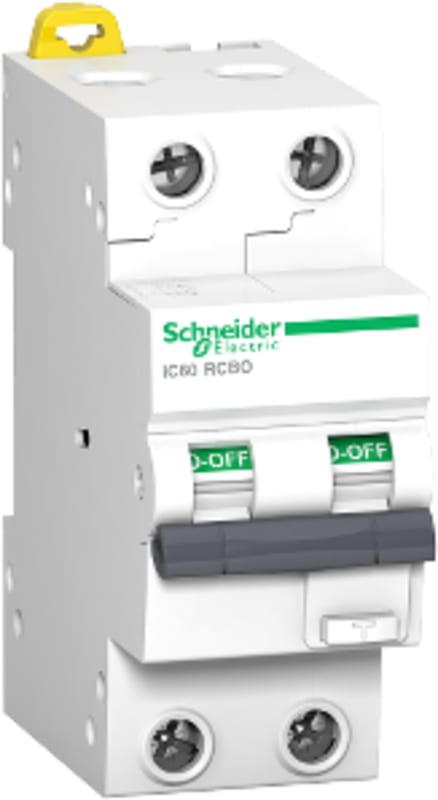

IC60 RCBO 2P 15A C30MA JFA NEK

Schneider Electric A9D14215 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Residual current circuit breaker with overcurrent Acti9 iC60 RCBO - 2P - 15 A - C Curve - 10000A/15kA - 30 mA - A type.

Manufacturer part number (MPN)

A9D14215

EAN / GTIN

3606481198310

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Number of poles

2P

Power loss

2 W

Number of protected poles

2

Rated voltage

230 V

Rated insulation voltage Ui

500 V

Rated impulse withstand voltage Uimp

4 kV

Rated current

15 A

Rated fault current

0.03 A

Leakage current type

A

Current limiting class

3

Rated short-circuit breaking capacity according to EN 61009

10 kA

Disconnection characteristic

Undelayed

Surge current capacity

0.25 kA

Voltage type

AC

Frequency

50 Hz

Release characteristic

C

Concurrently switching neutral conductor

No

With interlocking device

No

Overvoltage category

3

Pollution degree

3

Ambient temperature during operating

-25–40 °C

Width in number of modular spacings

1

Built-in depth

45 mm

Anti-nuisance tripping version

No

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

1–35 mm²

Connectable conductor cross section multi-wired

1–25 mm²

Flush-mounted installation

No

Mounting method

DIN rail

Country of origin

Portugal

HS Code

8536.90

• EAN 3606481198310
• SAP 1200022179
• Code 81407032
