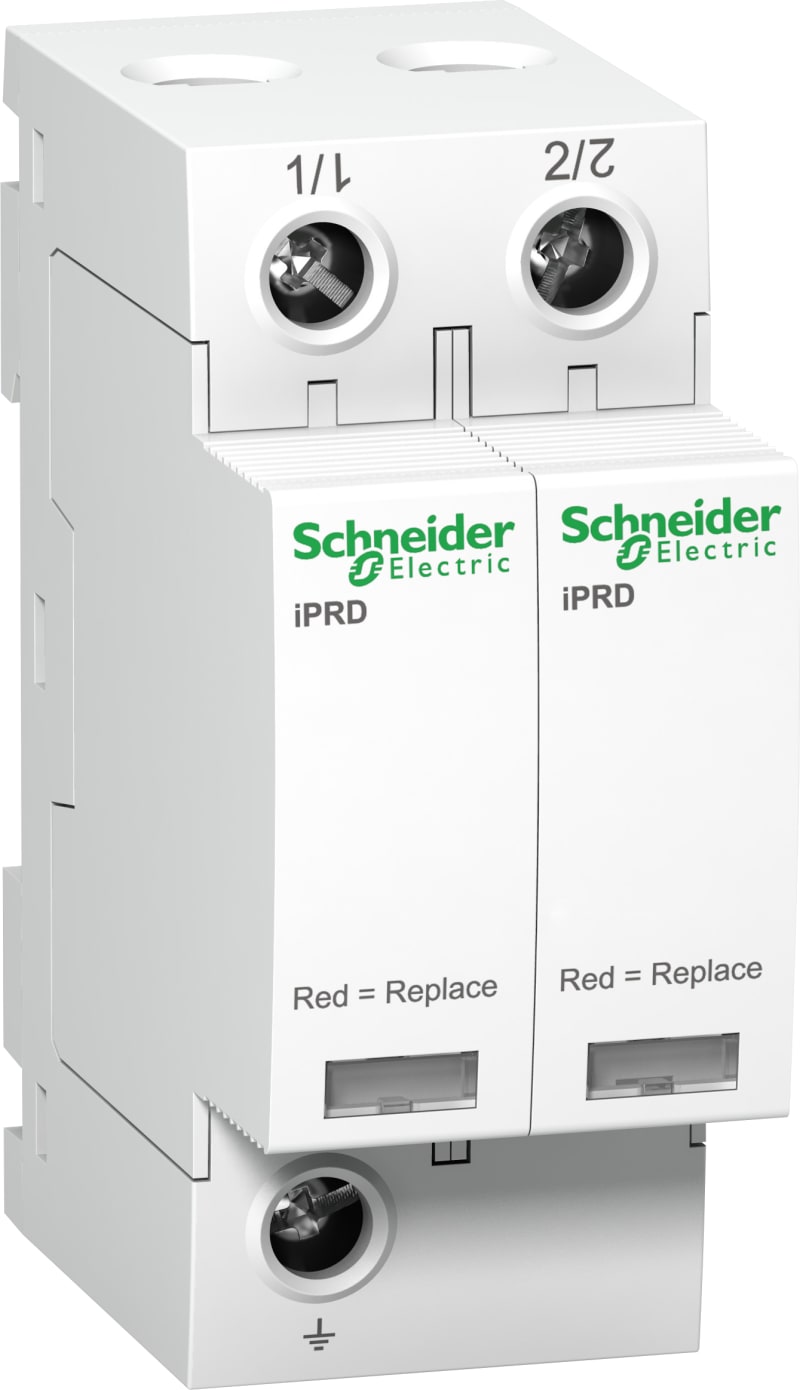

Schneider Electric iPRD-DC 40R 1000PV modular surge arrester - 2P - 1000VDC - with remote transfert A9L40281

Schneider Electric A9L40281 Acti9 iPRD40r Surge protection device 1000VPV 3P.

Manufacturer part number (MPN)

A9L40281

EAN / GTIN

3606480506673

Sales unit

pcs

Package quantity

4 pcs

Number of poles

3P

range of product

Acti9

Product name

Acti9 iPRD PV-DC

Device short name

iPRD PV-DC

Product or component type

Surge arrester with pluggable cartridge

Poles description

2P

Output type

Contact (volt-free)

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Surge arrester class type

Type 2

Surge arrester technology

MOV

[Ue] rated operational voltage

1000 V +/- 10 % DC

[In] nominal discharge current

15 kA

[Imax] maximum discharge current

40 kA

[Ucpv] maximum continuous operating voltage

Differential mode: 1000 V L+/L-; Common mode: 1000 V L+/PE; Common mode: 1000 V L-/PE

Maximum [Up] voltage protection level

Common mode 3.9 kV type 2 L+/PE; Common mode 3.9 kV type 2 L-/PE; Differential mode 3.9 kV type 2 L+/L-

Disconnector device type

Integrated disconnector

[Iscpv] short-circuit current rating

200 A

Local signalling

White/red flag

Signalling circuit voltage

AC: 250 V 50/60 Hz

Signalling output current

0.25 A

mounting mode

Clip-on

Mounting support

DIN rail

9 mm pitches

6

Height

85 mm

Width

54 mm

Depth

69 mm

Product weight

400 g

Colour

White (RAL 9003)

Response time

<= 25 ns

Connections - terminals

Tunnel type terminal 2.5…25 mm² rigid; Tunnel type terminal 2.5…16 mm² flexible; Tunnel terminal 2.5…16 mm² flexible with ferrule

Wire stripping length

14 mm

Tightening torque

3.5 N.m

Standards

EN/IEC 61643-31; UTE C 61740-51

Product certifications

CE

IP degree of protection

IP40 on front face: ; IP20 on terminal:

IK degree of protection

IK03

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

4

Number of Units in Package 3

36

Warranty (in months)

18

System configuration DC

Yes

System configuration IT

No

System configuration TN

No

System configuration TN-C

No

System configuration TT

No

System configuration other

No

Number of conductors (without earthing)

2

Nominal discharge surge current (8/20)

15 kA

Max. discharge surge current (8/20)

40 kA

Short-circuit-proof

No

Nominal voltage DC

1000 V

Max. continuous voltage DC

1000 V

Max. PV-voltage

1000 V

Voltage protection level

3.9 kV

Voltage protection level L-N

3.9 kV

Voltage protection level N-PE

3.9 kV

Integrated short-circuit protection

No

Integrated backup fuse

No

Leakage-current free

No

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

3 modular spacing

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. conductor cross section flexible (fine-strand)

35 mm²

With remote signalling contact

Yes

Signalling at the device

Optical

Category type 2

Yes

Degree of protection (IP)

IP20

Country of origin

China

HS Code

8536.30
