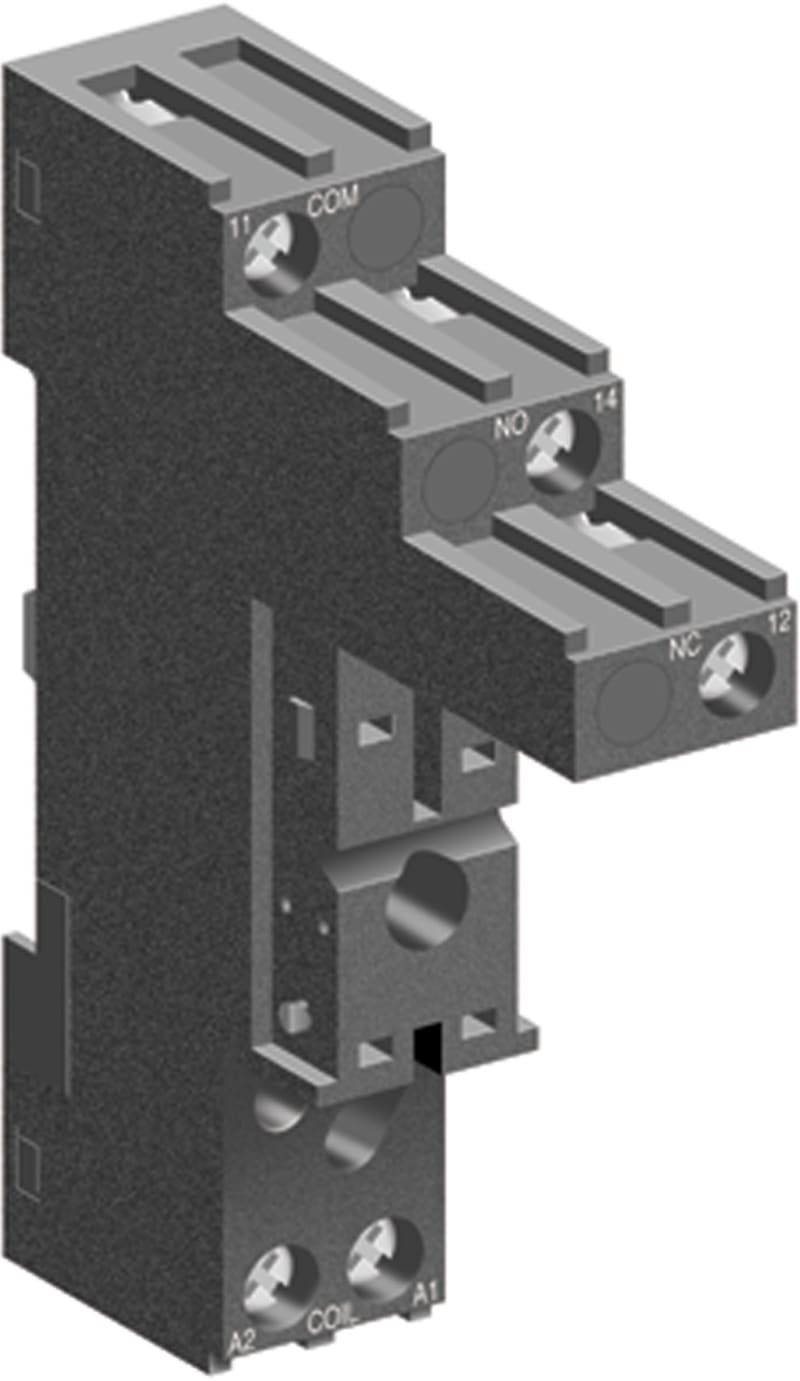

Schneider Electric Socket, separate contact, 12 A, relay type RSB, screw connector, 250 V AC RSZE1S35M

Schneider Electric RSZE1S35M Plinth For RSB1A120.

Manufacturer part number (MPN)

RSZE1S35M

EAN / GTIN

3389110260120

HS code

8536.90

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony Electromechanical Relays

Device short name

RSZ

Product or component type

Socket

Product compatibility

Plug-in relay RSB with 1 C/O contact at 12 A

Contacts type and composition

1 C/O

[Ith] conventional free air thermal current

12 A

Shape of pin

Flat

[Ue] rated operational voltage

< 250 V AC

Contact terminal arrangement

Separate

Connections - terminals

Screw connectors, 1 x 0.34...1 x 2.5 mm² (22 AWG...14 AWG) flexible with cable end; Screw connectors, 2 x 0.34...2 x 1 mm² (22 AWG...17 AWG) flexible with cable end; Screw connectors, 1 x 0.5...1 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw connectors, 2 x 0.5...2 x 1.5 mm² (20 AWG...16 AWG) solid without cable end

Tightening torque

< 0.8 N.m for M3 screw(s)

Fixing mode

By screw (panel); Clip-on (35 mm symmetrical DIN rail)

[Uimp] rated impulse withstand voltage

3.6 kV

Overvoltage category

III

Pollution degree

3

Sale per indivisible quantity

10

Width

15.5 mm

IP degree of protection

IP20 conforming to IEC 60529

Standards

IEC 61984

Product certifications

UL; CSA

Marking

CE

Ambient air temperature for storage

-40…85 °C

Ambient air temperature for operation

-25…85 °C

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

240

Country of origin

CN

Warranty (in months)

18

HS Code

8536.90
