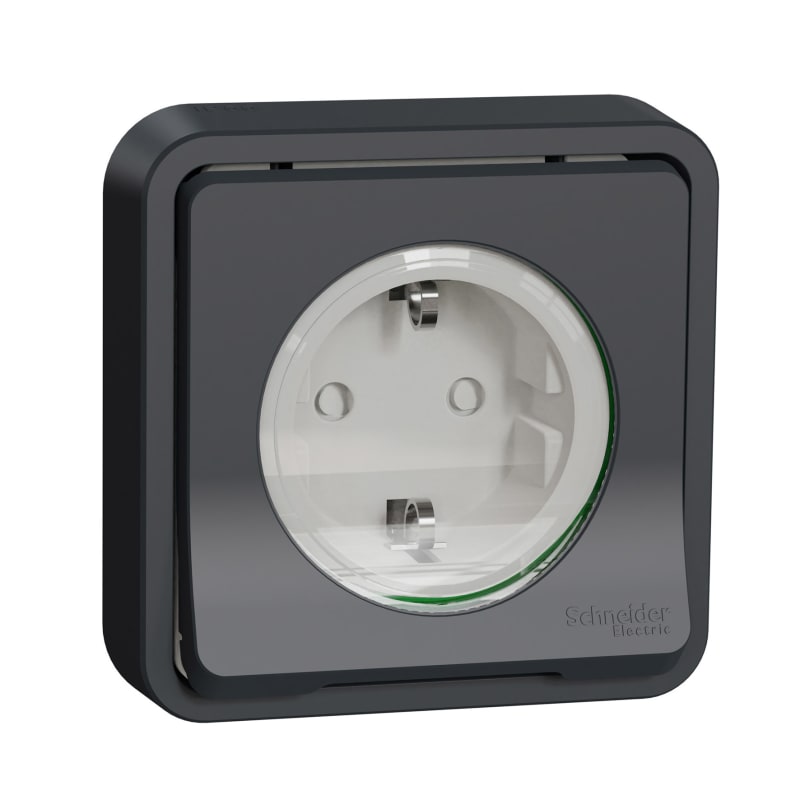

Schneider Electric Socket-outlet, Mureva Styl, 2P + E with shutters, side earth, 16A, 250V, flush, anthracite MUR36132
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric MUR36132 Mureva Styl single socket recessed with earth 16A, grey.
Technical Specifications
- Manufacturer part number (MPN)
- MUR36132
- EAN / GTIN
- 3606480789779
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range
- Mureva Styl
- Range of product
- Mureva Styl
- Product or component type
- Socket-outlet
- Device presentation
- Complete product
- Outlet poles configuration
- 2P + E
- Outlet standard description
- Side earth
- Outlet standard deviation
- Schuko
- Colour tint
- Anthracite (RAL 7016)
- Device mounting
- Flush
- Socket number
- 1
- Rated current
- 16 A
- [Ue] rated operational voltage
- 250 V AC
- Condition of use
- Indoor/outdoor
- Material
- PP (polypropylene); Brass; PC (polycarbonate)
- fixing mode
- Screws
- Clamping connection capacity
- 1...2.5 mm² for rigid cable(s); 1...2.5 mm² for stranded cable(s); 1...2.5 mm² for flexible cable(s)
- Wire stripping length
- 13 mm
- Length
- 84 mm
- Height
- 84 mm
- Width
- 84 mm
- Depth
- 49 mm
- Projecting depth
- 30 mm
- Embedding depth
- 25 mm
- Chemical and detergent products resistance
- Resistant to alcohol (70 %); Resistant to alcohol (96 %); Resistant to A-Lactic Acid; Resistant to diluted quaternary ammonium; Resistant to diluted bleach; Resistant to diluted ammonia; Resistant to soapy water; Resistant to crystal cleaner; Resistant to hydrogen peroxide 10 volumes; Resistant to hexane
- Outlet standard
- CEE 7/3
- surface treatment
- Untreated
- Surface finish
- Matt
- Network frequency
- 50/60 Hz
- Connections - terminals
- Screwless terminals
- Quality labels
- AENOR; EAC
- IP degree of protection
- IP55
- IK degree of protection
- IK08
- Flame retardance
- Self-extinguishing 650 °C conforming to IEC 60695-2-1
- Ambient air temperature for operation
- -5…40 °C
- Ambient air temperature for storage
- -25…55 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 60
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480789779
- SAP 1200495130
- Code 82625005
Product Documentation
