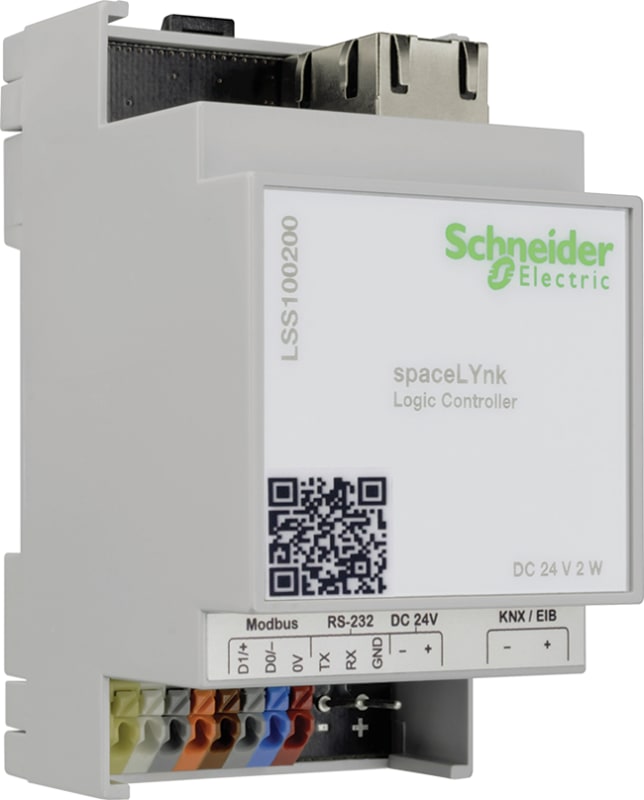

Schneider Electric LSS100200 spaceLYnk logic controller
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LSS100200 spaceLYnk logic controller is listed under Control & Automation / PLCs & Logic Relays. Sales unit: pcs; Package quantity: 10 pcs; Range: SpaceLogic KNX; Product name: SpaceLYnk; Product or component type: Logic controller; Communication port protocol: Modbus; IP (Internet Protocol); BACnet; KNX.
Technical Specifications
- Manufacturer part number (MPN)
- LSS100200
- EAN / GTIN
- 3606480715723
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- SpaceLogic KNX
- Product name
- SpaceLYnk
- Product or component type
- Logic controller
- Communication port protocol
- Modbus; IP (Internet Protocol); BACnet; KNX
- [Us] rated supply voltage
- 24 V DC
- Power consumption in W
- 2 W
- LED indicator
- LED (green) for CPU load; LED (green/red) for KNX powered/reset
- Physical interface
- 1 x RJ45; 1 x RS485; 1 x RS232; 1 x TP-UART2
- Maximum number of users
- 50
- Number of Modbus server
- 31
- Number of BACnet tags
- 2000
- Integrated connection type
- 1 USB 2.0 port
- Control type
- RESET push-button
- Port Ethernet
- 10BASE-T/100BASE-TX
- Mounting support
- DIN rail
- Connections - terminals
- KNX bus: bus terminal 2 cable(s) 0.8 mm²; Power supply: clamp terminal1.5 mm²; Serial: clamp terminal1.5 mm²
- Height
- 90 mm
- Width
- 52 mm
- Depth
- 58 mm
- IP degree of protection
- IP20
- Ambient air temperature for operation
- -5…45 °C
- Operating altitude
- <= 2000 m
- Relative humidity
- 0…93 %
- Standards
- IEC 60950-1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.000 cm
- Package 1 Width
- 6.000 cm
- Package 1 Length
- 9.300 cm
- Package 1 Weight
- 127.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 7.500 cm
- Package 2 Width
- 20.000 cm
- Package 2 Length
- 35.000 cm
- Package 2 Weight
- 1.385 kg
- Unit Type of Package 3
- S03
- Number of Units in Package 3
- 40
- Package 3 Height
- 30.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 6.030 kg
- Country of origin
- LV
- Warranty (in months)
- 18
- Mounting method
- DRA (DIN-rail adaptor)
- Model
- Ethernet interface
- Operating voltage
- 24 V
- Voltage type
- DC
- Width in number of modular spacings
- 3
- Protocol
- TCP/IP
- Degree of protection (IP)
- IP20
Standards & Compliance
- HS Code
- 8537.10
Cross References
- EAN 3606480715723
- SAP 1000627891
- Code 8550730
