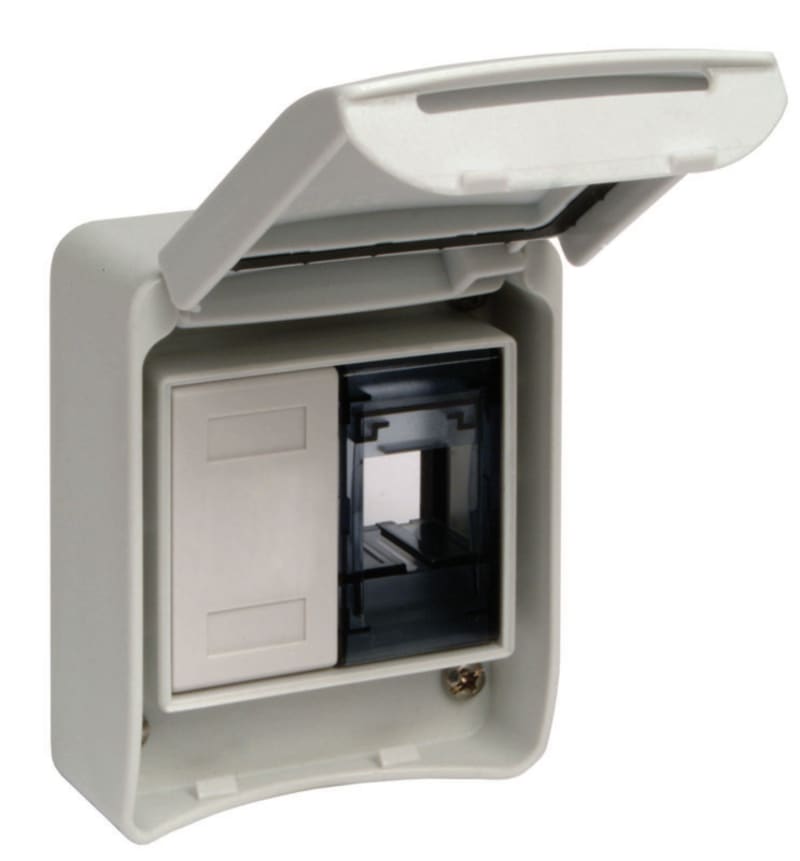

Schneider Electric RJ 45 support 65 x 85 - with 2 adapters RJ45 Infra+ - IP65

Schneider Electric 81143 RJ 45 outlet 65 x 85 - with 2 adaptere RJ45 Infra+ - IP65.

Manufacturer part number (MPN)

81143

EAN / GTIN

3303430811435

Sales unit

pcs

Package quantity

18 pcs

Range

PratiKa

Product or component type

Support

Device short name

RJ45 support

Plug, socket category

Low voltage

Plug, socket material

Housing: self-extinguishing polymer

Cover type

Lid

Device mounting

Surface

mounting mode

Panel-mounted

Connections - terminals

Captive screws

Product weight

0.09 kg

Base dimension

65 x 85 mm

Height

85 mm

Width

65 mm

Depth

45.2 mm

Colour

Grey (RAL 7035)

Standards

IEC 60309-2; IEC 60309-1

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK09 conforming to EN 62262

Fire resistance

850 °C conforming to IEC 60695-2-11

Relative humidity

50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C

Ambient air temperature for operation

35 °C ( 86400 s ) ; -25…40 °C

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

6.500 cm

Package 1 Length

8.500 cm

Package 1 Weight

85.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

18

Package 2 Height

12.000 cm

Package 2 Width

26.500 cm

Package 2 Length

27.000 cm

Package 2 Weight

1.653 kg

Unit Type of Package 3

S03

Number of Units in Package 3

54

Package 3 Height

30.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

5.498 kg

Country of origin

IT

Warranty (in months)

18

Assembly arrangement

Basic element with full cover plate

RAL-number

7035

Connection type

Screw

Outlet direction

Straight

Centre plate

No

Suitable for number of connectors

2

Duct installation

No

Type of fastening

Screwing

Shielded buses

No

Shielded housing

No

Separate strain relief

No

Separate earthing connection

No

Mechanical coding

No

Type of connector

RJ45 8(8)

Floor box/subfloor mounted

No

With label space

Yes

Surface mounting

Yes

With dust cover

Yes

Compatible with third-party covers

No

With terminal resistor

No

With buses/couplings

No

Degree of protection (IP)

IP65

Flush-mounted installation

Yes

Colour coding

No

Device width

65 mm

Device height

85 mm

Device depth

45.2 mm

Number of modules (module system)

2

HS Code

3926.90

• EAN 3303430811435
• SAP 1200500655
• Code 82623539
