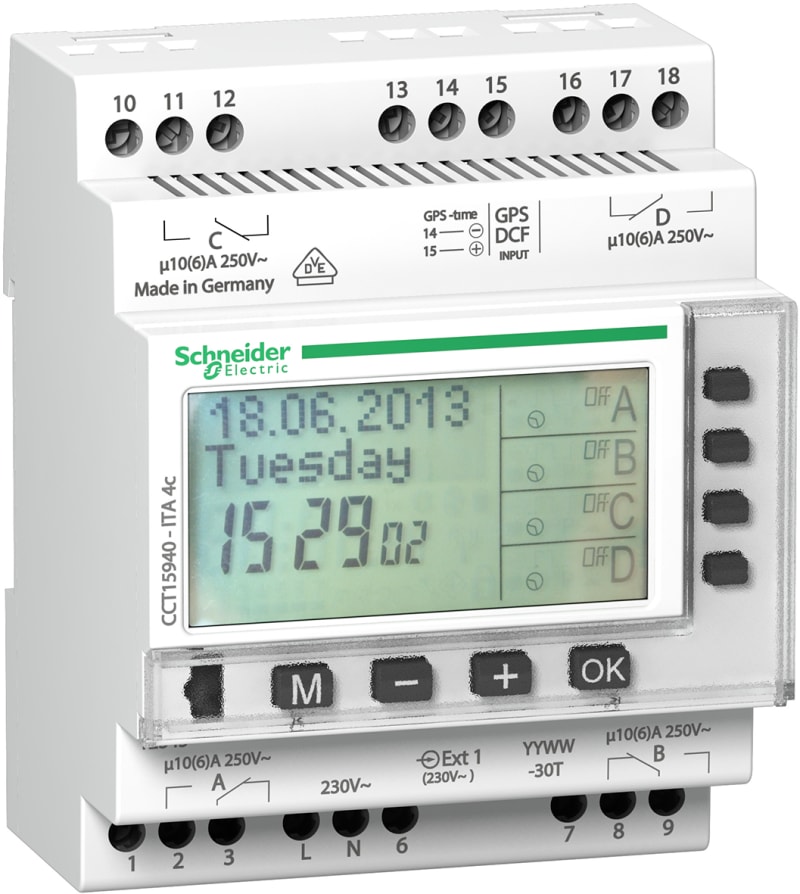

Schneider Electric Acti9 ITA 4-channel Yearly Time Switch CCT15940

Schneider Electric CCT15940 is an Acti9 ITA yearly programmable time switch with a 24-hour, 7-day and annual cycle. Four channels, 230 V AC operation, and switching up to 10 A at 250 V AC per channel with two override inputs. Backlit LCD, PIN-code access, and automatic winter/summer time changeover; battery backup preserves time and program for 10 years. DIN-rail mount, 8 modules wide (71.5 mm), screw terminals.

Manufacturer part number (MPN)

CCT15940 EAN / GTIN: 3606480625169 Sales unit: pcs Package quantity: 18 pcs range of product: Acti9 Product name: Acti9 ITA Device short name: ITA Product or component type: Yearly programmable time switch Device application: Building battery type: Lithium Number of channels: 4 User language: Hungarian; Norwegian; Spanish; French; Dutch; Italian; German; English; Danish; Portuguese; Swedish; Romanian; Czech; Polish; Finnish Colour tint: White (RAL 9003) Maximum switching current: 10 A - 250 V AC pf = 1; 6 A - 250 V AC pf = 0.6 [Ue] rated operational voltage: 230 V AC at 50/60 Hz Number of inputs: 2 input(s) impulse and maintained Accuracy: +/- 0.5 s/day 20 °C Cycle duration: 24 hours + 7 days + year Maximum number of switchings: 300 minimum interval duration: 1 s Function available: Cycle programming; Manual or software programming; Pulse programming; External input for override; Time synchronisation via antenna possible; Automatic winter/summer time changeover Display type: Backlit LCD Battery life: 10 year(s) Backup time: 10 years time and program saving Type of setting: PIN code; Absence for holidays function Connections - terminals: screw terminals Mounting support: DIN rail 9 mm pitches: 8 Width: 71.5 mm Height: 90 mm Depth: 63 mm Function: Pulse programming Absence for holidays: Yes Time changeover: Automatic Updated by: GPS; DCF77 Compatibility code: ITA Market segment: Small commercial Ambient air temperature for operation: -30…55 °C IP degree of protection: IP20 Number of Units in Package 1: 1 Number of Units in Package 2: 18 Country of origin: DE Warranty (in months): 18 Shortest switching time channel 1: 1 s Shortest switching time channel 2: 1 s Mounting method: DIN rail Voltage type (supply voltage): AC Autonomy in years: 10 Contact type: Change-over contact Number of memory locations: 300 Nominal switching current at 250 V AC: 10 A Degree of protection (IP): IP20 Width in number of modular spacings: 4

HS Code

8531.80

• EAN 3606480625169
• SAP 1000516198
• Code 8632049
