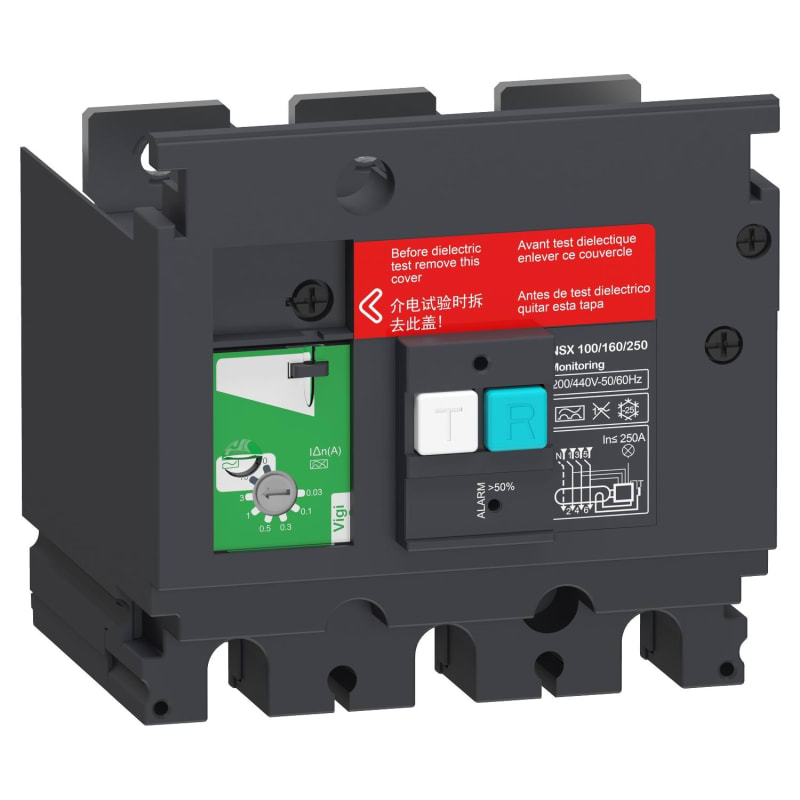

Schneider Electric Earth-leakage VigiPacT add-on alarm module, ComPacT NSX 100/160/250, 200VAC to 440VAC, 30MA to 30A, 3 poles LV429498

Schneider Electric LV429498 Vigimodul alarm 3P NSX100 for NSX250 30mA for 30A.

Manufacturer part number (MPN)

LV429498

EAN / GTIN

3606481298638

Sales unit

pcs

Package quantity

8 pcs

Number of poles

3P

Range of product

ComPacT NSX100...250; ComPact NSX100...250

Device short name

VigiPacT

Product or component type

Vigi add-on

Device application

Wiring

Range compatibility

ComPacT ComPacT NSX100 circuit breaker; ComPacT ComPacT NSX160 circuit breaker; ComPacT ComPacT NSX250 circuit breaker; ComPact ComPact NSX100 circuit breaker; ComPact ComPact NSX160 circuit breaker; ComPact ComPact NSX250 circuit breaker

Poles description

3P

[In] rated current

100 A; 160 A; 250 A

Earth-leakage protection class

Class A; Class AC

Residual earth-leakage sensitity adjustment type

Adjustable

Earth-leakage sensitivity

0.03 A for class A; 0.1 A for class A; 0.3 A for class A; 0.5 A for class A; 1 A for class A; 3 A for class A; 10 A for class AC; 30 A for class AC

Network type

AC

Network frequency

50/60 Hz

[Ue] rated operational voltage

200...440 V AC 50/60 Hz conforming to IEC 60947-2

Earth-leakage protection

Without

Maximum breaking time

800 ms

Overvoltage category

IV

Electrical shock protection class

Class II

Standards

IEC 60947-2

Number of Units in Package 1

1

Number of Units in Package 2

8

Warranty (in months)

18

Delay adjustable

No

Rated fault current

0.03–30 A

Rated control supply voltage AC 50 Hz

200–440 V

Rated control supply voltage AC 60 Hz

200–440 V

Max. rated operation voltage Ue

440 V

Country of origin

Italy

HS Code

8536.30
