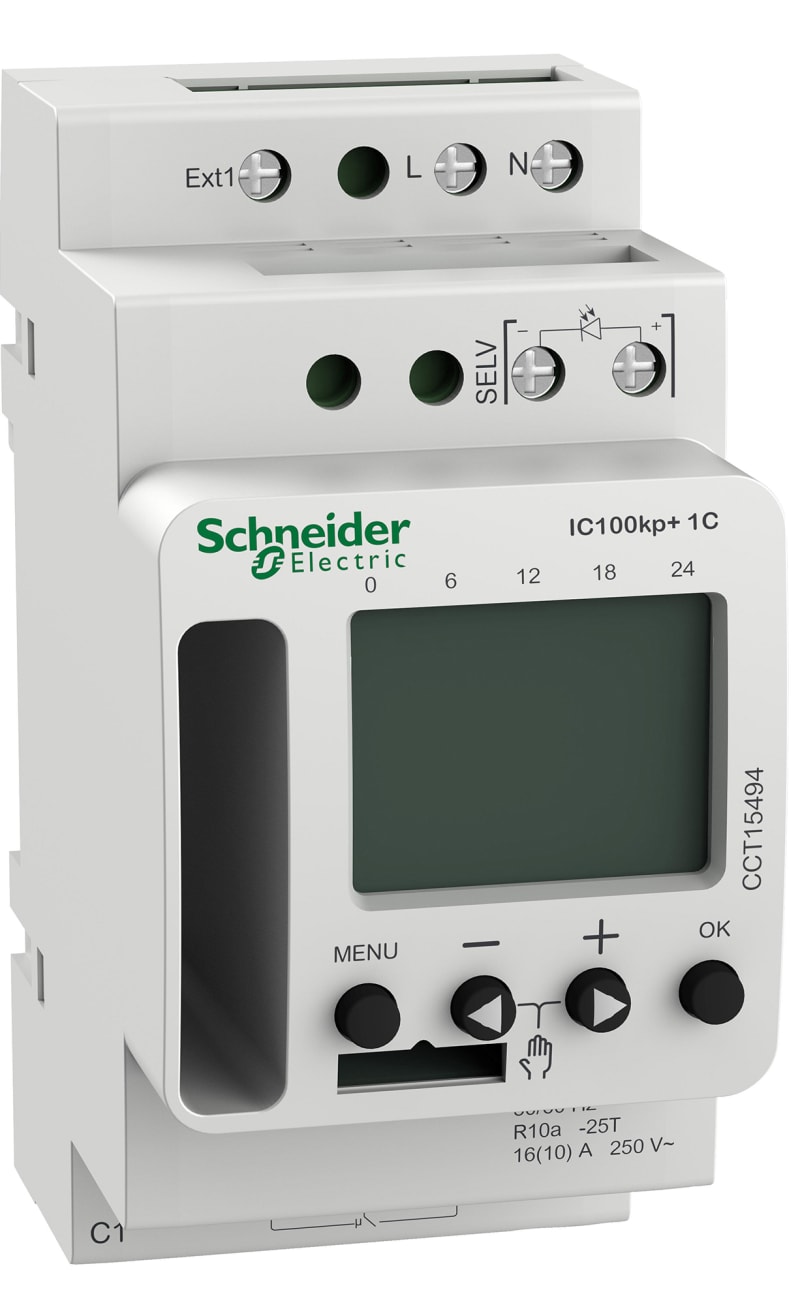

Schneider Electric ACTI9 IC100KP+ 1C (1 - 99000 lux) SMART programmable twilight switch CCT15494

Schneider Electric CCT15494 Acti 9 IC100kp+ 1C (1 - 99000 lux) programmerbart skumringsrelè.

Manufacturer part number (MPN)

CCT15494 EAN / GTIN: 3606489524562 Sales unit: pcs Package quantity: 22 pcs range of product: Acti9 Product name: Acti9 IC Product or component type: Programmable twilight switch with time switch function Device short name: IC100kp+ Device application: Building Provided equipment: twilight sensor outdoor Load type: incandescent lamp: 2600 W; halogen lamp: 2600 W; non-corrected fluorescent tube: 2300 VA; serial-compensated fluorescent tube: 2300 VA; parallel compensated fluorescent lamp: 730 VA (80 µF); compact fluorescent lamp: 170 W; = 2 W LED lamp: 200 W User language: English; French; Russian; Spanish; Italian; Dutch; Danish; Croatian; Hungarian; Slovene; Portuguese; German; Romanian; Polish; Swedish; Norwegian; Finnish; Czech Number of channels: 1 Maximum power consumption in W: 0.8 W standby [Ue] rated operational voltage: 230 V AC +10 % -15 % at 50/60 Hz Maximum switching current: 10 A - 250 V AC pf = 0.6; 16 A - 250 V AC pf = 1 minimum switching current: 10 mA 230 V AC; 100 mA 24 V AC/DC Electrical insulation class: Class II Output type: Dry contact Accuracy: +/- 0.25 s/day 25 °C Contacts type and composition: C/O Maximum number of programming range: 84 Function available: External input for override; Holiday schedules; Automatic winter/summer time changeover; Time limited or permanent deactivation of on/off function; Switch preselection Control type: By brightness detection; By time schedule control button type: 4 push-buttons Display type: Backlit LCD Information displayed on mobile app: Operating time counter (per channel) ; Time; Day; Output contact status; Current program Time delay range: 0…59 min (on); 0…59 min (off) Power reserve: 10 years Type of setting: Weekly programming Light intensity adjustment: 1…99000 lux Connections - terminals: 2 x 0.5…2.5 mm² screw terminals solid or flexible; 1 x 2.5 mm² screw terminals solid or flexible with sleeve Mounting support: TH35 DIN rail conforming to EN 60715 Height: 92.6 mm Width: 45 mm Depth: 66.7 mm Product weight: 134 g Overvoltage category: Class 3 Marking: CE Ambient air temperature for operation: -25…55 °C ambient air temp for storage/transportation: -30…70 °C Relative humidity: 90 %, non-condensing IP degree of protection: IP20 Standards: EN 60669-2-1 Number of Units in Package 1: 1 Number of Units in Package 2: 22 Country of origin: DE Warranty (in months): 18 Rated voltage: 230 V Rated frequency: 50–60 Hz Max. incandescent lamp load: 2600 W Max. load fluorescent lamp: 2300 VA Max. switching current (cos phi = 0.6): 10 A Rated switch current: 16 A Adjustment range brightness value: 1–99000 lx With programmable overnight shutoff: Yes Push button input: Yes Max. conductor length light sensor: 50 m Protection class light sensor: II Mounting method light sensor: Wall surface mounted Mounting method: DIN rail Width in number of modular spacings: 2.5 Built-in depth: 67 mm Degree of protection (IP): IP20 Degree of protection (IP) light sensor: IP55

HS Code

8536.50

• EAN 3606489524562
• SAP 1200314495
• Code 82302465
