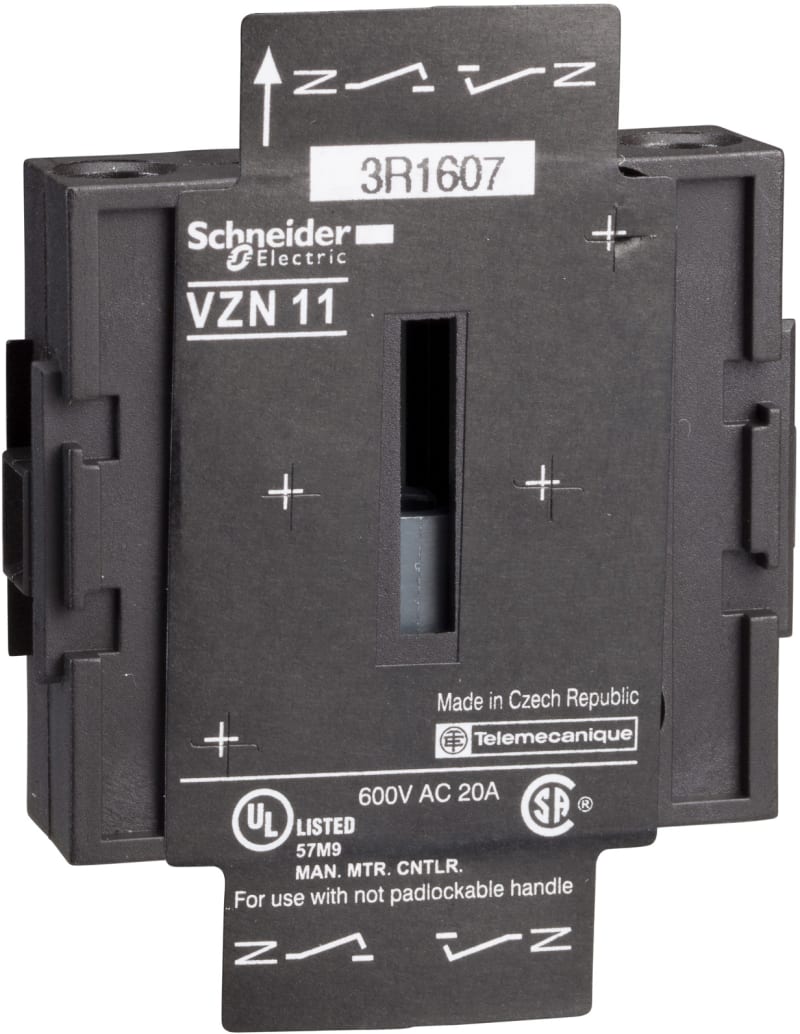

Schneider Electric VZN11 TeSys Additional Neutral Block 1N (VN12/VN20)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric TeSys VZN11 additional neutral block for VN12 and VN20 switch disconnectors, 1N pole with 1 NO early-make/late-break contact, right-hand mounting. Rated 690 V AC 50/60 Hz, Ith 20 A, Uimp 6 kV, IP20, screw clamp terminals up to 4 mm². Dimensions 45.5 x 12 x 39 mm, weight 20 g. Standards IEC 60947-3; certifications CSA, GL, UL. Country of origin: Czech Republic.
Technical Specifications
- Manufacturer part number (MPN)
- VZN11
- EAN / GTIN
- 3389110760019
- Sales unit
- pcs
- Package quantity
- 70 pcs
- Range
- TeSys
- Device short name
- VZN
- Product or component type
- Additional neutral block
- Performance level
- Standard
- Poles description
- 1N
- Contacts type and composition
- 1 NO
- Contact operation
- Early make, late break
- Product compatibility
- VN12; VN20
- Network type
- AC; DC
- Network frequency
- 50/60 Hz
- Mounting location
- Right
- Range compatibility
- TeSys TeSys VARIO VCFN switch disconnector
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 6 kV
- [Ith] conventional free air thermal current
- 20 A
- [Ithe] conventional enclosed thermal current
- 16 A
- Mechanical durability
- 50000 cycles
- Electrical durability
- 30000 cycles DC-1...5; 50000 cycles AC-21
- Connections - terminals
- Screw clamp terminals4 mm² - flexible - with cable end; Screw clamp terminals4 mm² - solid
- Tightening torque
- 0.7 N.m - on screw clamp terminals
- Height
- 45.5 mm
- Width
- 12 mm
- Depth
- 39 mm
- Product weight
- 0.02 kg
- Standards
- IEC 60947-3
- Product certifications
- CSA; GL; UL
- Protective treatment
- TC
- IP degree of protection
- IP20 conforming to IEC 60529
- Mechanical robustness
- Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (15 gn) conforming to IEC 60068-2-27
- Ambient air temperature for operation
- -20…50 °C
- Fire resistance
- 960 °C conforming to IEC 60695-2-1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 70
- Country of origin
- CZ
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110760019
- SAP 1000007736
- Code 8475274
