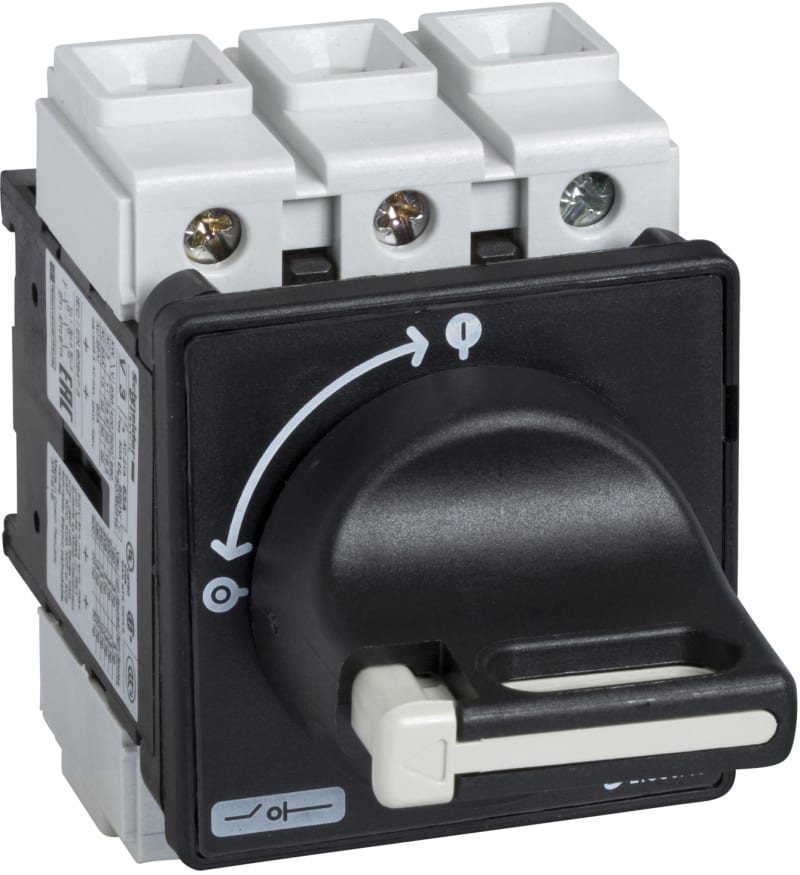

Schneider Electric TeSys Vario - switch disconnector - 20 A - on door VBF01

Schneider Electric VBF01 Main switch 3P 20A Black.

Manufacturer part number (MPN)

VBF01

EAN / GTIN

3389110201000

HS code

8536.90

Sales unit

pcs

Package quantity

24 pcs

Rated current

20 A

Range

TeSys

Product Name

TeSys VARIO

Device Short Name

VBF

Device Application

Preventive maintenance

Product Type

Switch disconnector

Device Composition

Handle; Switch

Mounting Support

Handle: door; Switch: door

Mounting Method

By 4 screws for handle

Performance Level

High performance

Number of Poles

3P

Contact Type and Composition

3 NO

[Ue] IEC Rated Operational Voltage

690 V AC 50/60 Hz

IEC Rated Operational Power in W

11 kW at 690 V (AC-23A); 3 kW at 230...240 V (AC-3); 4 kW at 400...415 V (AC-3); 5.5 kW at 500 V (AC-3); 7.5 kW at 500 V (AC-23A); 7.5 kW at 690 V (AC-3); 4 kW at 230...240 V (AC-23A); 5.5 kW at 400...415 V (AC-23A)

[Ie] Rated Operational Current

11 A AC-23 Ue: 400 V

[Ith] Conventional Free Air Thermal Current

20 A

[Ithe] Conventional Enclosed Thermal Current

16 A

Making Capacity ( I Rms)

200 A at 400 V AC-21A; 200 A at 400 V AC-22A; 200 A at 400 V AC-23A

Breaking Capacity

200 A at 400 V (AC-21A); 200 A at 400 V (AC-22A); 200 A at 400 V (AC-23A)

Rated Conditional Short Circuit Current

10 kA at 400 V - associated fuse 20 A aM; 10 kA at 400 V - associated fuse 20 A gG

[Icm] Rated Short Circuit Making Capacity

1 kA at 400 V at Ipeak

[Icw] Rated Short Time Withstand Current

300 A at 400 V duration: 1 s

[Uimp] Rated Impulse Withstand Voltage

8 kV

Suitability for Isolation

Yes

Network Type

AC; DC

Intermittent Duty Class

30

Control Type

Rotary handle

Rotary Handle Mounting Style

Direct

Handle Color

Black

Handle Front Plate Color

Black

Rotary Handle Padlocking

1 to 3 padlocks 4…8 mm

Marking

0 - 1

Mechanical Durability

100000 cycles

Electrical Durability

100000 cycles AC-21; 30000 cycles DC-1...5

IEC Terminal Connection

Power circuit: screw clamp terminals10 mm² - solid; Power circuit: screw clamp terminals6 mm² - flexible - with cable end

Tightening Torque

Power circuit: 2.1 N.m - on screw clamp terminals

Base Dimension

60 x 60 mm

Height

74 mm

Width

60 mm

Product Weight

0.25 kg

Standards

IEC 60947-3

Product Certifications

GL; UL; CCC; CSA; UKCA

Degree of Protection

IP20 conforming to IEC 60529; IP65

Protective Treatment

TC

Mechanical Robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient Air Temperature for Operation

-20…50 °C

Fire Resistance

960 °C conforming to IEC 60695-2-1

Compatibility Code

Main switch disconnector

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.90
