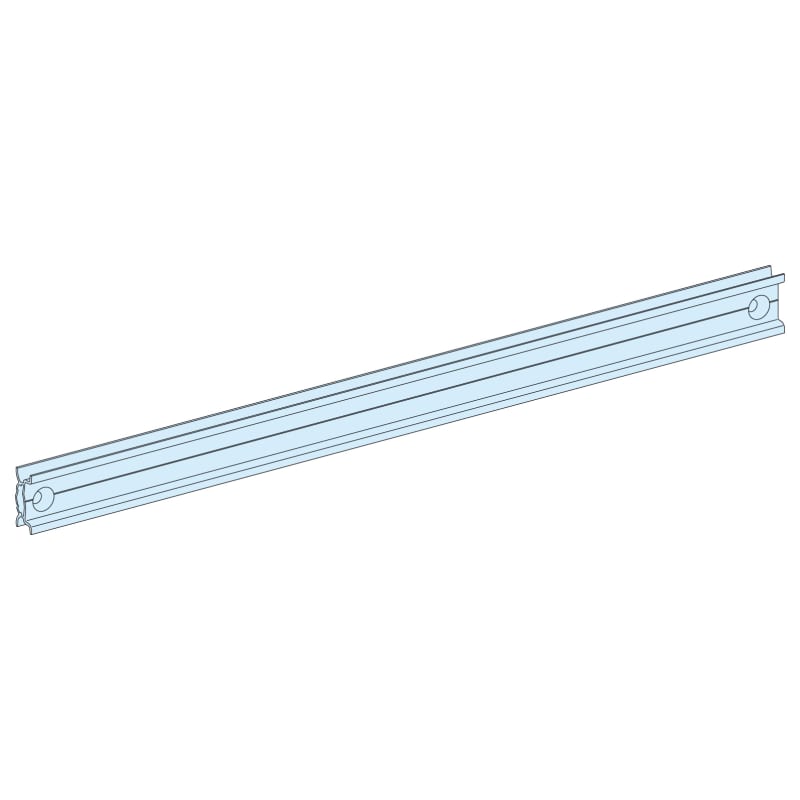

Schneider Electric LVS03004 W600 REAR MODULAR DEVICE RAIL PRISMA G
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric LVS03004 W600 REAR MODULAR DEVICE RAIL PRISMA G is listed under Enclosures / Enclosure Accessories. Sales unit: pcs; Package quantity: 12 pcs; Range: PrismaSeT; Range of product: PrismaSeT G; Product or component type: Rail; Range compatibility: PrismaSeT PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03004
- EAN / GTIN
- 3606481875440
- Sales unit
- pcs
- Package quantity
- 12 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Rail
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT G
- Type of rail
- Modular; Rear
- Installed device
- Altistart: ATS01N103/106FT; TeSys: fixed D or K contactors <= 40 A - horizontal installation; TeSys: fixed GV2 + D or K contactors <= 40 A - horizontal installation; TeSys: fixed GV3Pxx1 + LC1D40 to D65 - horizontal installation; TeSys: fixed TeSys U - horizontal installation
- Poles description
- 9 x 4P: fixed D or K contactors <= 40 A horizontal installation; 9 x 3P: fixed GV2 + D or K contactors <= 40 A horizontal installation; 7 x 3P: fixed GV3Pxx1 + LC1D40 to D65 horizontal installation; 9 x 3P: fixed TeSys U horizontal installation
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Pack enclosure - width 555 mm
- Number of vertical modules [50 mm]
- 4 module(s): ATS01N103/106FT in 600 mm Widefloor-standing enclosure; 4 module(s): ATS01N103/106FT in 600 mm Widewall-mounted enclosure; 4 module(s): ATS01N103/106FT in 555 mm WidePack enclosure; 3 module(s): D or K contactors <= 40 A, direct in 600 mm Widefloor-standing enclosure; 3 module(s): D or K contactors <= 40 A, direct in 600 mm Widewall-mounted enclosure; 3 module(s): D or K contactors <= 40 A, direct in 555 mm WidePack enclosure; 5 module(s): GV2 + D or K contactors <= 40 A, direct in 600 mm Widefloor-standing enclosure; 5 module(s): GV2 + D or K contactors <= 40 A, direct in 600 mm Widewall-mounted enclosure; 5 module(s): GV2 + D or K contactors <= 40 A, direct in 555 mm WidePack enclosure; 7 module(s): GV3Pxx1 + LC1D40 to D65, direct in 600 mm Widefloor-standing enclosure; 7 module(s): GV3Pxx1 + LC1D40 to D65, direct in 600 mm Widewall-mounted enclosure; 7 module(s): GV3Pxx1 + LC1D40 to D65, direct in 555 mm WidePack enclosure; 5 module(s): TeSys U, direct in 600 mm Widefloor-standing enclosure; 5 module(s): TeSys U, direct in 600 mm Widewall-mounted enclosure; 5 module(s): TeSys U, direct in 555 mm WidePack enclosure; 4 module(s): TeSys U, direct in 600 mm Widefloor-standing enclosure; 4 module(s): TeSys U, direct in 600 mm Widewall-mounted enclosure; 4 module(s): TeSys U, direct in 555 mm WidePack enclosure
- 9 mm pitches
- 48
- Quantity per set
- Set of 1
- Height
- 35 mm
- Width
- 465 mm
- Depth
- 16 mm
- Product weight
- 0.16 kg
- Colour
- Natural
- Material
- Metal
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 1.500 cm
- Package 1 Width
- 3.700 cm
- Package 1 Length
- 47.300 cm
- Package 1 Weight
- 142.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 12
- Package 2 Height
- 8.000 cm
- Package 2 Width
- 12.400 cm
- Package 2 Length
- 47.500 cm
- Package 2 Weight
- 1.828 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 576
- Package 3 Height
- 44.500 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 99.750 kg
- Country of origin
- FR
- Warranty (in months)
- 18
Cross References
- EAN 3606481875440
- SAP 1200546862
- Code 82879636
