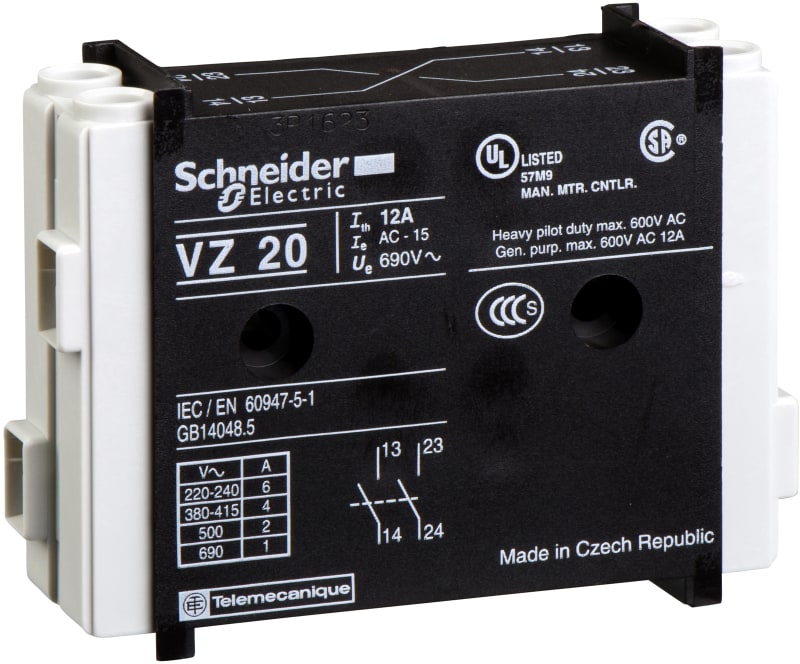

Schneider Electric VZ20 TeSys VARIO - auxiliary contact block - 1 NO + 1 NO
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric VZ20 TeSys VARIO - auxiliary contact block - 1 NO + 1 NO is listed under Electrical Components / Circuit Breaker Accessories. Sales unit: pcs; Package quantity: 69 pcs; Range: TeSys; Device short name: VZ; Product or component type: Auxiliary contact block; Performance level: High performance.
Technical Specifications
- Manufacturer part number (MPN)
- VZ20
- EAN / GTIN
- 3389110551976
- Sales unit
- pcs
- Package quantity
- 69 pcs
- Range
- TeSys
- Device short name
- VZ
- Product or component type
- Auxiliary contact block
- Performance level
- High performance
- Contacts type and composition
- 1 NO + 1 NO
- Product compatibility
- V3; V01; V2; V0; V6; V4; V1; V5; V02
- Network type
- DC; AC
- Network frequency
- 50/60 Hz
- Mounting location
- Left; Right
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 8 kV
- [Ith] conventional free air thermal current
- 12 A
- [Ithe] conventional enclosed thermal current
- 10 A
- Mechanical durability
- 100000 cycles
- Electrical durability
- 30000 cycles DC-11; 100000 cycles AC-15
- Connections - terminals
- Screw clamp terminals 2 cable(s) 0.75…1.5 mm² - flexible - with cable end; Screw clamp terminals 2 cable(s) 1…2.5 mm² - solid
- Tightening torque
- 0.7 N.m - on screw clamp terminals
- Height
- 65 mm
- Width
- 20 mm
- Depth
- 48.5 mm
- Product weight
- 0.05 kg
- Standards
- IEC 60947-5
- Product certifications
- GL; UL; CSA; UKCA
- Protective treatment
- TC
- IP degree of protection
- IP20 conforming to IEC 60529
- Ambient air temperature for operation
- -20…50 °C
- Fire resistance
- 960 °C conforming to IEC 60695-2-1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 5.500 cm
- Package 1 Length
- 9.000 cm
- Package 1 Weight
- 54.400 g
- Unit Type of Package 2
- S02
- Number of Units in Package 2
- 69
- Package 2 Height
- 15.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 4.001 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110551976
- SAP 1000010213
- Code 880587
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric A9F07163 ACTI9 IC60H Miniature Circuit Breaker 1P 63 A, Curve C
Schneider Electric
SIDEPLATER-2 pcs- IP55-D400-PRISMASET P
LVS08755
Schneider Electric
Schneider Electric Modbus cable, ComPacT NSX, BSCM Modbus SL cord, 1.3M length LV434222
Schneider Electric
SIGNALL.M/TR.WHITE 230/240V (XB4BV41)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 3 poles, TMD trip unit 63A C10N3TM063
Schneider Electric

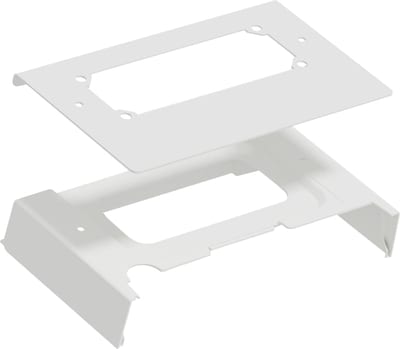

Flange Plate with Cut-Out for FL21 Flanges, Width 300 mm, PrismaSeT G, Green Top
LVS08853
Schneider Electric

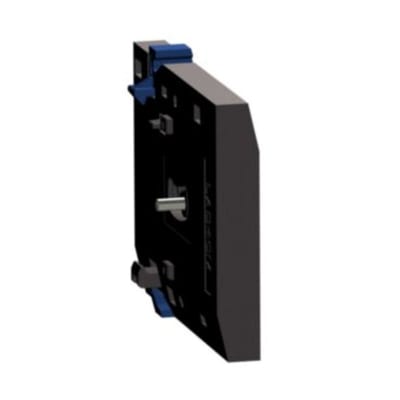

Schneider Electric LAD4CM Mechanical interlock, TeSys D contactors LC1D40A-D80A LC1DT60A-DT80A
Schneider Electric

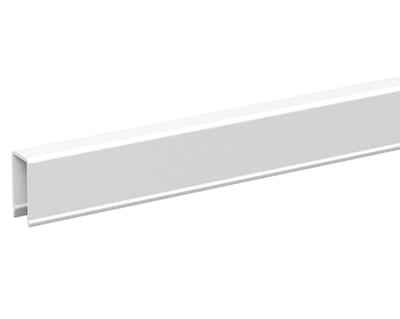

Ventilation Strip G10, 2.5 m, RAL 9010
