SIDEPLATER-2 pcs- IP55-D400-PRISMASET P
Pricing
Request a quote
We reply within 24 hours
Product Description

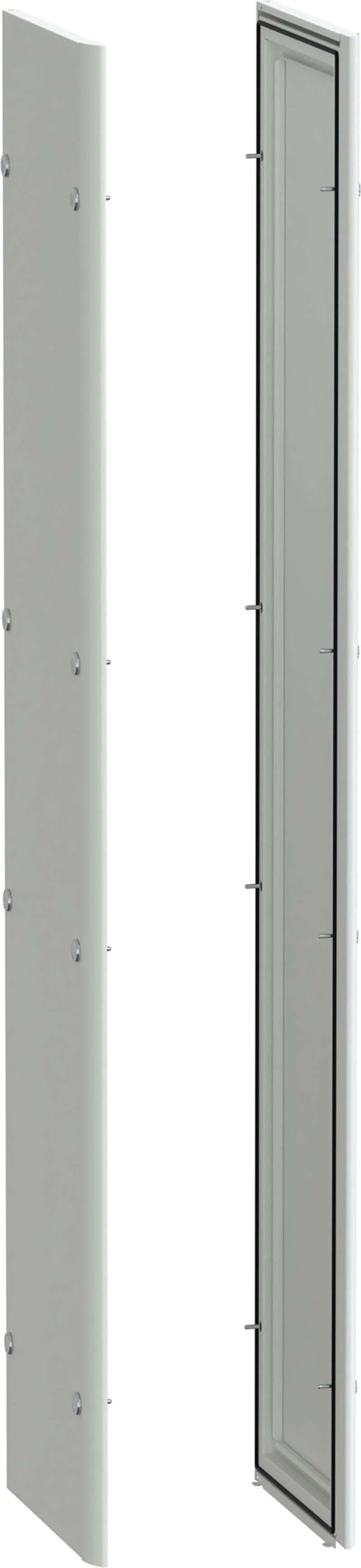

Schneider Electric LVS08755 — Side panel, PrismaSeT P, for enclosure D 400mm, IP55, set of 2 (left/right).
Technical Specifications
- Manufacturer part number (MPN)
- LVS08755
- EAN / GTIN
- 3606481877857
- Sales unit
- pcs
- IP rating
- IP55
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Side panel
- Range compatibility
- PrismaSeT PrismaSeT P enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure; Indoor enclosure
- installation description
- Cubicle - width 400 mm, depth 400 mm; Cubicle - width 650 mm, depth 400 mm; Cubicle - width 800 mm, depth 400 mm
- Kit composition
- 2 side panel; quarter-turn fasteners
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 400 mm
- Height
- 2000 mm
- Product weight
- 26.3 kg
- Quantity per set
- Set of 2
- IP degree of protection
- IP55 for enclosure
- IK degree of protection
- IK10
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.000 cm
- Package 1 Width
- 48.000 cm
- Package 1 Length
- 207.000 cm
- Package 1 Weight
- 27.337 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 10
- Package 2 Height
- 55.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 202.000 cm
- Package 2 Weight
- 293.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 400 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 40
- With lock
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481877857
- SAP 1200547359
- Code 82880692
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Modbus cable, ComPacT NSX, BSCM Modbus SL cord, 1.3M length LV434222
Schneider Electric
SIGNALL.M/TR.WHITE 230/240V (XB4BV41)
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100N, 50KA/415VAC, 3 poles, TMD trip unit 63A C10N3TM063
Schneider Electric
Flange Plate with Cut-Out for FL21 Flanges, Width 300 mm, PrismaSeT G, Green Top
LVS08853
Schneider Electric
Schneider Electric LAD4CM Mechanical interlock, TeSys D contactors LC1D40A-D80A LC1DT60A-DT80A
Schneider Electric
Ventilation Strip G10, 2.5 m, RAL 9010
5590424
Schneider Electric
Schneider Electric Motor circuit breaker, TeSys GV2, 3P, 0.25-0.4 A, thermal magnetic, screw clamp terminals GV2RT03
Schneider Electric

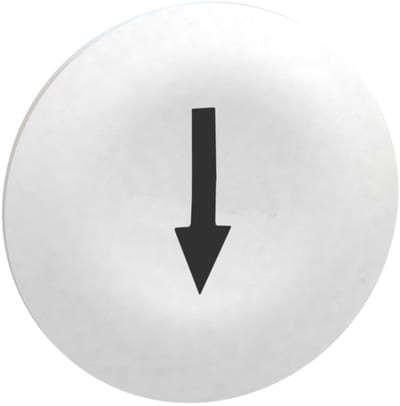

Schneider Electric ZBA7134 white cap marked arrow for rectangular multiple-headed pushbutton Ø22
