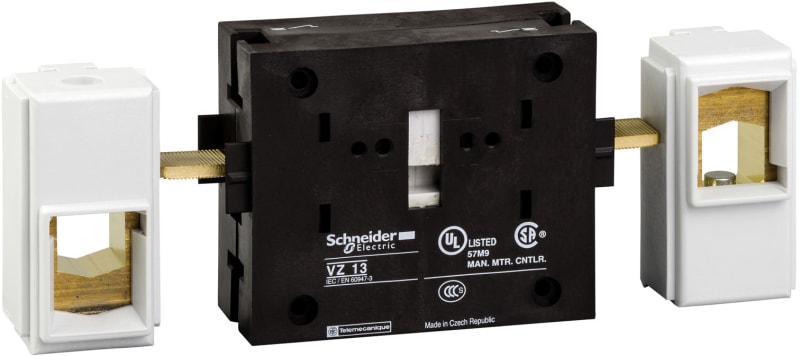

Neutral pole 125/175
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VZ13 Neutral POLE 125/175A V5/V6.
Technical Specifications
- Manufacturer part number (MPN)
- VZ13
- EAN / GTIN
- 3389110551921
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range
- TeSys
- Device short name
- VZ
- Product or component type
- Additional neutral block
- Performance level
- High performance
- Poles description
- 1N
- Contacts type and composition
- 1 NO
- Contact operation
- Early make, late break
- Product compatibility
- V5; V6
- Range compatibility
- TeSys TeSys VARIO switch disconnector
- Network type
- AC; DC
- Network frequency
- 50/60 Hz
- Mounting location
- Left; Right
- [Ue] rated operational voltage
- 690 V AC 50/60 Hz
- [Uimp] rated impulse withstand voltage
- 6 kV
- [Ith] conventional free air thermal current
- 175 A
- Mechanical durability
- 30000 cycles
- Electrical durability
- 30000 cycles DC-1...5; 30000 cycles AC-21
- Connections - terminals
- Screw clamp terminals70 mm² - flexible - with cable end; Screw clamp terminals95 mm² - solid
- Tightening torque
- 22.6 N.m - on screw clamp terminals
- Height
- 125 mm
- Width
- 30 mm
- Depth
- 63 mm
- Product weight
- 0.25 kg
- Standards
- IEC 60947-3
- Product certifications
- UL; CSA; GL; UKCA
- Protective treatment
- TC
- IP degree of protection
- IP20 conforming to IEC 60529
- Mechanical robustness
- Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (15 gn) conforming to IEC 60068-2-27
- Ambient air temperature for operation
- -20…50 °C
- Fire resistance
- 960 °C conforming to IEC 60695-2-1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.500 cm
- Package 1 Width
- 7.000 cm
- Package 1 Length
- 12.000 cm
- Package 1 Weight
- 256.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 30
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 8.190 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110551921
- SAP 1000006772
- Code 8474008
