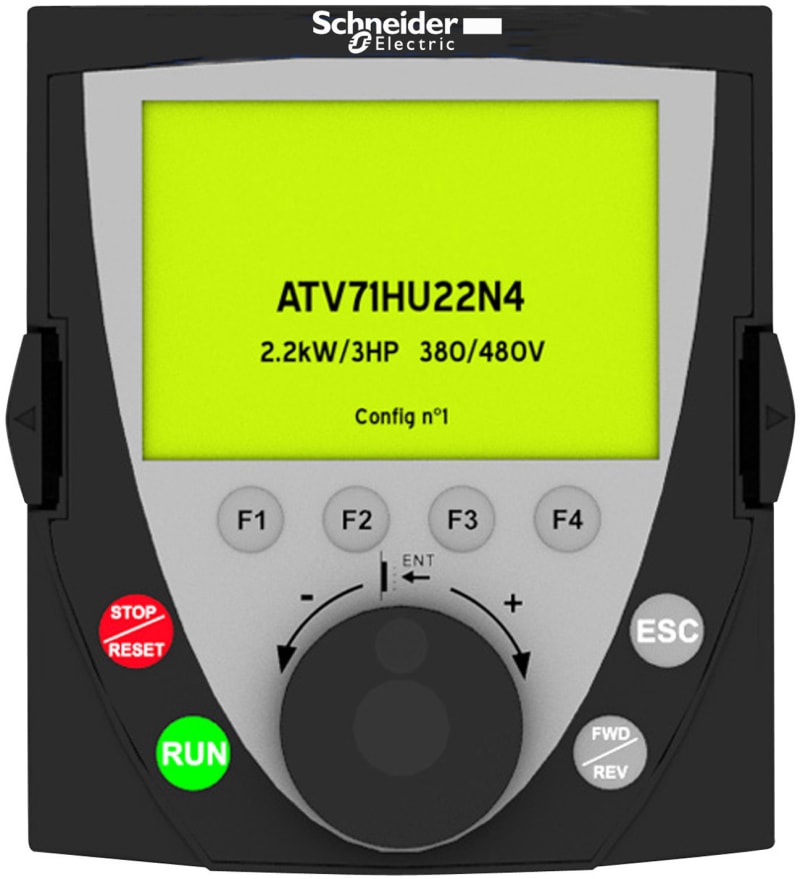

Schneider Electric remote graphic terminal - 240 x 160 pixels - IP54 VW3A1101
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric VW3A1101 Graphic display.
Technical Specifications
- Manufacturer part number (MPN)
- VW3A1101
- EAN / GTIN
- 3389118069305
- Sales unit
- pcs
- Package quantity
- 7 pcs
- Range of product
- Altivar
- Range compatibility
- Altivar 312; Altivar 61; Altivar Lift; Altivar 32; Altivar Machine ATV320; Altivar 312 Solar; Altivar 212; Altivar 71; Altivar 61Q; Altivar 71Q
- Product or component type
- Graphic terminal
- Accessory / separate part category
- Display and signalling accessories
- Accessory / separate part type
- Display terminal
- Accessory / separate part destination
- Variable speed drive
- Product specific application
- To control, adjust and configure the drive; To save and download configurations; To display the current values
- IP degree of protection
- IP54
- Mounting location
- On the door of an enclosure
- User language
- Italian; English; French; Spanish; German; Chinese
- Messages display capacity
- 8 lines
- Pixel resolution
- 240 x 160
- Product weight
- 0.145 kg
- Ambient air temperature for operation
- -15…50 °C
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.800 cm
- Package 1 Width
- 17.500 cm
- Package 1 Length
- 23.500 cm
- Package 1 Weight
- 306.000 g
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 12
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 4.813 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 64
- Package 3 Height
- 105.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 36.490 kg
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Control panel
- Accessory
- Yes
- Spare part
- No
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 3389118069305
- SAP 1000254533
- Code 8222589
Product Documentation
More from Schneider Electric
Schneider Electric

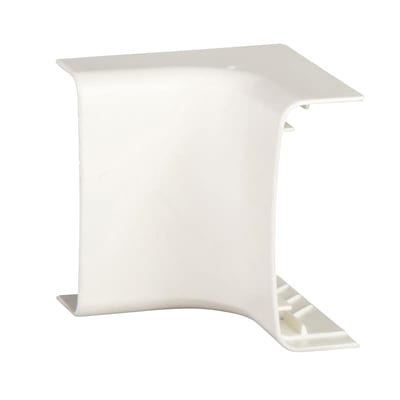

OL Internal corner 2560 HF PC/ABS Pure white
ISM14601P
Schneider Electric

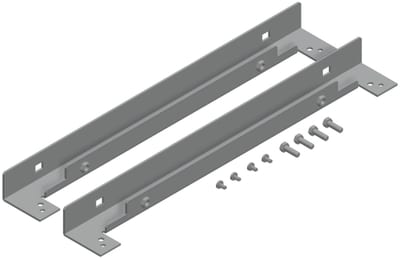

Schneider Electric PanelSeT SF Side-Entry Mounting Rails, W1000, Pair
NSYSMPSE10
Schneider Electric

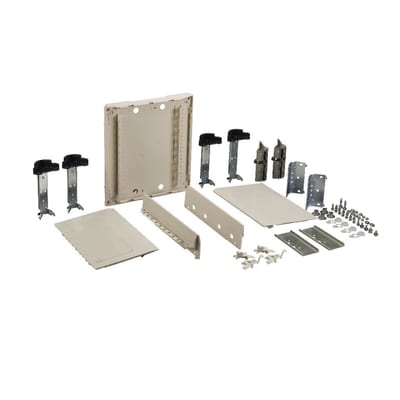

Schneider Electric Wall mounted duct, PrismaSeT G, W 300mm, H 1230mm (24M), IP30, without side plates LVS08178
Schneider Electric

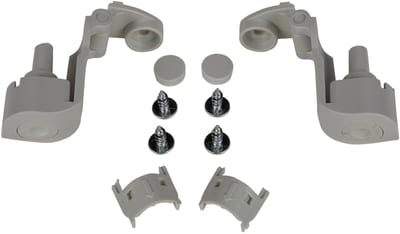

2 Hinges FOR Cover HT40MM
NSYAEDH40TB
Schneider Electric
Schneider Electric Reversing power base, TeSys U, 3P, 12A/690V, coil 110-240V AC/DC LU2B12FU
Schneider Electric

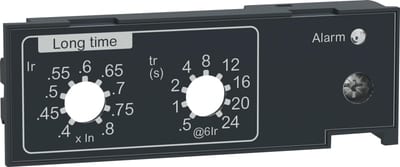

Schneider Electric Long time rating plug, ComPacT NS, IEC, MicroLogic control units, low setting (Ir = in x 0.4 to 0.8) C33543
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 160N, 50KA/415VAC, 3 poles, TMD trip unit 160A, EverLink lugs C12N3TM160L
Schneider Electric

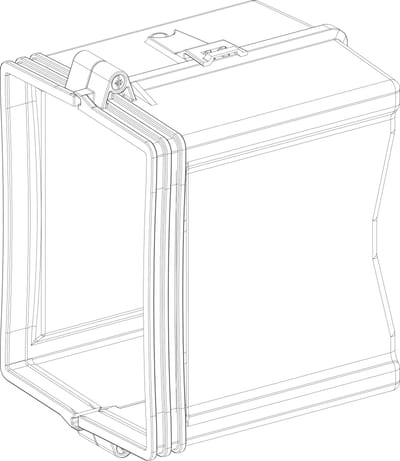

End termination 100-400A
