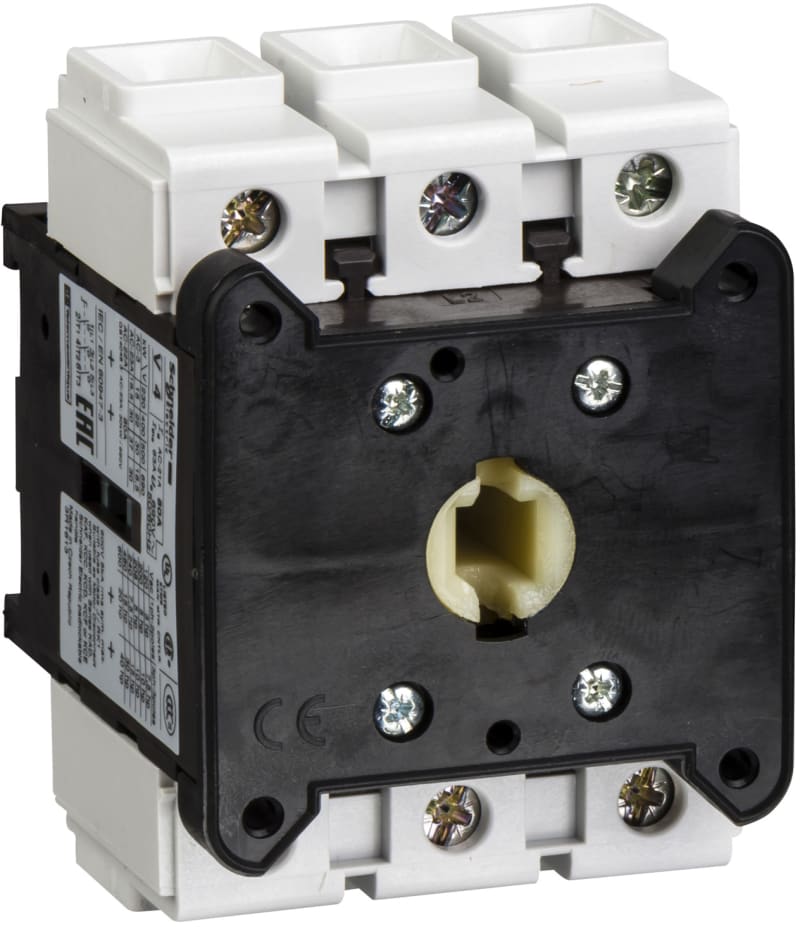

Switch Block 175A

Schneider Electric V6 Bryterblokk 3P 175A Without Grip.

Manufacturer part number (MPN)

V6

EAN / GTIN

3389110551747

Sales unit

pcs

Package quantity

6 pcs

Range

TeSys

Product Name

TeSys VARIO

Device Short Name

V

Product Type

Switch body

Mounting Support

Symmetrical rail; Plate

Performance Level

High performance

Number of Poles

3P

Contact Type and Composition

3 NO

Network type

AC; DC

Network frequency

50/60 Hz

[Ue] IEC Rated Operational Voltage

690 V AC 50/60 Hz

IEC Rated Operational Power in W

30 kW at 230...240 V (AC-3); 37 kW at 400...415 V (AC-3); 37 kW at 690 V (AC-3); 45 kW at 500 V (AC-3); 45 kW at 690 V (AC-23A); 55 kW at 500 V (AC-23A); 30 kW at 230...240 V (AC-23A); 45 kW at 400...415 V (AC-23A)

[Ie] Rated Operational Current

83 A AC-23 Ue: 400 V

[Ith] Conventional Free Air Thermal Current

175 A

[Ithe] Conventional Enclosed Thermal Current

140 A

Making capacity ( I Rms)

1750 A at 400 V AC-22A; 1750 A at 400 V AC-23A; 1600 A at 400 V AC-21A

Breaking Capacity

1400 A at 400 V (AC-21A); 1400 A at 400 V (AC-22A); 1400 A at 400 V (AC-23A)

Rated Conditional Short Circuit Current

10 kA at 400 V - associated fuse 200 A aM; 10 kA at 400 V - associated fuse 200 A gG

[Icm] Rated Short Circuit Making Capacity

2.8 kA at 400 V at Ipeak

Intermittent duty class

30

Suitability for isolation

Yes

[Uimp] rated impulse withstand voltage

8 kV

[Icw] rated short-time withstand Rms current

2100 A at 400 V duration: 1 s

Mechanical Durability

30000 cycles

Electrical Durability

30000 cycles AC-21; 30000 cycles DC-1...5

IEC Terminal Connection

Power circuit: screw clamp terminals70 mm² - flexible - with cable end; Power circuit: screw clamp terminals95 mm² - solid

Tightening Torque

Power circuit: 22.6 N.m - on screw clamp terminals

Height

125 mm

Width

90 mm

Depth

90 mm

Product Weight

0.9 kg

Standards

IEC 60947-3

Product Certifications

UL; CSA; GL; UKCA

Degree of Protection

IP20 conforming to IEC 60529

Protective Treatment

TC

Mechanical Robustness

Vibrations 10...150 Hz (1 gn) conforming to IEC 60068-2-6; Shocks 11 ms (30 Gn) conforming to IEC 60068-2-27

Ambient Air Temperature for Operation

-20…50 °C

Fire Resistance

960 °C conforming to IEC 60695-2-1

Number of Units in Package 1

1

Number of Units in Package 2

6

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50
