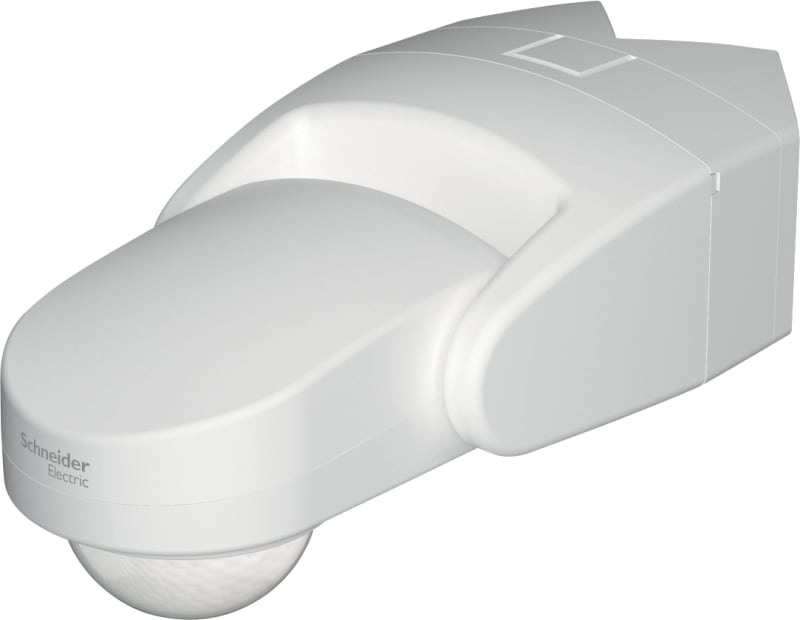

Schneider Electric ARGUS standard outdoor 360° - carton CCT56P008
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric CCT56P008 Argus motion detector 360° IP55 for ceiling-/wall mounting. Polar-white.
Technical Specifications
- Manufacturer part number (MPN)
- CCT56P008
- EAN / GTIN
- 3606480145162
- Sales unit
- pcs
- Package quantity
- 30 pcs
- IP rating
- IP55
- Range of product
- ARGUS standard movement detector
- Range
- ARGUS
- Product or component type
- Movement detector
- Load type
- Incandescent lamp: 1000 W, AC; Low voltage halogen lamp with wire-wound transformer: 500 VA; Low voltage halogen lamp with electronic transformer: 315 VA; Fluorescent tube: 250 VA, AC; Compact fluorescent lamp: 4 x 23 W, AC; Capacitive: : 6 A, 28 µF, AC; Capacitive: : 10 A, 21 µF, AC; Halogen lamp: 800 W, AC
- Colour tint
- White
- Type of packing
- Carton
- [Ue] rated operational voltage
- 220...240 V
- Network frequency
- 50 Hz
- Output current
- 10 A
- Type of setting
- Time adjustment; Light sensitivity adjustable
- Time delay
- 5 s...20 min
- Light intensity adjustment
- 5…2000 lux
- Horizontal detection angle
- 0…360 °
- detection range
- Frontal: 12 m
- Material
- PC (polycarbonate) matt
- Device mounting
- Surface
- Mounting height
- 2.5 m
- IP degree of protection
- IP55
- Ambient air temperature for operation
- -15…40 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Number of Units in Package 3
- 360
- Warranty (in months)
- 18
- Nominal voltage
- 230 V
- Mounting method
- Surface mounted
- Colour
- White
- Width
- 142.5 mm
- Model
- Movement sensor
- Height
- 88 mm
- Depth
- 76 mm
- Connection type
- Screwed terminal
- Surface protection
- Untreated
- Voltage type
- AC
- Switch-off delay
- 1200 s
- Material quality
- Thermoplastic
- Max. reach frontally
- 12 m
- Max. reach sideways
- 12 m
- Max. switching power
- 1000 W
- Max. starting current
- 10 A
- Diameter reach on floor
- 7.4 m
- Scan angle
- 360 °
- Impact strength
- IK02
- Degree of protection (IP)
- IP55
- Surface finishing
- Glossy
- Min. switch-on time
- 5 s
- Max. duty cycle
- 20 min
- Suitable for wall mounting
- Yes
- Optimum mounting height
- 2.5 m
- With DALI interface
- No
- Min. starting current
- 0 A
- Min. depth of built-in installation box
- 0 mm
- Movement sensor/presence detector technology
- Passive infrared
- Sensor type
- Passive infrared
- Country of origin
- China
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3606480145162
- SAP 1000498210
- Code 8985248
Product Documentation
More from Schneider Electric
Schneider Electric

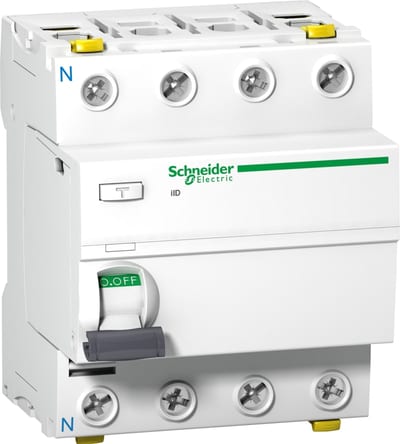

J.F.BR IID 4P 100A 100MA A-KL
A9Z22491
Schneider Electric

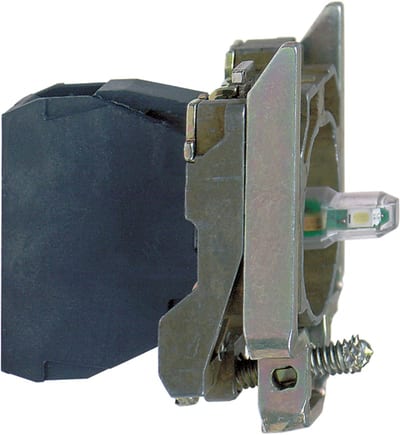

Schneider Electric Complete body/light block assembly, Harmony XB4, flashing, with body/fixing collar, universal LED, 24V AC DC ZB4BV18B1
Schneider Electric

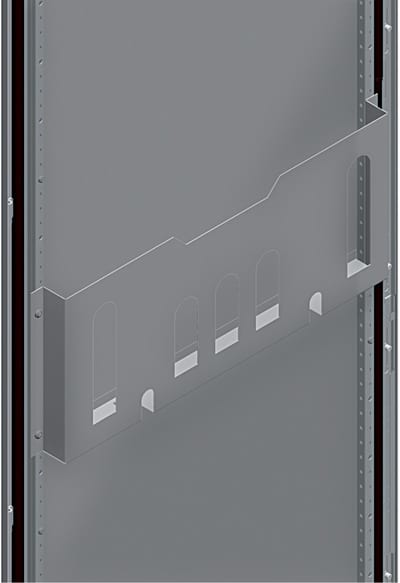

Schneider Electric Document pocket, PanelSeT SFN, PanelSeT SF, steel, W600MM NSYSDP6M
Schneider Electric

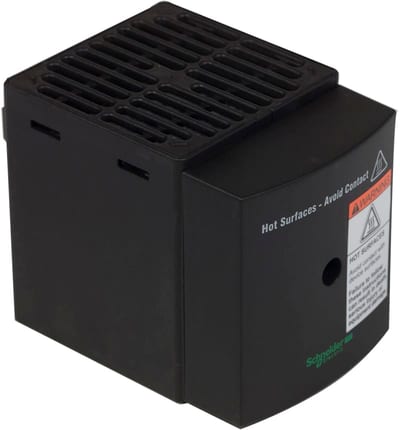

Schneider Electric ClimaSys PTC heating resistance 177W 230V with fan insulate NSYCR170W230VVC
Schneider Electric

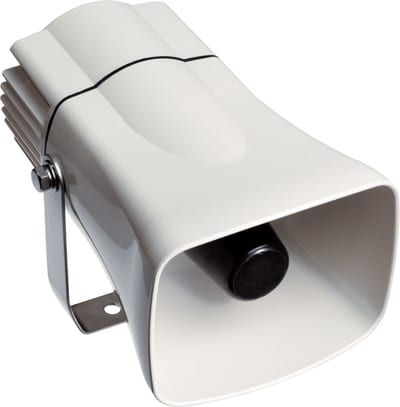

Schneider Electric Multi-sound Siren XVS14BMW
Schneider Electric

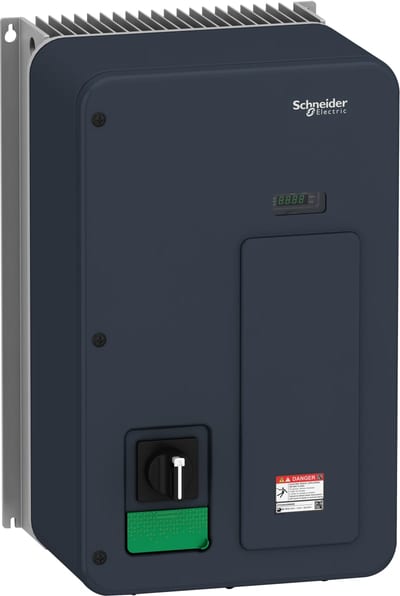

Schneider Electric Variable speed drive, Altivar Machine ATV320, 0.55 kW, 380...500 V, 3 phases, enclosed ATV320U06N4WS
Schneider Electric

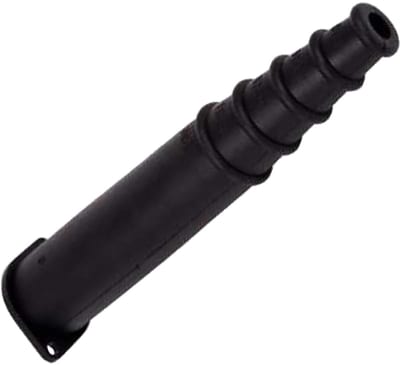

Schneider Electric protective cable sleeve - XAC-A - 8..26 mm XACA960
Schneider Electric

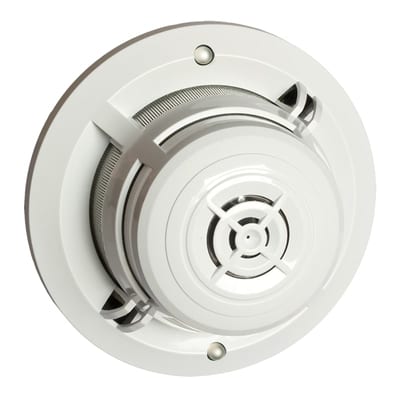

Multikriteriedetektor AP200 2251CTLE-W
