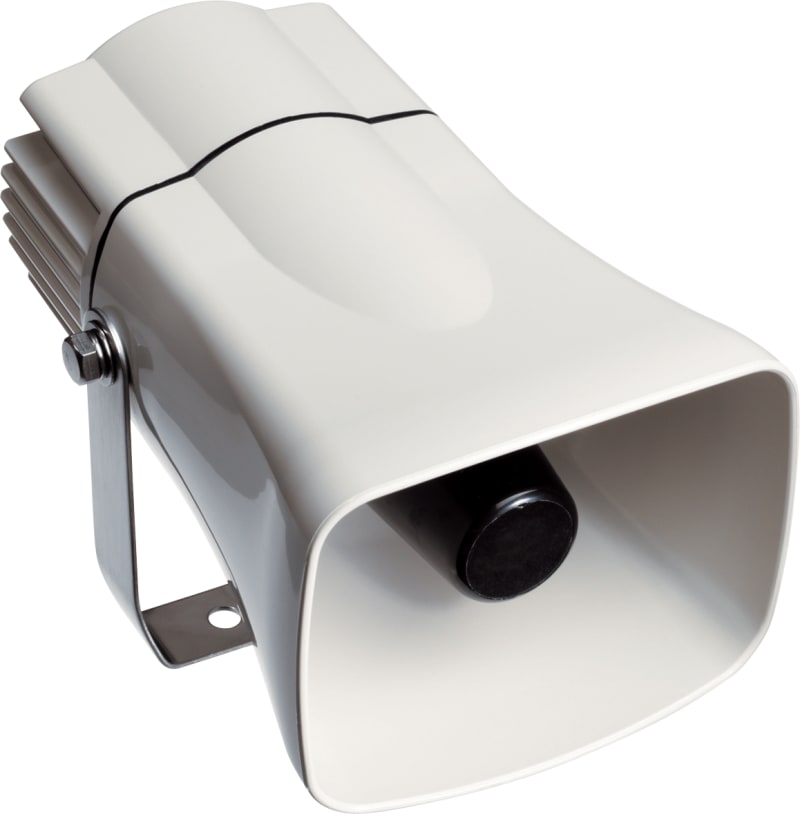

Schneider Electric Multi-sound Siren XVS14BMW
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVS14BMW Siren 105dB 43 toner 12/24VDC.
Technical Specifications
- Manufacturer part number (MPN)
- XVS14BMW
- EAN / GTIN
- 3606480032943
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Voltage
- 12/24 V DC
- Range of product
- Harmony XVS
- Product or component type
- Multisound siren
- Device short name
- XVS
- Colour
- White
- Material
- ASA (Acrylonitrile Styrene Acrylate): front; ASA (Acrylonitrile Styrene Acrylate): back; PC (polycarbonate): back cover
- Product weight
- 1 kg
- Marking
- CE
- Mounting support
- Bracket
- fixing mode
- 3 holes Ø 9 mm
- [Uimp] rated impulse withstand voltage
- 0.8 kV
- Current consumption
- 350 mA at 24 V; 250 mA at 12 V
- Electrical connection
- Cable: 6.5…8.5 mm, 0.33 mm² / 22 AWG (signalling circuit); Cable: 6.5…8.5 mm, 0.52 mm² / 20 AWG (power circuit)
- Width
- 140 mm
- Height
- 114 mm
- Depth
- 223 mm
- Signalling type
- 43 tones siren
- Standards
- IEC 61000-6-2; EN 55014-2; EN 55022; IEC 61000-6-3
- Product certifications
- UL
- Protective treatment
- TC
- Ambient air temperature for storage
- -35…70 °C
- Ambient air temperature for operation
- -10…50 °C
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP53 conforming to IEC 60529
- [Us] rated supply voltage
- 12 V DC; 24 V DC
- Noise level
- 0…105 dB (continuous or intermittent tone) at 1 m
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- ID
- Warranty (in months)
- 18
- Nominal voltage
- 24 V
- Mounting method
- Surface mounting
- Housing colour
- White
- Type of current
- AC/DC
- Loudness
- 105 dB
- Electricity consumption
- 0.35 A
- Type of acoustic signal
- Programmable
- Degree of protection (IP)
- IP53
- For Ex-zone gas
- None
- Suitable for wall mounting
- No
- For Ex-zone dust
- None
- Type of acoustic signal device
- Horn
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3606480032943
- SAP 1000707730
- Code 8204855
Product Documentation
