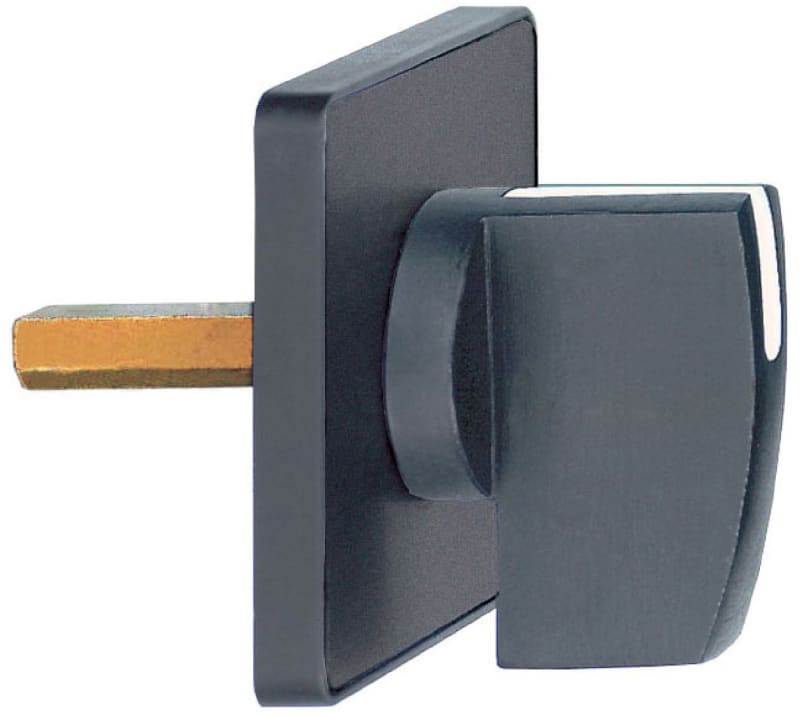

BETJ.DEL FOR Cam switch (KAE1H)

Schneider Electric KAE1H Betj.Del For Cam Switch.

Manufacturer part number (MPN)

KAE1H

EAN / GTIN

3389110980639

Sales unit

pcs

Package quantity

15 pcs

Range of product

Harmony Series K

Product or component type

Cam switch operating head

Component name

KAE

Product compatibility

Rear mounting bodies 12 and 20 A by 4 holes

Cam switch head type

With front plate 45 x 45 mm

Type of operator

Black handle, length = 35 mm

Rotary handle padlocking

Without

Presentation of legend

With matt black legend

Mechanical durability

1000000 cycles

CAD overall width

45 mm

CAD overall height

45 mm

CAD overall depth

60 mm

Length

35 mm

Product weight

0.029 kg

Compatibility code

KAE

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

IP degree of protection

IP40 conforming to IEC 529; IP40 conforming to NF C 20-010

Number of Units in Package 1

1

Number of Units in Package 2

32

Country of origin

CZ

Warranty (in months)

18

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP65/IP67

Material front ring

Plastic

With front ring

Yes

Construction type lens

Square

Type of control element

Wing knob

Colour control element

Black

Switching function latching

No

HS Code

8538.90

• EAN 3389110980639
• SAP 1000036021
• Code 8729044
