Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W2000MM, 3 rows, set of 2 NSYSUCR90200
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSUCR90200 Spacial SF/SM - 2 universal rails - Cross-arm - B:90 mm - H:2000 - 3 rows.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSUCR90200
- EAN / GTIN
- 3606485133621
- Sales unit
- pcs
- Package quantity
- 2 pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Universal cross rail
- Application
- Multi-purpose
- Nominal dimensions of the housing
- - H: 2000 mm
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM; PanelSeT PanelSeT SFX; PanelSeT PanelSeT SMX
- Mounting location
- On structure of enclosure; Between cross rails
- Mounting support
- Adaptation profile, on SM enclosures
- Installation direction
- Vertical
- Device composition
- fixing elements; 2 cross rails; 4 supports
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Galvanized
- Fixing mode
- By screws
- Adjustment
- Adjustable with a pitch of 25 mm
- Number of horizontal rows
- 3
- Height
- Nominal: 2000 mm; Useful: 1907 mm
- Width
- 90 mm
- Depth
- 27 mm
- thickness
- 1.5 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 100
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building height
- 2000 mm
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485133621
- SAP 1000470377
- Code 8579952
Product Documentation
More from Schneider Electric
Schneider Electric
Plinth 7035 f PLM 200X456X302
NSYZM253G
Schneider Electric
Schneider Electric Pilot light, Harmony XB5, grey plastic, white, 22mm, universal LED, plain lens, 24V AC DC, compact push in terminals XB5AVB15
Schneider Electric
Schneider Electric Hexagonal spacers, PrismaSeT G and P, M6, H9 mm, Set of 4 LVS03195
Schneider Electric

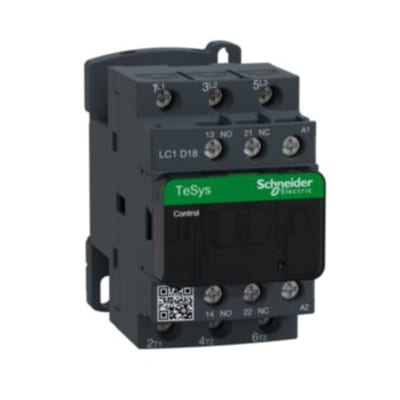

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 18A, 42V AC 50/60Hz coil, screw clamp terminals LC1D18D7
Schneider Electric

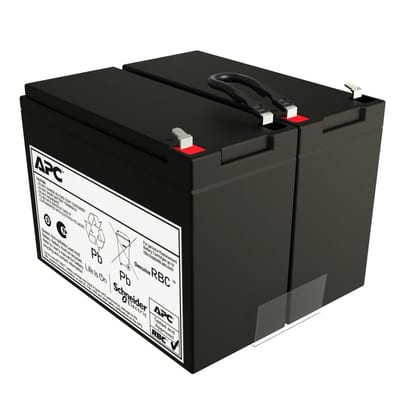

Schneider Electric APC Replacement Battery Cartridge, VRLA, 10AH, 24V DC, 2-Year warranty APCRBCV207
Schneider Electric

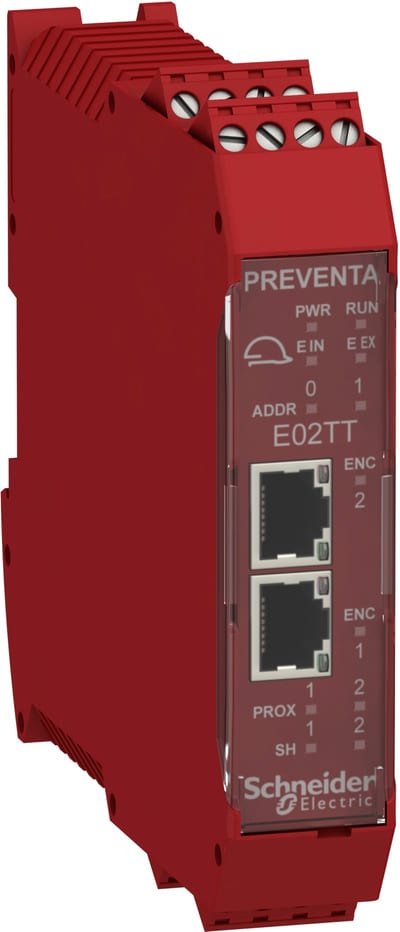

Schneider Electric Speed Monitoring Expansion Module for 2 TTL Encoders, Screw Terminals
XPSMCMEN0200TT
Schneider Electric

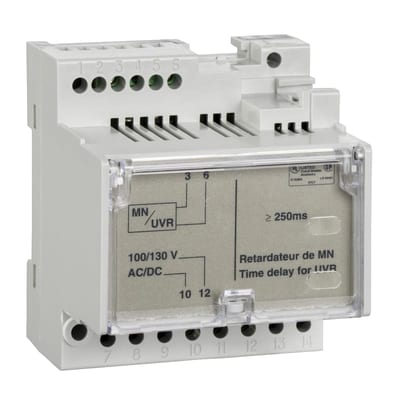

Fast Time delay for MN 10
33684
Schneider Electric

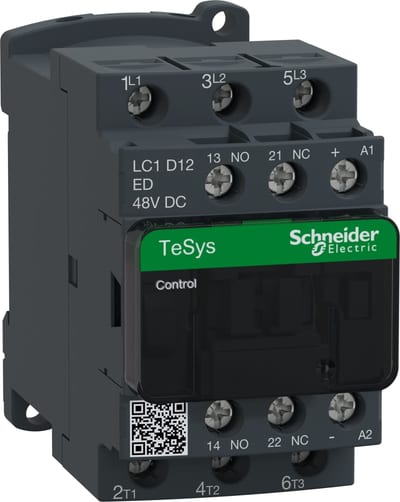

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/3E, <=440V, 12A, 48V DC coil, screw clamp terminals LC1D12ED
