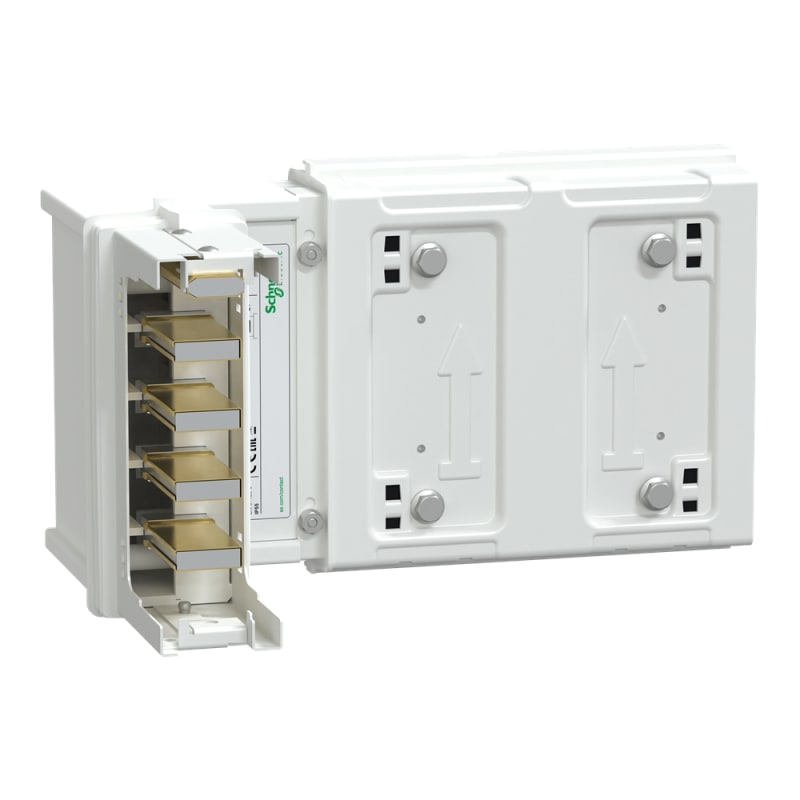

Angle H/V 100-250A (KSA250DLC401)

Schneider Electric KSA250DLC401 Canalis KSA 250A - angle - right-hand/left-hand - 3L+N+PE - standard - white.

Manufacturer part number (MPN)

KSA250DLC401

EAN / GTIN

3606489602000

Sales unit

pcs

Package quantity

18 pcs

Range of product

Canalis

Product name

KS

Device short name

KSA

Offer type

Classic

Product or component type

Elbow

Busbar description

Standard

Product compatibility

Canalis KSA busbar trunking 100…250 A

Device application

Change direction

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

[Ie] rated operational current

250 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

Operating angle

90 °

Direction change type

direction 1: edgewise to right - ; direction 2: edgewise to left -

Colour

White (RAL 9001)

Dimension type

Fix

Length

165 mm for side A; 165 mm for side B

Width

54 mm

Height

146 mm

Product weight

3.6 kg

Mounting location

On trunking

Mounting position

Any position

Electrical connection

Lubricated sliding contact

mounting mode

By screws

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

18.0 cm

Package 1 Width

22.5 cm

Package 1 Length

27.0 cm

Package 1 Weight

3.7 kg

Unit Type of Package 2

P06

Number of Units in Package 2

18

Package 2 Height

59.0 cm

Package 2 Width

60.0 cm

Package 2 Length

80.0 cm

Package 2 Weight

73.0 kg

Country of origin

FR

Warranty (in months)

18

Model

Elbow box

Flexible

No

Number of poles

5

Number of conductors (without earthing)

4

Rated current AC 50 Hz

250 A

Rated voltage AC 50 Hz

230–690 V

RAL-number

9001

Degree of protection (IP)

IP55

HS Code

8536.90

• EAN 3606489602000
• SAP 1200422155
• Code 82470997
