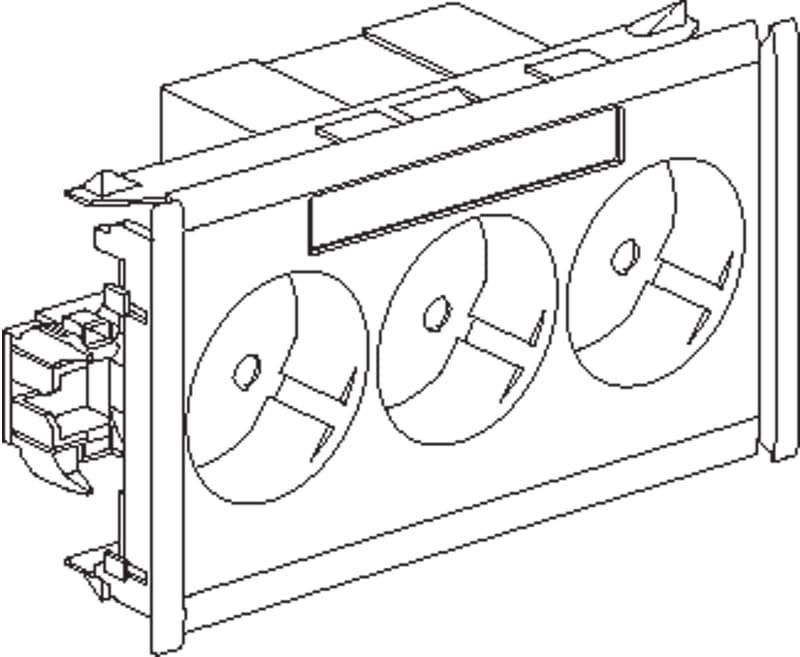

CYB-Master Triple MERK.DATA White

Schneider Electric 5941515 Cyb-master triple marking.data h.

Manufacturer part number (MPN)

5941515

EAN / GTIN

7332418017329

Sales unit

pcs

Nominal current

16 A

Nominal voltage

250 V

Mounting method

Wall duct

Assembly arrangement

Basic element with complete housing

Colour

White

Model

Socket outlet with protective contact CEE 7/3 (type F)

Halogen free

Yes

Cover

Central cover plate

Number of units

2

Lockable

No

With hinged lid

No

Connection type

Screwed terminal

Surface protection

Untreated

With signal lamp

No

Number of socket outlets

3

Number of phases

1

With enhanced contact protection

Yes

Frequency

50–60 Hz

With on/off switch

No

Protective contact

Yes

Label space/information surface

Yes

Eject-mechanism

No

Material quality

Thermoplastic

Rotated central insert

No

Overvoltage protection

No

Fault current protection

No

Special power supply

No special power supply

Insulated mounting

Yes

Material

Plastic

Type of fastening

Snap mounting (engagement)

Imprint/indication

Data

RAL-number (similar)

1013

Impact strength

IK05

Concurrently switching neutral conductor

No

Transparent

No

Surface finishing

Matt

With miniature fuse

No

With loop through function

No

Suitable for degree of protection (IP)

IP20

Phase pickup

None

Device width

39 mm

Device height

84 mm

Device depth

39 mm

With function lighting

No

With orientation lighting

No

With built-in USB power supply

No

IFTTT support available

No

Number of active contacts (round)

6

Protective earth pin round

No

Compatible with Apple HomeKit

No

Compatible with Google Assistant

No

Compatible with Amazon Alexa

No

Metallic colour

No

Socket outlets phase-separated

No

Anti-bacterial treatment

No

Country of origin

Poland

HS Code

8536.69

• EAN 7332418017329
• SAP 1000664348
• Code 8503758
