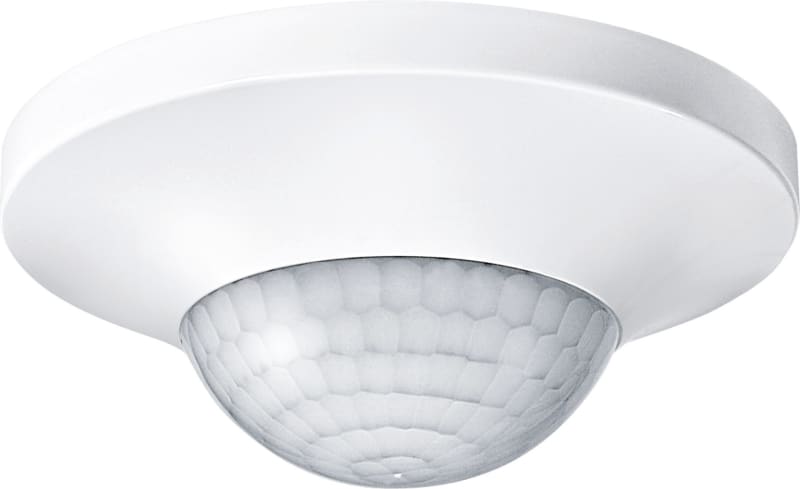

Schneider Electric SpaceLogic KNX ARGUS Presence Detector 360, Polar White

Schneider Electric MTN630819 is a SpaceLogic KNX ARGUS flush-mounted presence detector with a 360° horizontal detection field and 7 m lateral reach at a 2.5 m mounting height. Five channels are configurable over the KNX bus for lighting, HVAC and scene control with adjustable light sensitivity and switch-on delay. Creep-zone protection widens near-field coverage under the sensor, and the IP20 housing suits ceiling mounting in dry indoor spaces. Typical applications include occupancy-based lighting in offices, corridors, sanitary rooms and meeting spaces within a KNX installation.

Manufacturer part number (MPN)

MTN630819

EAN / GTIN

3606485099781

Sales unit

pcs

Package quantity

6 pcs

Range

SpaceLogic KNX

Product or component type

Presence detector

Bus type

KNX

Colour tint

Polar white

Power supply input current

10 mA

Device presentation

Complete product

Number of channels

5

Protection type

Creep zone protection

Type of setting

Light sensitivity adjustable

Duty cycle

15300 minutes

Time delay range

0...1 s (switch-on)

Detection face

Lateral: 7 m

Detection angle

360° horizontal

Device mounting

Flush

Mounting height

2.5 m

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.100 cm

Package 1 Width

14.400 cm

Package 1 Length

18.000 cm

Package 1 Weight

186.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

6

Package 2 Height

20.100 cm

Package 2 Width

30.500 cm

Package 2 Length

40.500 cm

Package 2 Weight

1.482 kg

Country of origin

LV

Warranty (in months)

18

Other bus systems

None

Model

Presence detector

Mounting method

Flush-mounted

Material

Plastic

Material quality

Thermoplastic

Surface protection

Untreated

Surface finishing

Glossy

Colour

White

RAL-number (similar)

9010

Optimum mounting height

2.5 m

Max. reach sideways

7 m

Max. reach frontally

7 m

Diameter reach on floor

14 m

Min. switch-on time

1 s

Max. duty cycle

15300 min

HS Code

8536.50

• EAN 3606485099781
• SAP 1000503257
• Code 8881565
