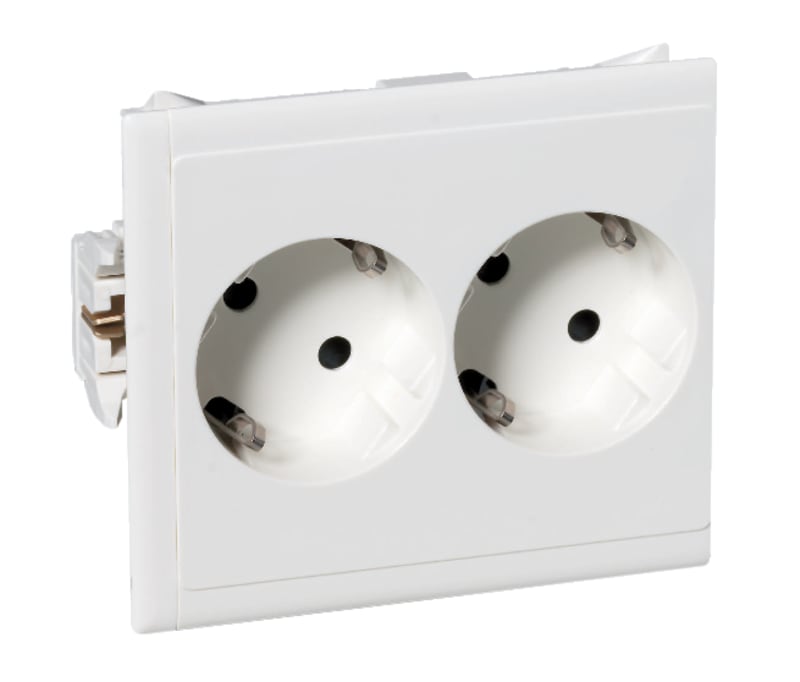

CYB Slave Outlet 2-Way, Socket
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric 5940010 CYB slave outlet 2-way, socket.
Technical Specifications
- Manufacturer part number (MPN)
- 5940010
- EAN / GTIN
- 7315885940017
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Nominal current
- 16 A
- Nominal voltage
- 250 V
- Mounting method
- Wall duct
- Assembly arrangement
- Basic element with complete housing
- Colour
- White
- Model
- Socket outlet with protective contact CEE 7/3 (type F)
- Halogen free
- Yes
- Cover
- Complete housing
- Number of units
- 2
- Lockable
- No
- With hinged lid
- No
- Connection type
- Blade terminal
- Surface protection
- Metallic
- With signal lamp
- No
- Number of socket outlets
- 2
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- Yes
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- None
- Insulated mounting
- Yes
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- RAL-number (similar)
- 9016
- Impact strength
- IK05
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Matt
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP20
- Phase pickup
- None
- Device width
- 94 mm
- Device height
- 84 mm
- Device depth
- 39 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- IFTTT support available
- No
- Number of active contacts (round)
- 4
- Protective earth pin round
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- No
- Number of loop throughs
- 2
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 7315885940017
- SAP 1000009100
- Code 871170
