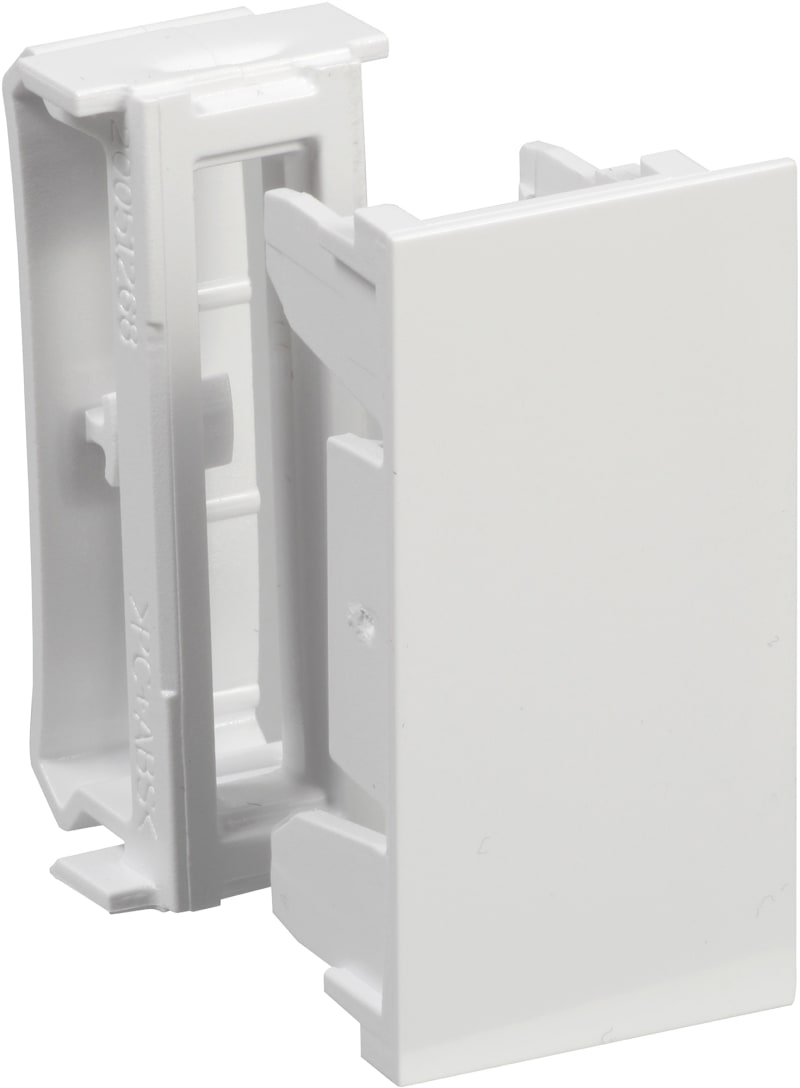

Schneider Electric OptiLine 45 Front Locking Clip, Polar White
Pricing
Request a quote
We reply within 24 hours
Product Description
Front locking clip in polar white (RAL 9003) PC/ABS for the Schneider OptiLine 45 trunking, pole and post cabling systems. Snap-fits over the front cover to lock the section in place across the range of aluminium and plastic profiles from 75 x 55 mm to 185 x 55 mm. Rated IP40 and IK07 for indoor commercial installations at -25 to 60 degrees Celsius; supplied in sets of ten.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10909P
- EAN / GTIN
- 3606489604141
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Cabling installation system
- Pole; Post; Trunking
- Product or component type
- Locking clip
- Type of pole
- Two-sided; One-sided
- Type of post
- Two-sided; One-sided
- Colour tint
- Polar white (RAL 9003)
- Quantity per set
- Set of 10
- Trunking material
- Plastic; Aluminium
- Trunking dimension
- 75 x 55 mm; 95 x 55 mm; 185 x 55 mm; 165 x 55 mm; 140 x 55 mm
- Pole/post surface finish
- Anodized; Powder coated
- Pole fixing mode
- Free-standing; Tension-mounted
- fixing mode
- Snap-fitted
- Material
- PC/ABS
- Length
- 23 mm
- Height
- 45 mm
- Width
- 23 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-2-1:2002; NF C 68-102
- Ambient air temperature for operation
- -25…60 °C
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 400
- Warranty (in months)
- 18
- Accessory
- Yes
- Spare part
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 3606489604141
- SAP 1200557538
- Code 82906351
Product Documentation
