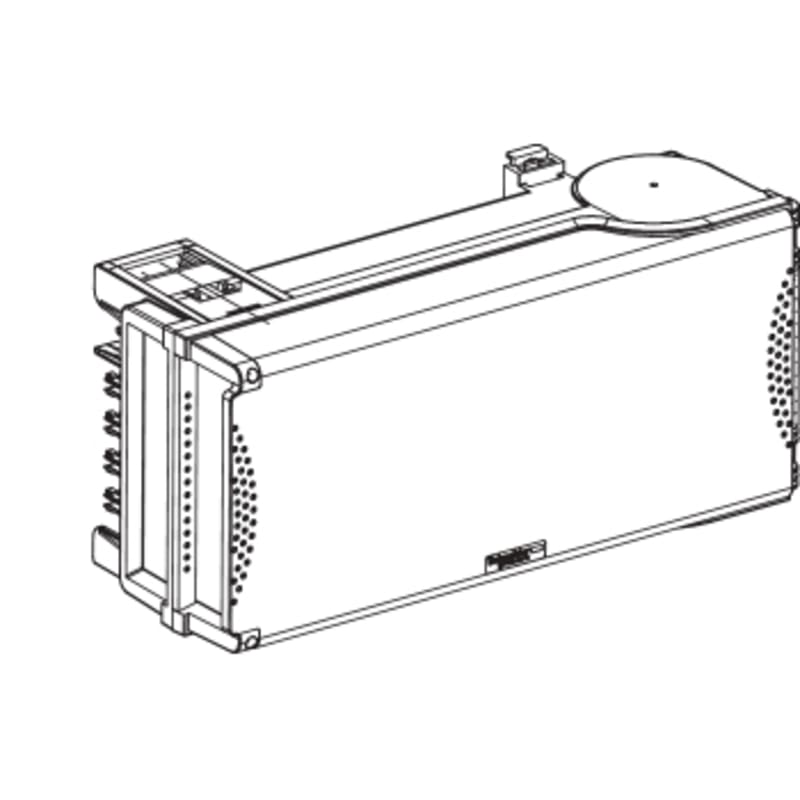

BOX 63A 3L+N Diazed E33
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KSB63SD4 Box 63A 3L+N Diazed E33.
Technical Specifications
- Manufacturer part number (MPN)
- KSB63SD4
- EAN / GTIN
- 3606480006111
- Sales unit
- pcs
- Package quantity
- 25 pcs
- Rated current
- 63 A
- Range of product
- Canalis
- Range compatibility
- Canalis KT busbar trunking; Canalis KS busbar trunking
- Product or component type
- Tap-off unit
- busbar trunking compatibility
- Canalis KS busbar trunkingplug-in; Canalis KT busbar trunking with KS type plug-in
- [Ie] rated operational current
- 63 A at 35 °C
- protection type
- fuse insulator: Diazed fuse, size E33 conforming to DIN
- Provided equipment
- fuse to be ordered separately
- Mounting mode
- Plug-in with fixed polarity
- Tap-off unit polarity
- 3L+N+PE
- Colour
- White (RAL 9001)
- Device application
- Medium power distribution
- [Ue] rated operational voltage
- 230...690 V depending on protective device
- [Uimp] rated impulse withstand voltage
- 6.8 kV
- [Ui] rated insulation voltage
- 500 V depending on protective device
- Network frequency
- 50/60 Hz
- Electrical connection
- Cable clamp terminal - ISO63 25 mm² flexible; Cable clamp terminal - ISO63 25 mm² rigid
- door/cover opening side
- Right
- Tap-off unit disconnection mode
- By opening the door
- Standards
- IEC 61439-1; IEC 61439-6
- Body material
- Plastic
- Width
- 44 mm
- Depth
- 128 mm
- depth (door open)
- 545.5 mm
- Height
- 202 mm
- Product weight
- 2.4 kg
- Earthing system
- TT; TN-S; IT
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 25
- Country of origin
- IT
- Warranty (in months)
- 18
- RAL-number
- 9001
- With locking
- No
- Protection
- None
- Number of conductors (without earthing)
- 4
- Phase selection
- No
- Number of poles
- 5
- Length
- 44 mm
- Degree of protection (IP)
- IP55
- Branch off type
- Pipe in-lead
- Rated current AC 50 Hz
- 63 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480006111
- SAP 1000470849
- Code 8580409
Product Documentation
