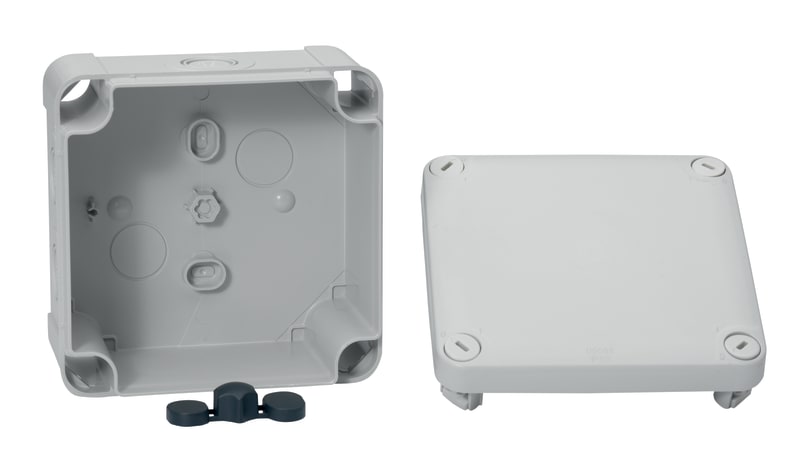

Schneider Electric Mureva BOX - junction box - knock-out 7XM16/20 - 105X105X55 mm ENN05085
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ENN05085 Junction box, Mureva, skrulokk, 7 Knock-outs, wall-mounted, IP55, 105x105x55, Grey.
Technical Specifications
- Manufacturer part number (MPN)
- ENN05085
- EAN / GTIN
- 3295150050853
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Dimensions
- 105×105×55
- product range
- Mureva BOX
- product type
- Junction box
- quantity per package
- 5 pieces
- Main colour tint
- Grey
- Mounting
- Surface
- cable entry
- Knock-out
- Fixing mode
- Screw-fixed: cover
- Inner dimensions
- 105 x 105 x 55 mm
- number of cable entries
- 7 x M16/20
- Material
- PP (polypropylene): body and cover
- Electrical insulation class
- Class II conforming to IEC 536
- Height
- 61 mm
- Width
- 116 mm
- Depth
- 74 mm
- Product weight
- 0.136 kg
- Colour tint
- Grey (RAL 7035)
- operating temperature
- -25…40 °C
- IP-Class
- IP55 conforming to IEC 60529
- IK-Class
- IK07 conforming to EN 50102
- glow wire temperature
- 750 °C
- Standards
- EN 60670; CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 60
- Warranty (in months)
- 18
- Model
- Junction box
- RAL-number (similar)
- 7035
- Max. conductor cross section
- 20 mm²
- Equipped with
- None
- Shape
- Square
- Mounting method
- Wall-/ceiling mounting
- For tube diameter
- 20 mm
- Length
- 115 mm
- Number of inlets
- 7
- Type of housing feed-through
- Preembossing
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP55
- Cover model
- Blind cover
- Cover attachment
- Screwed
- Circuit integrity
- None
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3295150050853
- SAP 1200058147
- Code 81899925
