Komponentklemme with diode 1N4007
Pricing
Request a quote
We reply within 24 hours
Product Description

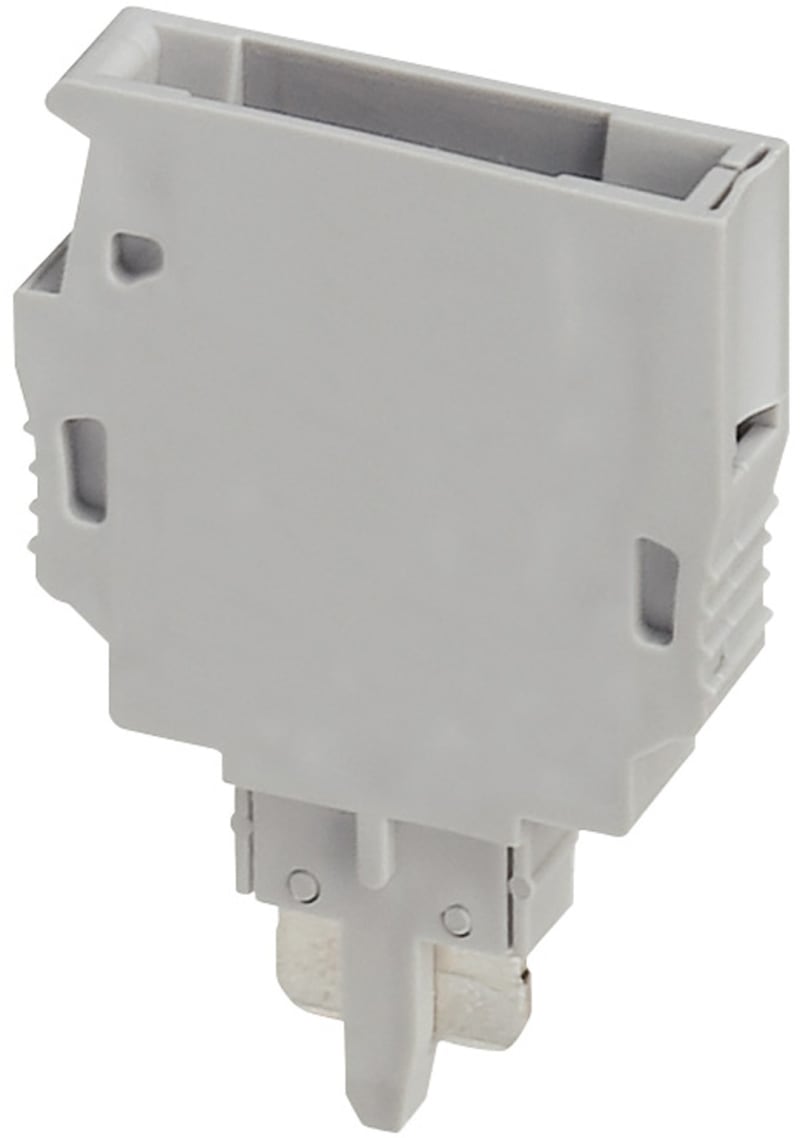

Schneider Electric NSYTRASV2 Komponentklemme with diode 1N4007.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTRASV2
- EAN / GTIN
- 3606480534478
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range
- Linergy
- Product name
- TR
- Product or component type
- Component carrier
- Device short name
- TRA
- Accessory / separate part category
- Connection accessory
- Product compatibility
- TRV screw terminal - removable carrier disconnect terminal block; TRR spring terminal - removable carrier disconnect terminal block; TRP push-in - removable carrier disconnect terminal block
- Length
- 24 mm
- thickness
- 5.2 mm
- Cable cross section
- 2.5 mm²; 4 mm²
- number of connections
- 1; 2
- Number of terminals
- 2; 3
- Number of measurement input
- 0; 1
- mounting mode
- Plug-in
- Quantity per set
- Set of 10
- Product weight
- 3.75 g
- Colour
- Grey
- Provided equipment
- diode 1N4007
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.6 cm
- Package 1 Width
- 2.5 cm
- Package 1 Length
- 3.5 cm
- Package 1 Weight
- 3 g
- Unit Type of Package 2
- BAG
- Number of Units in Package 2
- 10
- Package 2 Height
- 1.3 cm
- Package 2 Width
- 7 cm
- Package 2 Length
- 10 cm
- Package 2 Weight
- 38 g
- Unit Type of Package 3
- S01
- Number of Units in Package 3
- 400
- Package 3 Height
- 15 cm
- Package 3 Width
- 15 cm
- Package 3 Length
- 40 cm
- Package 3 Weight
- 1.743 kg
- Warranty (in months)
- 18
- Mounting method
- Pluggable
- Width/grid dimension
- 5.2 mm
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3606480534478
- SAP 1000402355
- Code 81069721
Product Documentation
More from Schneider Electric
Schneider Electric
Silicone Cap for Triple TR.KNAP
ZBA709
Schneider Electric
Schneider Electric Door Lock with 2 Keys, 405 IP55, PrismaSeT G
LVS08936
Schneider Electric
Schneider Electric Harmony XAC Pendant Station, 2 Buttons + E-Stop, 3 kW
XACB3201
Schneider Electric
Schneider Electric Miniature plug-in relay, 10 A, 3 CO, LED, 24 V AC RXM3AB2B7
Schneider Electric
Schneider Electric Add-on residual current device, ACTI9 Vigi C120, 3P, 125A, A type, instantaneous, 300MA, 230...415VAC A9N18576
Schneider Electric
Schneider Electric Earth-leakage VigiPacT add-on protection module, ComPacT NSX 400/630, 200VAC to 440VAC, 30MA to 30A, 4 poles LV432465
Schneider Electric
Cover / Mounting Plate for Instruments and Sockets 210 × 150 mm, PrismaSeT G, IP55
LVS08861
Schneider Electric
Schneider Electric three-Phase Asymmetry control relay 200…240VAC, 2 C/O RM22TA31
Technical guides
Catalogue entry last verified: 2026-09-30. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYTRASV2?
- NSYTRASV2 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYTRASV2.
- What is the HS code for NSYTRASV2?
- The customs tariff (HS) code for NSYTRASV2 is 8536.69.
- Who manufactures NSYTRASV2?
- NSYTRASV2 is a Schneider Electric product in the SC002018 range.
- Is a datasheet available for NSYTRASV2?
- Yes — the NSYTRASV2 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYTRASV2?
- The minimum order quantity is 1.
- Is NSYTRASV2 available?
- Yes — NSYTRASV2 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
