Jumper link 2 pole for 35mm² - red
Pricing
Request a quote
We reply within 24 hours
Product Description

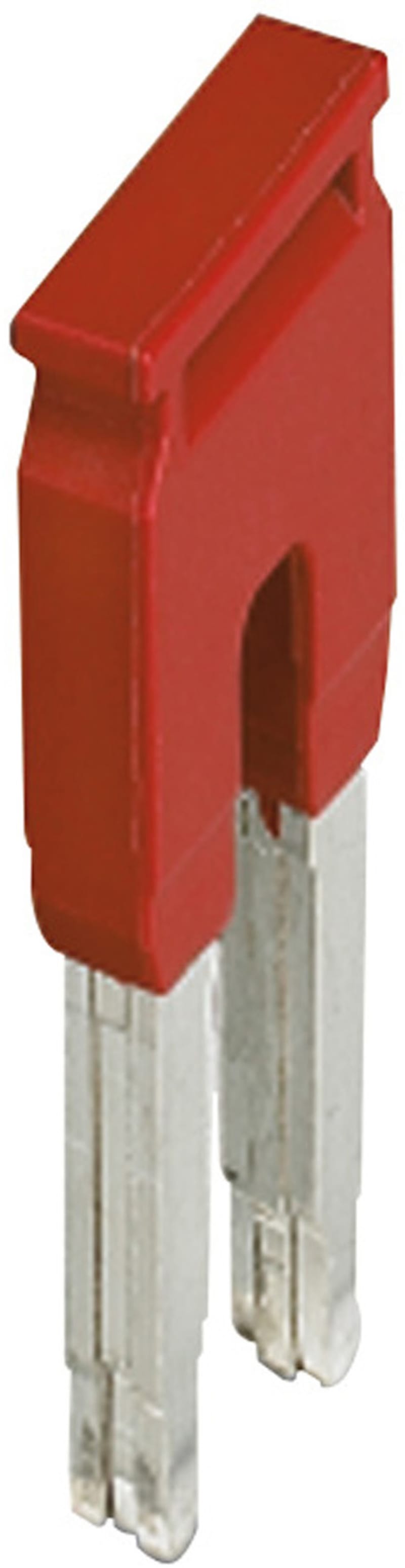

Schneider Electric NSYTRAL352 Jumper link 2 pole for 35mm² - red.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTRAL352
- EAN / GTIN
- 3606480534287
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Number of poles
- 2P
- Conductor cross-section
- 35 mm²
- Range
- Linergy
- Product name
- Linergy TR
- Product or component type
- Plug-in bridge
- Device short name
- TRA
- Accessory / separate part category
- Connection accessory
- Product compatibility
- TRV screw terminal terminal block; TRP push-in terminal block; TRR spring terminal terminal block
- Number of ways
- 2 ways
- Cable cross section
- 35 mm²
- number of connections
- 2
- Number of measurement input
- 2; 3; 6; 4; 1
- Quantity per set
- Set of 10
- Product weight
- 19.4 g
- Colour
- Red
- Country of origin
- PL
- Warranty (in months)
- 18
- Mounting method
- Pluggable
- Model
- Push-in type jumper bar
- Insulated
- Yes
- Modular spacing
- 16 mm
- Number of bridged clamps
- 2
- With contact protection
- Yes
- Rated current In
- 150 A
- Explosion-tested version 'Ex e'
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480534287
- SAP 1000402309
- Code 81113458
Product Documentation
