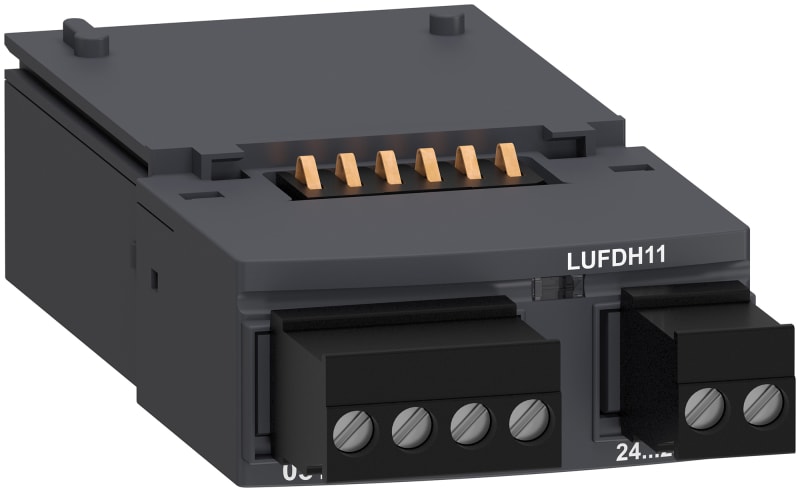

Schneider Electric function module - thermal overload signalling - 1 NO + 1 NC - forTeSys U LUFDH11

Module for TeSys U for detecting tripping due to thermal overload. 1 NO + 1 NC.

Manufacturer part number (MPN)

LUFDH11

EAN / GTIN

3389119200356

Sales unit

pcs

Package quantity

15 pcs

Contact configuration

NO + NC

Range

TeSys

Device short name

LUF

Product or component type

Function module

Product compatibility

LUCC; LUCB; LUCD

mounting mode

Plug-in

Mounting location

Front side

main function available

Thermal overload signalling and manual reset

Auxiliary contact composition

1 NO + 1 NC

Communication of faults

LED front panel

[Us] rated supply voltage

24...240 V DC; 24...240 V AC

Current consumption

7 mA at 24 V DC; 1.1 mA at 240 V AC

Discrete output function

1 NO + 1 NC (AC-15) at 230 V - power: 400 VA - electrical service life: 100000 cycles; 1 NO + 1 NC (DC-13) at 24 V - power: 50 W - electrical service life: 100000 cycles

[Ith] conventional free air thermal current

2 A 70 °C

Short-circuit protection

2 A fuse gG conforming to IEC 60947-5-1

Input type

Remote reset - cable cross section: 0.2…1.5 mm² <500 m - relative impedance: 50 Ohm 52.8 mH - cable capacitance: 0.093 nF

Connection pitch

5.08 mm

Connections - terminals

Screw clamp terminals 2 cable(s) 0.2…1 mm² rigid without cable end; Screw clamp terminals 2 cable(s) 0.25…1 mm² flexible with cable end; Screw clamp terminals 2 cable(s) 0.5…1 mm² flexible with cable end

Tightening torque

0.5…0.6 N.m - with screwdriver 3.5 mm flat

Product weight

0.06 kg

Number of Units in Package 1

1

Number of Units in Package 2

15

Country of origin

FR

Warranty (in months)

18

Type of accessory/spare part

Reset device

Accessory

Yes

Spare part

No

HS Code

8536.20
