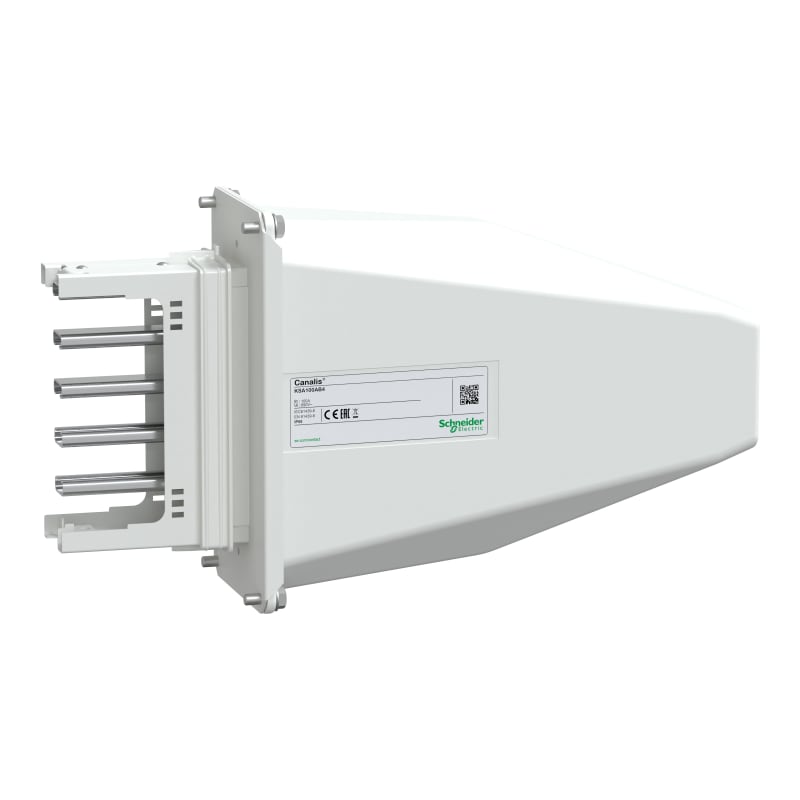

End feed RH/LH 100A (KSA100AB4)

Schneider Electric KSA100AB4 End feed H/V 100A.

Manufacturer part number (MPN)

KSA100AB4

EAN / GTIN

3606480003899

Sales unit

pcs

Rated current

100 A

Range of product

Canalis

Product name

KS

Device short name

KSA

Product compatibility

Canalis KSA busbar trunking 100…250 A

Offer type

Classic; Rising main

Product or component type

Feed unit

Conductors material

Aluminium

[Ie] rated operational current

100 A

[Ue] rated operational voltage

230...690 V

Number of circuits

1

Busbar trunking polarity

3L + N + PE

Protection type

Without protection

Control type

Without

Colour

White (RAL 9001)

Provided equipment

End cover

Mounting location

Right; Left

mounting mode

By screws

Mounting support

Busbar

Body material

Plastic

Connections - terminals

Terminal block for 16 mm² flexible; Terminal block for 16 mm² rigid

Width

390 mm

Depth

112 mm

Height

212 mm

Product weight

1.8 kg

Standards

IEC 61439-1; IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.500 cm

Package 1 Width

22.000 cm

Package 1 Length

39.000 cm

Package 1 Weight

2.015 kg

Unit Type of Package 2

P06

Number of Units in Package 2

30

Package 2 Height

89.500 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

66.565 kg

Country of origin

FR

Warranty (in months)

18

Model

Single

RAL-number

9001

Number of poles

5

Length

390 mm

Degree of protection (IP)

IP55

Power supply position

End

Rated voltage AC 50 Hz

230–690 V

Rated current AC 50 Hz

100 A

HS Code

8536.90

• EAN 3606480003899
• SAP 1000470815
• Code 8932384
